APP BPS Submersible Puddle Pump

APP Pumps offer the BPS series of puddle pumps, a range of cost-effective and trustworthy pumps which are ideally suited to both clean and slightly dirty waters. If you are restricted for space, or need a pump that is suitable for partial immersion situations then the BPS series is the ideal choice. (Please note, the pump can be fully submersed, however will operate in partial immersion.)

The BPS-80 and BPS-100 have specialist 304 stainless steel shafts. The BPS-400 models have superb 410 stainless steel shafts.

Even if there are short periods of dry running, the general construction of the BPS series delivers an excellent resistance to wear. This makes the APP Pumps BPS series ideal as a puddle pump.

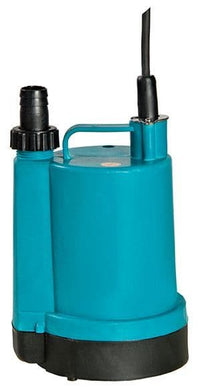

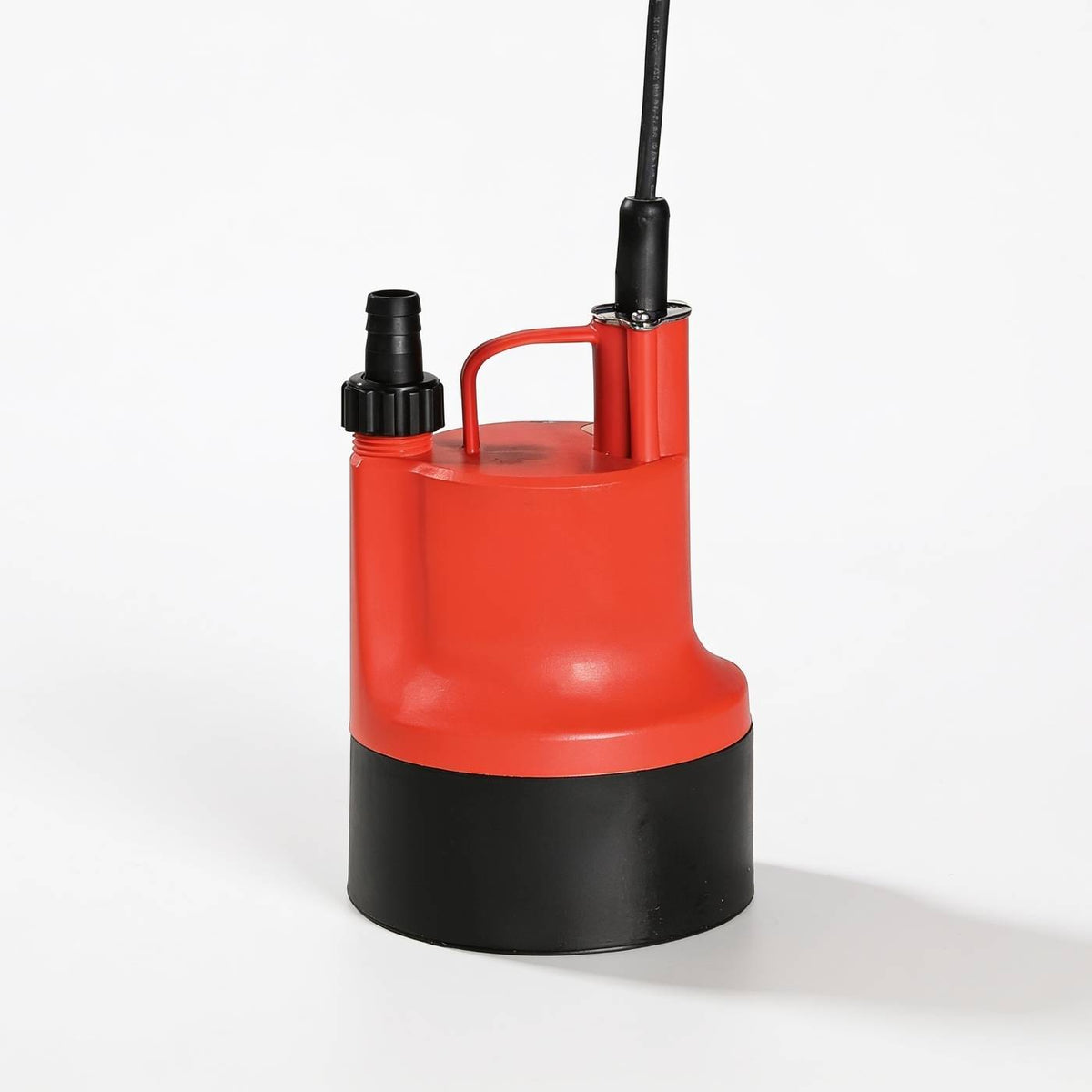

The BPS-80 and BPS-100 are available as manual models and they can pump down to 3mm of water as they are fitted with residue strainers. The BPS-100A (V) is perfect for narrow sumps as it uses a tube type float switch (turning on at 184mm and off at 100mm).

The BPS-400 models offer low level pumping, however not down to 3mm like the BPS-80 &100.

Below is a diagram which compares a manual BPS pump, with automatic BPS pumps (both pendant and tube float switch styles):

If you need an automatic pump for a narrow sump, the BPS100V is preferred as the float switch will not be fouled on the chamber. The pendant float can be trapped in narrow sumps (as shown).

For more information on the different types of float switches, please visit our Automatic Water Pump blog.

Whether the pumps in the BPS series are being used in domestic, industrial or trade applications, they are excellent value for money and superb quality.

It is not recommended to use BPS Pumps in water features or ponds.

What's in the box:

• 1x BPS Pump
• 1x 10m Heavy duty rubber power cable
• 1x Hose tail
