Mizar/s and Arvex/s Submersible Chemical Resistant Water Pumps - 316 Grade Stainless Steel

Mizar 60/S & Arvex 150/S – 316 Stainless Steel Submersible Pumps

The Mizar 60/S and Arvex 150/S are heavy-duty submersible pumps manufactured from upgraded 316 stainless steel for superior corrosion and chemical resistance.

Designed for seawater, saltwater, light chemicals, and final effluent, they offer robust performance in demanding industrial environments. The Mizar 60/S handles soft solids up to 10 mm, while the Arvex 150/S manages solids up to 50 mm thanks to its wide-casing design.

Both ranges feature biodegradable lubrication oil for environmental protection.

Solids Handling and Pump Applications

The Mizar 60/S and Arvex 150/S pumps are built from 316-grade (1.4401) pressed stainless steel, offering significantly enhanced chemical and corrosion resistance compared with standard 304 stainless steel. They are suitable for industry, light chemicals, seawater, saltwater, and final effluent applications.

• Mizar 60/S handles soft suspended solids up to 10 mm
• Arvex 150/S handles soft solids up to 50 mm, supported by a wide casing ideal for fibrous waste

Both pumps are appropriate where a higher level of durability, corrosion resistance, and materials quality is required. They are not recommended for ponds or water features.

These models feature upgraded sealing components, including silicon carbide mechanical seals, providing improved resistance to aggressive or lightly corrosive liquids.

Build and Design

Both pump types are constructed for long service life using 316 stainless steel throughout the key components.

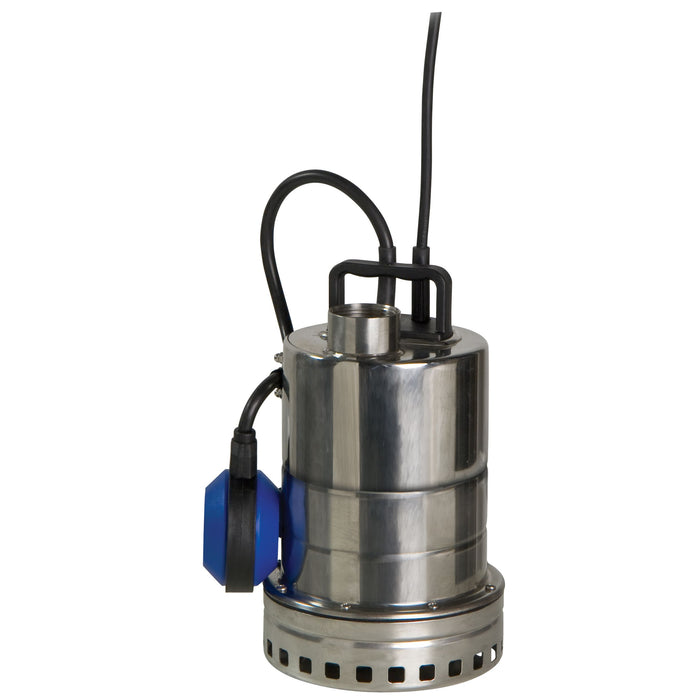

Mizar 60/S Design Features

• Water-cooled top discharge design
• Ideal where installation space is restricted
• Capable of operating partially submerged
• Tolerates short periods of dry running

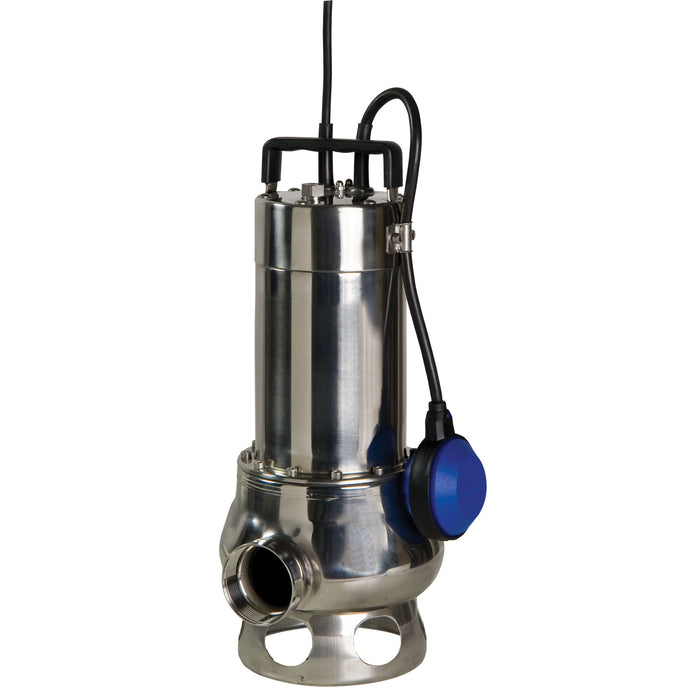

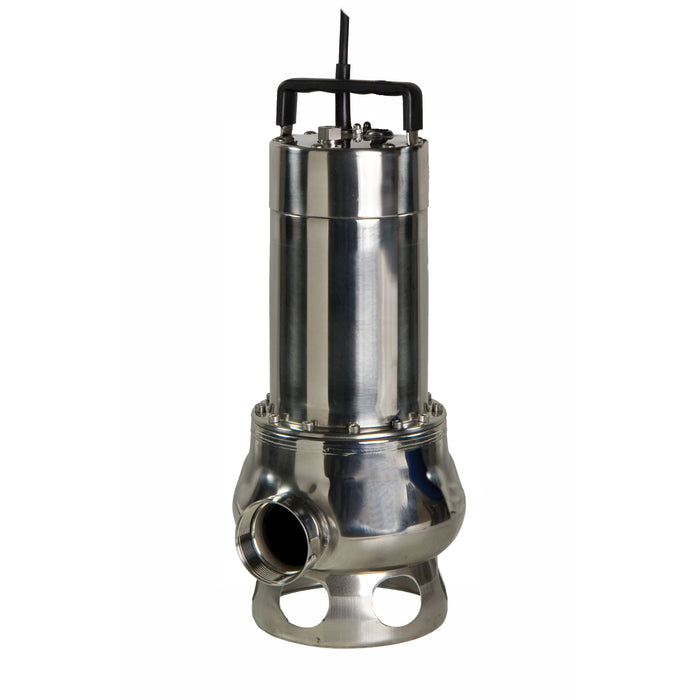

Arvex 150/S Design Features

• Horizontal outlet for improved waste handling
• Wide casing to reduce clogging when pumping fibrous materials and larger solids

Shared Construction Features

• 316 stainless steel pump body
• Silicon carbide mechanical seal
• Viton elastomers for improved chemical compatibility
• Biodegradable vegetable-oil hydraulic fluid for lubrication
• Supplied with 10 m heavy-duty power cable
• Available in manual or automatic (pendant float switch) versions, depending on model
• Suitable for seawater, saltwater, and light chemical applications
• Maximum liquid temperature 35°C (25°C when the Arvex 150/S is partially submerged)

Performance and Specifications

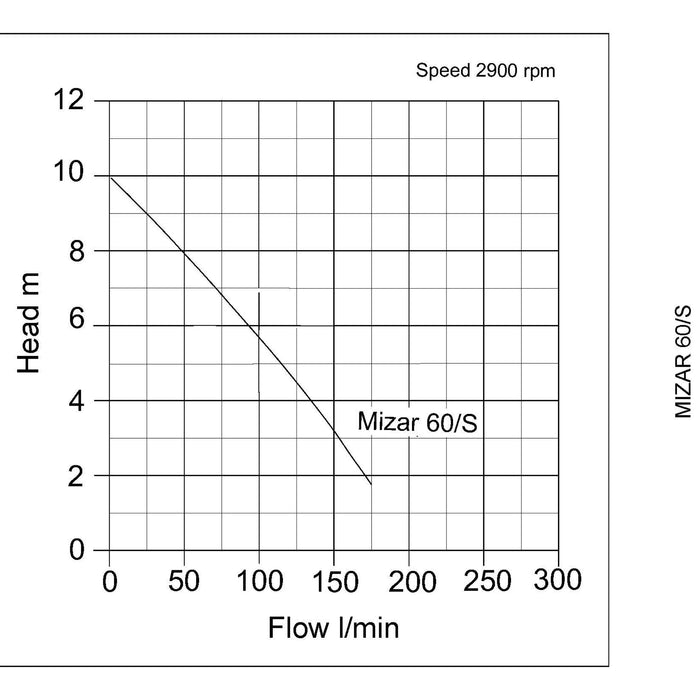

Mizar 60/S

• Construction: 316 stainless steel and Viton Rubber
• Voltage options: 110V or 230V
• Operation: Manual or automatic
• Maximum head: Approx. 10 m
• Solids handling: Up to 10 mm

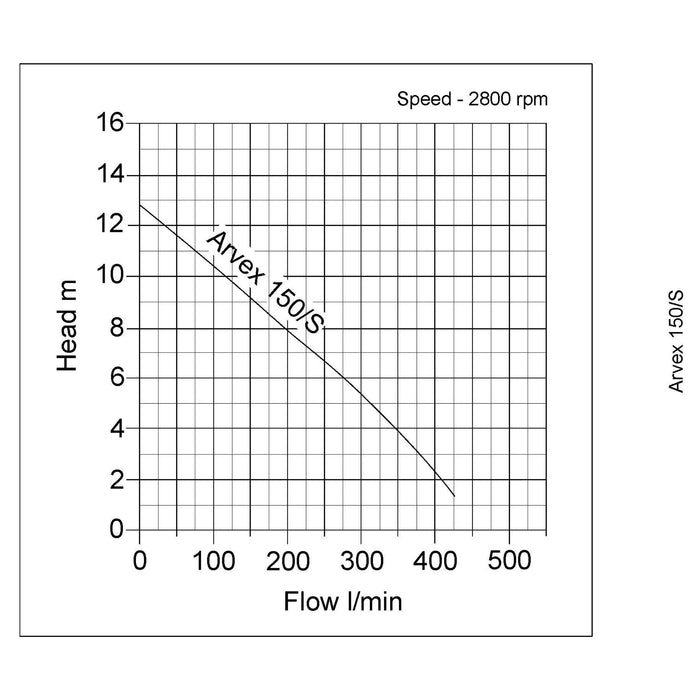

Arvex 150/S

• Construction: 316 stainless steel + Viton Rubber
• Voltage options:
• Manual: 230V or 400V
• Automatic: 230V
• Maximum head: Approx. 13 m
• Max flow rate: Up to 425 L/min
• Solids handling: Up to 50 mm

Important Notes

• Suitable for industrial, chemical, effluent, seawater, and saltwater applications
• Not suitable for ponds or decorative water features
• Designed for installations requiring high corrosion resistance
• Mizar models are suited to restricted-space applications
• Arvex models are ideal where larger solids or fibrous material are expected
• Covered by a 1-year warranty

What’s in the Box?

• ✅ 1 × Mizar 60/S or Arvex 150/S Pump
• ✅ 10 m heavy-duty power cable
• ✅ Hose tail
