Engine Driven Pumps

Engine driven pumps usually have the highest water flow rates for pumps. This means they are great for draining large areas or moving high volumes of water. Engine Driven pumps are perfect for use in remote areas or where an electric power source is not available.

Engine driven pumps can also be used in conjunction with temporary flood barriers such as the Water-Gate barrier (where the end location for use is not known) to manage seepage, rainwater, or groundwater. It is advisable to have an engine driven pump as a spare with all flood defence schemes, in case of a power outage.

Where Engine Pumps are Used

Engine driven pumps are mainly used when there is no mains power supply available, so a standard ‘plug in’ pump cannot be used, or where a submersible pump is not suitable.

These pumps are very common on construction sites and mobile utility fleets where they can be used in any situation and location.

They are very popular in agricultural environments as they can be mounted on the back of tractors or machinery and used for the irrigation of crops and watering for livestock.

Again, as these are portable and do not have to be submerged in water they are used in the marine industry.

What They are Used For

Engine driven pumps get their power from their own inbuilt engine i.e. Honda or Subaru-Robin engines. These can be both petrol or diesel. LPG conversion kits are available on certain models. We supply a variety of pumps that are all different powers, output, flow rates and solids handling.

It is very important whether you are pumping salt water, chemicals, trash or sludge that the right pump is selected as it will be made from the correct components to protect from corrosion. Some pumps are lightweight and designed to work only with water, while others are more durable and able to pump heavy mud and sludge. In cases where the pumped liquid may contain aggressive chemicals, such as agricultural chemicals or sea water, it is important to select a pump which will not corrode in these conditions. Some engine driven pumps are constructed from materials such as glass reinforced polyester, stainless steel and EPDM rubber components, which are specially-designed to resist chemical wear.

Transporting

The size of engine pumps varies. Depending on the model, some are available with a protective tubular steel easy carry frame with anti-vibration mounts fitted.

Pump weights can vary, the lightest is the TEM-25H which only weighs 5kg and has a carry handle fitted as you can see in the image on the left below.

You can see in the image below right, the TED-100RD which weighs 97kg. This has an optional trolley available.

Engine Driven Pumps

TEM-25H with carry handle                                                                             TED-100RD with optional trolley

Solids Handling

Engine pumps are different from submersible pumps. Submersible pumps have a built-in solids filter. An engine pump’s filter is attached to the suction pipe. Engine pumps still have a limit on the size of solids they can handle, however if you were transferring the water to something which needs to be solids free, in then you can simply change the filter to one with smaller holes to stop any stones or grit etc. getting through.

Suction hose filter:
Engine Pump Filter

Filters

£
£
  • From
    Original price £544.90 - Original price £616.40
    Original price
    £544.90 £653.88
    £544.90 - £616.40
    Current price £544.90 £653.88 £653.88

    Tsurumi TDS Petrol Trash Pump

    • Available in petrol engines
    • Flow rates up to 2000ltr min
    • Self-priming centrifugal pumps
    Tsurumi Pumps

    The TDS range of pumps from TSURUMI is engine-driven pumps, available in either petrol or diesel-fuelled options. This range of pumps is ideally su...

    View full details
    From
    Original price £544.90 - Original price £616.40
    Original price
    £544.90 £653.88
    £544.90 - £616.40
    Current price £544.90 £653.88 £653.88
  • From
    Original price £317.50 - Original price £1,178.90
    Original price
    £317.50 £381.00
    £317.50 - £1,178.90
    Current price £317.50 £381.00 £381.00

    Tsurumi TE Petrol Site Pump

    • Self-priming petrol centrifugal pump
    • Powered by Honda 4 stroke petrol engine
    • Abrasion resistant
    Tsurumi Pumps

    surumi Pump present the TE series of engine driven, petrol pumps which are ideal for site water pumping through a centrifugal pump. The TE pumps ar...

    View full details
    From
    Original price £317.50 - Original price £1,178.90
    Original price
    £317.50 £381.00
    £317.50 - £1,178.90
    Current price £317.50 £381.00 £381.00
  • From
    Original price £1,551.34 - Original price £1,756.46
    Original price
    £1,551.34 £1,861.61
    £1,551.34 - £1,756.46
    Current price £1,551.34 £1,861.61 £1,861.61

    Tsurumi TD Petrol Diaphragm Trash Pump

    • Suitable for trash, sand, silts and solids up to 30mm
    • OHV Honda petrol powered automatic priming diaphragm pump
    • Can run dry for short periods
    Tsurumi Pumps

    TSURUMI pumps present their TD series, a range of engine driven, petrol powered, diaphragm pumps. The TD pumps are typically found in applications ...

    View full details
    From
    Original price £1,551.34 - Original price £1,756.46
    Original price
    £1,551.34 £1,861.61
    £1,551.34 - £1,756.46
    Current price £1,551.34 £1,861.61 £1,861.61
  • From
    Original price £200.00 - Original price £2,575.00
    Original price
    £200.00 £240.00
    £200.00 - £2,575.00
    Current price £200.00 £240.00 £240.00

    Poly Petrol or Diesel Chemical Seawater Pump

    • Suitable for sea water, agricultural, chemicals and diesel transfer
    • Self priming centrifugal pump
    • Corrosion resistant
    Tsurumi Pumps

    The Poly series of centrifugal pumps has been purpose built to aid the transfer of aggressive but non-abrasive liquids such as chemical and sea-wat...

    View full details
    From
    Original price £200.00 - Original price £2,575.00
    Original price
    £200.00 £240.00
    £200.00 - £2,575.00
    Current price £200.00 £240.00 £240.00
  • From
    Original price £222.46 - Original price £2,024.70
    Original price
    £222.46 £266.95
    £222.46 - £2,024.70
    Current price £222.46 £266.95 £266.95

    Tsurumi TEF TEW Petrol High Pressure Pump

    • Honda OHV petrol engine
    • High pressure water pump
    • Can be used for firefighting, agriculture and waste dust suppression
    Tsurumi Pumps

    TSURUMI are the manufacturers of the TES.TEW engine driven series of pumps. Fuelled by petrol, these are high head pumps that are powered by OHV Ho...

    View full details
    From
    Original price £222.46 - Original price £2,024.70
    Original price
    £222.46 £266.95
    £222.46 - £2,024.70
    Current price £222.46 £266.95 £266.95
  • From
    Original price £4,552.60 - Original price £5,058.76
    Original price
    £4,552.60 £5,463.12
    £4,552.60 - £5,058.76
    Current price £4,552.60 £5,463.12 £5,463.12

    DryMax Diesel Trash Pump

    • Automatic priming diaphragm pump
    • Perfect for pumping site sludge, mud, sewage, sand and solids up to 40mm
    • Can run dry indefinitely
    Tsurumi Pumps

    The engine driven Drymax pump is an auto-priming, diesel fuelled diaphragm pump. They are suitable in hire fleets, utilities, drainage, submerged l...

    View full details
    From
    Original price £4,552.60 - Original price £5,058.76
    Original price
    £4,552.60 £5,463.12
    £4,552.60 - £5,058.76
    Current price £4,552.60 £5,463.12 £5,463.12
  • From
    Original price £392.00 - Original price £514.50
    Original price
    £392.00 £470.40
    £392.00 - £514.50
    Current price £392.00 £470.40 £470.40

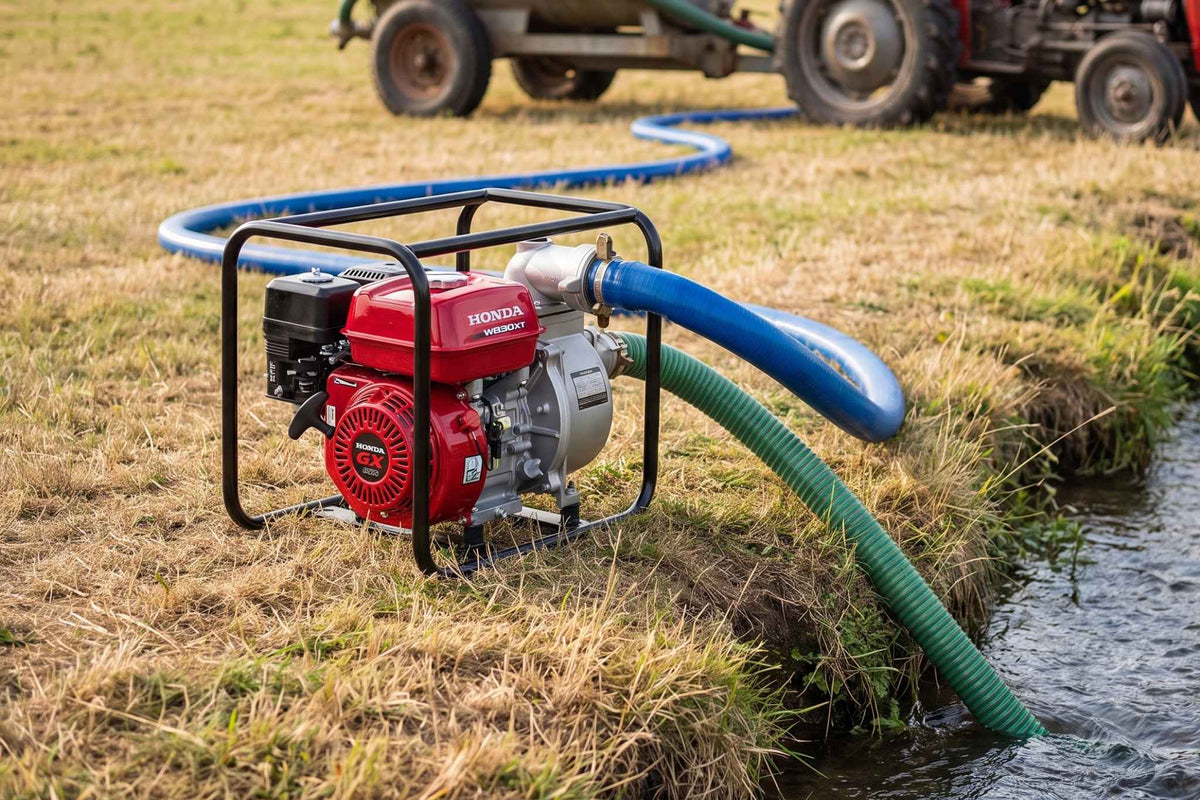

    Honda WX WB Petrol Site Water Pumps

    • Powered by Honda 4 stroke petrol engine
    • Self-priming centrifugal pumps
    • Popular with hire, utility and water companies
    Tsurumi Pumps

    Both the WX and WB Pumps are powered by Honda 4-stroke petrol engines and are part of the Honda Power Equipment pump range. These are engine driven...

    View full details
    From
    Original price £392.00 - Original price £514.50
    Original price
    £392.00 £470.40
    £392.00 - £514.50
    Current price £392.00 £470.40 £470.40
