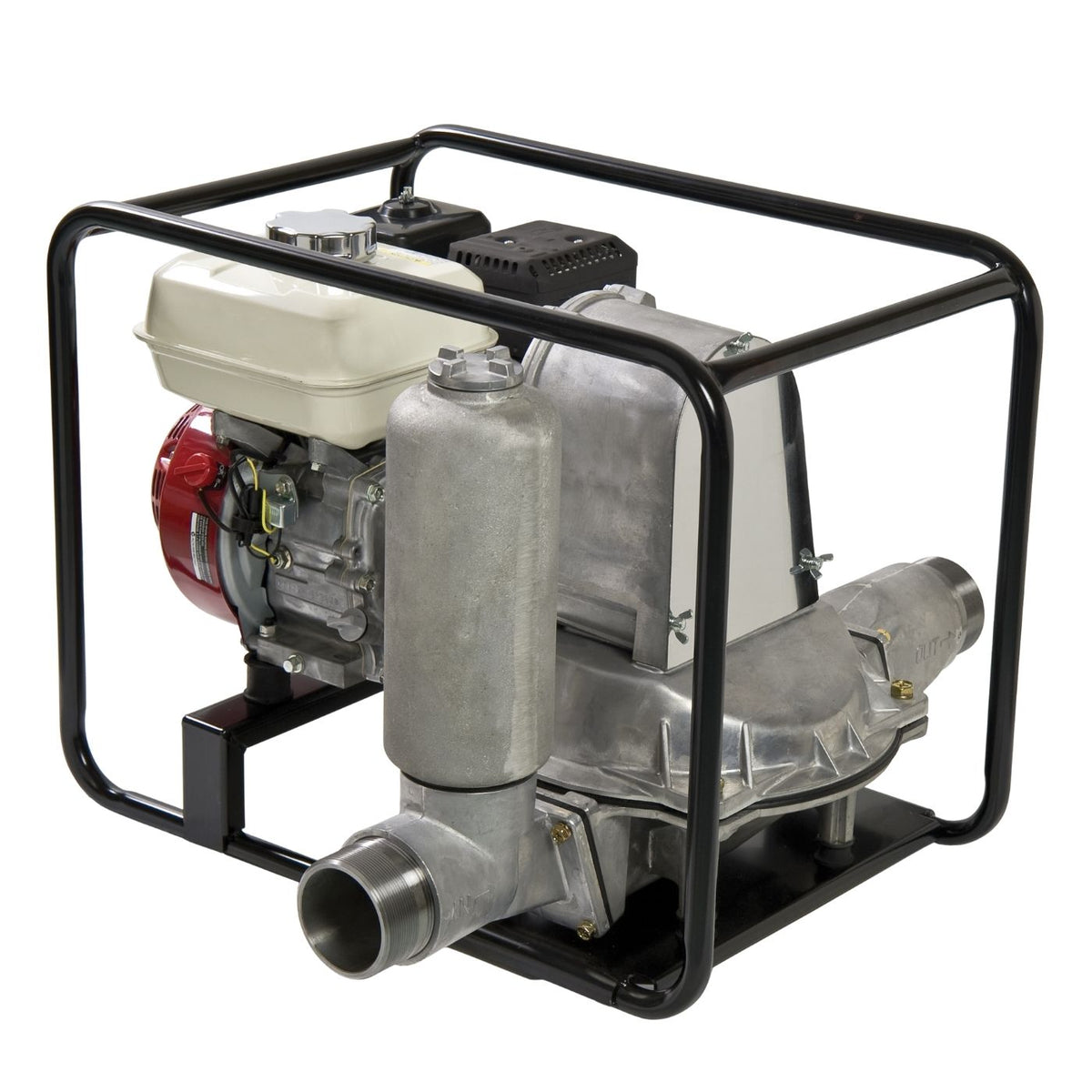

Tsurumi TD Petrol Diaphragm Trash Pump
Built for the job
Auto-Priming Petrol Diaphragm Pump for Solids, Sand, Silt and Site Drainage
The Tsurumi TD is a range of engine-driven, auto-priming petrol diaphragm pumps built for site drainage and waste removal. Powered by a Honda OHV petrol engine with oil alert, the pump handles water containing sand, solids up to 30mm and silt. The pump casing, inlet and outlet ports and surge-reducing chamber are all heavy-duty construction. Valves and diaphragm are designed for straightforward on-site replacement.
What is the Tsurumi TD used for?
• Site drainage and construction dewatering without mains power
• Utilities and in-water works
• Hire fleet applications
• Drainage of solids-laden and silt-carrying water
• Waste removal and submerged litter pumping
Construction and Durability
All models come with a steel carry frame fitted with rubber anti-vibration mounts. The pump casings, inlet and outlet ports, and surge chambers are heavy-duty. The Honda OHV petrol engine includes oil alert, which shuts the engine down if oil pressure drops, protecting it from damage. The diaphragm and valves are accessible and designed for on-site replacement without specialist tools. Solids handling up to 30mm. Suction lift maximum: 8 metres.
Why choose the Tsurumi TD?
The TD combines auto-priming capability with diesel-free petrol operation and the ability to handle 30mm solids, sand and silt that would block standard centrifugal pumps. The steel carry frame with rubber anti-vibration mounts makes it practical for transport and site use. The replaceable diaphragm and valves keep long-term maintenance costs predictable. Available as the TD200, with optional site trolley and 50mm quick-release coupling kit for faster connection and additional site portability.
Operational Details
• Engine: Honda OHV petrol with oil alert
• Solids handling: up to 30mm; sand and silt
• Maximum suction lift: 8 metres
• Frame: steel with rubber anti-vibration mounts
• Available as: TD200, TD200 with site trolley, TD200 with quick-release 50mm couplings, TD200 with site trolley and quick-release couplings
What's in the box
• Tsurumi TD200 petrol diaphragm pump
• Couplings
• Suction strainer
Full spec sheet
| Model | TD200 | TD300 |
|---|---|---|
| Inlet/ mm | 50 | 80 |
| Outlet/ mm | 50 | 80 |
| Engine | GX120 | GX160 |
| Fuel | Petrol | Petrol |
| Oil Alert | Yes | Yes |
| HP | 4 | 5.5 |
| Flow ltr/min | 120 | 240 |
| Head /m | 17 | 18 |
| Free Passage | 30 | 30 |
| W x L x H /mm | 610 x 620 x 510 | 740 x 660 x 510 |
| Weight /Kg | 39 | 46 |

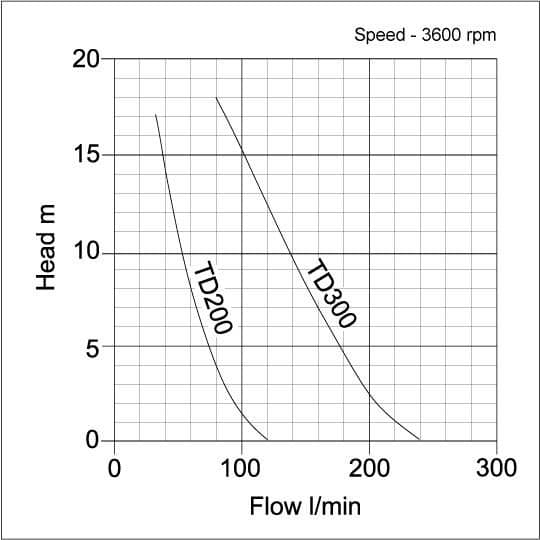

Flow through hose
Litres per minute with a 2 m lift, through layflat hose. A guide for comparison.
Tsurumi TD200
