Hose Tails, Connectors & Clips
Connect hoses to pumps, pipework or each other with the right fitting for the job. Our range covers BSP hose tails in brass, polypropylene and nylon, cam lock couplings (parts A, C, D and E), quick release fittings, lever lock couplings and blanking caps. Sizes from 1/2 inch to 4 inch, suitable for water, and a range of industrial fluids.
Polypropylene Elbow Hose Tail with Female BSP Swivel
Hose Clamps for Layflat & Suction Hose | 25mm to 150mm
Quick Release Pump Hose Connector Set, Join Two Hoses
- Extend a pump discharge hose with another length
- Quickly split down long hose runs for storage or transport
- Swap between different lengths of hose
- Ideal for flood pumps, site pumps and dewatering
- Available in 1 inch, 2 inch, 3 inch and 4 inch hose sizes (25mm, 50mm, 75mm and 100mm)
Camlock Coupling Part C, Hose Tail | 25mm to 100mm
- Extending a discharge run, click on another length of layflat hose instead of building a new joint
- Joining rigid suction and delivery hose to layflat on the delivery side
- Site pumping where the pump is moved repeatedly through a shift
- Hire fleets and pump kits, where hoses need to be interchangeable
- Tanker and IBC transfer
Camlock Adaptor Part E, Hose Tail | 25mm to 100mm
- Male cam adaptor with hose tail, the half that clicks into a Part C
- Pairs with a Part C for hose to hose, or a Part D on a threaded pump outlet
- Four sizes: 25mm (1 inch), 50mm (2 inch), 75mm (3 inch), 100mm (4 inch), sized to hose internal bore
- Fit it to an extension hose to click extra length onto a run you have already made up
Camlock Adaptor Part A, Female BSP | 25mm to 100mm
- Male cam adaptor with a female BSP thread, screws onto a male threaded pump outlet
- Pairs with a Part C on the hose, connecting and releasing by hand with no tools
- No arms, pins or gasket, so it is the simplest and lowest cost way to convert a pump outlet
- Fit it once and leave it, the pump is then ready for any hose in your kit
Lugged Hose Tail with Female BSP Swivel | 13mm to 75mm
Quick Release Coupling with Hose Tail | 13mm to 38mm
Camlock Coupling Part D, Female BSP | 25mm to 100mm
- Female cam coupler with a female BSP thread, screws onto a male threaded pump outlet
- Pairs with a Part E on the hose, so connections are made by hand with no tools
- Available in 25mm (1 inch), 50mm (2 inch), 75mm (3 inch), 100mm (4 inch)
- Keeps the arms and gasket on the pump rather than on hose ends that get dragged about
Quick Release Coupling, Female BSP | 12mm to 38mm
Lever Lock Coupling, Female with Male BSP | 50mm to 150mm
Lever Lock Coupling, Male with Male BSP | 50mm to 150mm
Quick Release Air Hose Coupling, 1 Inch Female BSP
Connecting a pump to a hose.
The fittings that join your pump outlet to a hose, and keep it secure under pressure.
What you need

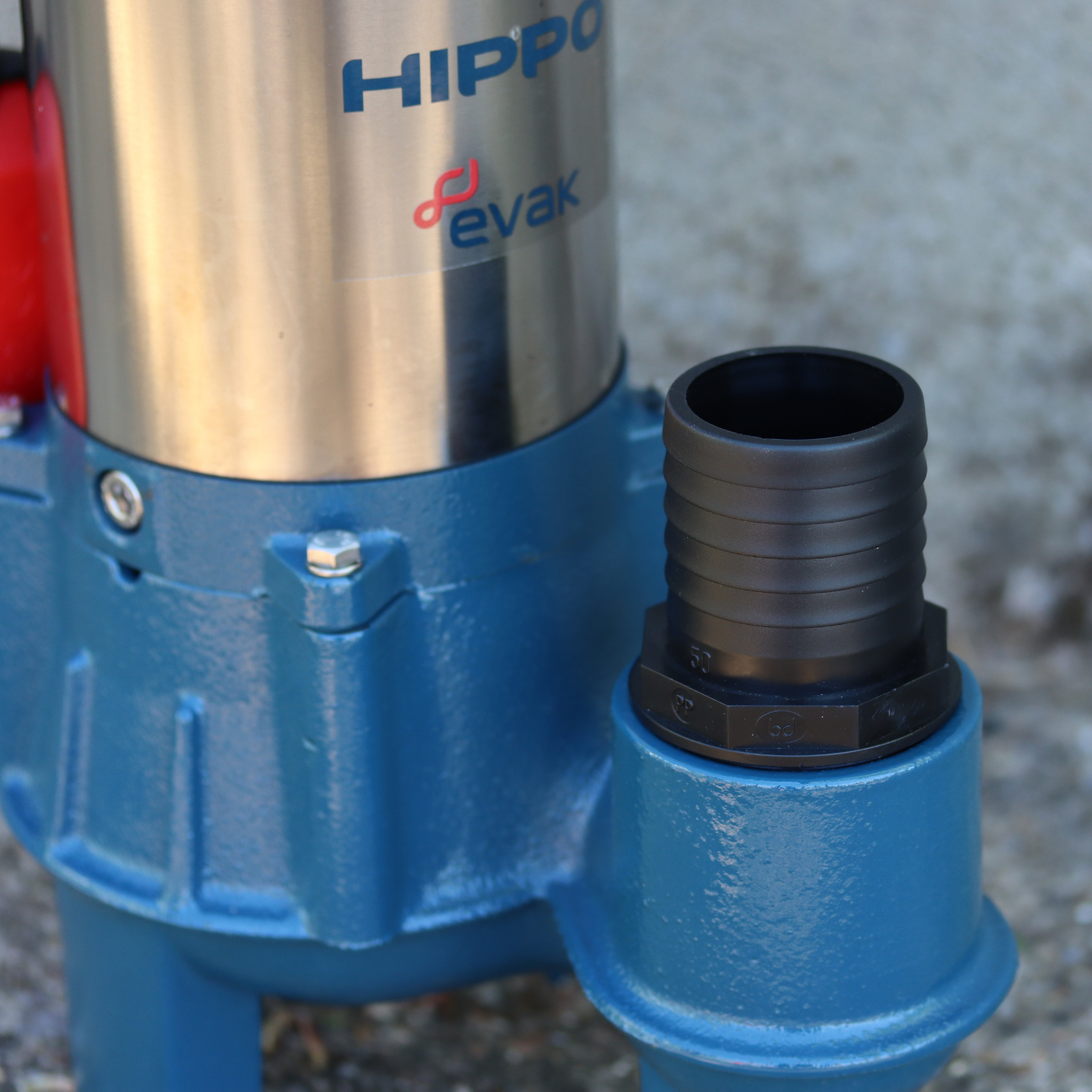

Hose tails connect a threaded pump outlet to a flexible hose, in brass or polypropylene with male or female BSP threads. Cam-lock couplings give a fast, tool-free connection for site use, and hose clips and clamps hold everything tight under pressure. Match the BSP thread to your pump outlet and the tail size to your hose bore.
Brass or polypropylene
Brass tails are tougher and handle heat and heavy use; polypropylene is lighter, cheaper and corrosion-proof for clean and waste water. For longer runs, pair these with our hoses, and add a non-return valve on the discharge if needed.
Frequently asked questions.
What size hose tail do I need?
Match two things: the BSP thread on your pump outlet (for example 1 inch, 1.5 inch or 2 inch) and the bore of your hose. The tail steps the thread down to the hose size.
What is a cam coupling?
A cam-lock coupling is a quick-release connector with two lever arms. It lets you join and separate hoses by hand in seconds, with no tools, which is ideal on site.
Brass or polypropylene hose tails?
Brass for durability, heat and heavy use; polypropylene for lower cost and corrosion resistance on clean or waste water. Both seal on a BSP thread.
