FPS Iguazu Sump Foul | Packaged Sewage Pump Station (Hippo 50)
The FPS Iguazu Sump Foul is a packaged pump station designed to collect foul water from basements and ground floor extensions where other facilities in the property discharge via gravity. They are also widely used in flood defence to drain water from void spaces, or externally to help reduce flood risk.

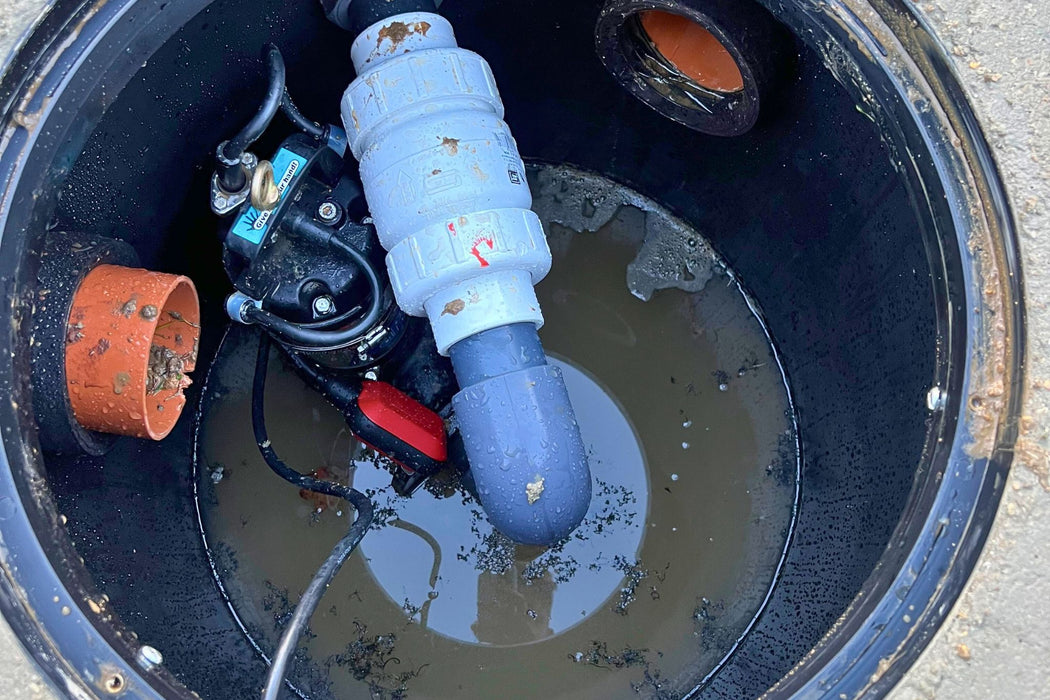

The most common application would be to collect foul water from a W.C. and/or utility room and then discharge it to the main sewer. The system has been designed to ensure an easy and trouble free installation and is manufactured in high grade MDPE. It is delivered to site as a complete package, including all internal pipe work and a sewage pump. The system can be used internally or externally.
A high-level alarm can be fitted. A battery back-up system can also be supplied.
Features:
- MDPE chamber
- 2″ internal pipe work
- 2″ non-return valve
- 2″ quick release coupling
- 40mm cable duct
- 1 year warranty
- Manhole Cover
Specifications:
- Chamber Storage 190L
- 0.61m ø x 0.635m deep
| Model | Hippo 50 | |
| Outlet/mm | 50 | |
| Voltage/V | 230 | |
| Flow rate l/min | 330 | |
| Power/kW | 0.37 | |
| Head/m | 7 | |
| Free passage/mm | 50 |
The Foul pump station allows for one or two 110mm inlet (to be drilled on site) to enable a quick and easy installation.
Optional Extras:
- High Level Alarm
- Battery Back Up
- Recessed Cover – Sealed & Locking. Recommended for internal use. Factory fitted single neoprene seal.
Typical Installation Schematic:
