The FPS Iguazu Sump FEKA is our premium foul water station, pairing a 190 litre high-grade MDPE chamber with a stainless steel FEKA VS 750 submersible sewage pump.
It has a maximum flow rate of 400 litres per minute and a maximum rated head of 7.5 metres, with 50mm free passage. The reason to choose it over the cast iron models is durability: an AISI 304 stainless body with an AISI 316 motor shaft resists corrosion, which matters in harsher effluent and in systems that sit unused between uses.
If you need more output and the environment is not harsh, the Sump Foul Pro gives 480 L/min to 11m. For a standard domestic foul duty, the Sump Foul is the value option.
This station is supplied as 230V single-phase.
The FEKA VS750 has a maximum flow rate of 400 litres per minute and a maximum rated head of 7.5 metres.
These are the two ends of the pump curve rather than a single duty point: at 7.5 metres the flow has fallen to zero, and the full 400 litres per minute is only available with no lift at all. What you actually get sits between the two, where the curve meets the resistance of your pipework. Our pump performance calculator works that out for your pipe run, and how to read a pump curve explains the principle.
Full pump performance figures are in the specification table further down this page.
Can be installed internally or externally. Depending on the desired installation, these chambers are often connected with fixed PVC delivery pipe, or with suction and delivery hose, matched to the outlet size.
Supplied as a complete plug and play unit, ready for installation. Some on-site work is required, including reconnecting components, drilling entry holes for cables and routing wiring through a suitable conduit. Read our guide to installing a sump pump.

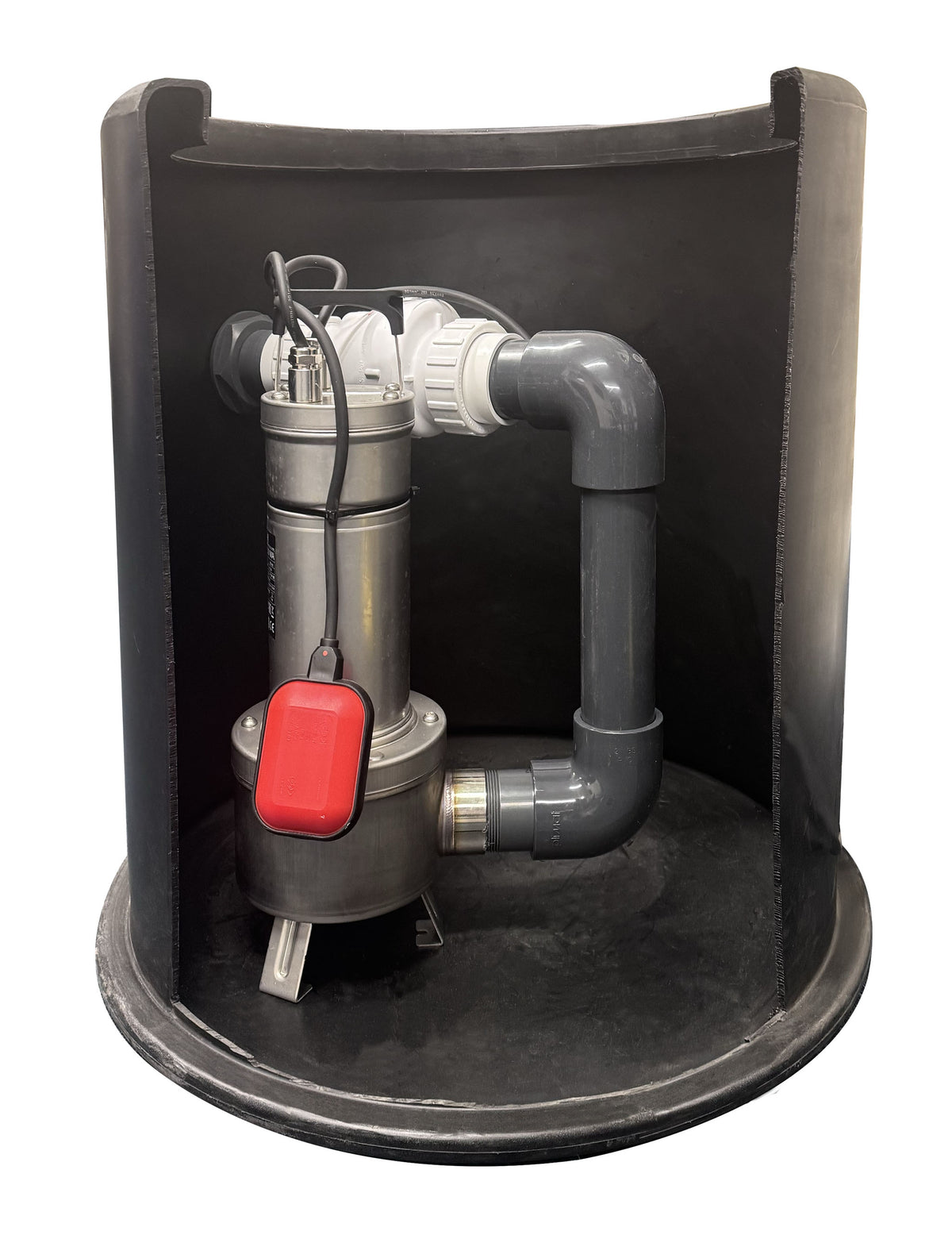

Images are indicative only. Photographs may show optional extras, accessories or pipework that are not included in this listing, and the chamber is shown cut open in some images to reveal the internal components. Your chamber is supplied whole. Please refer to the specification and the list of what is included above.
Pump station design and installation is site specific. You should always consult a suitably qualified engineer to determine the correct configuration and installation method for your application, and a qualified electrician for the electrical connection.
Installing or altering foul drainage in England falls under Building Regulations, and Approved Document H is the guidance used to demonstrate compliance, including sizing the chamber around the number of people served. See sewage pumps and Building Regulations explained, and confirm the position for your project with your local building control body.
We supply equipment. We do not provide site-specific design or installation advice over the phone. Where a project needs calculations, a specification or a design, see our engineering review service.
| Model | FEKA 750VS |
| Manual/ Auto | A |
| Outlet/ mm | 50 |
| Kw | 0.75 |
| Volt | 230 |
| Flow ltr/min | 400 |
| Head /m | 7.5 |
| Free Passage | 50 |
| H x Dia /mm | 492 x 203 |
| Weight /Kg | 16 |
Watch below as we install a Packaged Pump Station into a garage floor, to assist with removing any floodwater that may enter.
In this instance, the property was suffering some water ingress into the garage through the walls, and also through a non-FPS Flood barrier.
The Sump Pump was installed into the garage floor to provide a passive solution to remove water from the garage.
