By Simon Crowther, Civil Engineer and Chartered Water & Environment Manager
If you only remember one thing from this article, make it this: the AMA Drainer 301 is popular because it just works. It’s reliable, affordable, and its arm float switch doesn’t get stuck in tight sumps like a pendant float can. For homeowners, installers and facilities teams, that combination is key.
Below, I’ll explain what makes it a favourite, where it shines, and a few engineer’s tips to get the best from it.
If you’ve ever had a pendant float fail to rise in a tight chamber, or snag on internal fittings, you’ll know how disruptive that can be. A float switch on a fixed arm provides defined on/off levels and significantly reduces the risk of snagging. The 301 is designed to eliminate that problem.
You can learn more about the different types of float switches here: Automatic Water Pumps and the Different Switches
1) The arm float advantage
In packaged pump stations and retrofit pits, space is tight. A pendant float needs room to swing; the 301’s arm float doesn’t. That means more reliable automatic start/stop and far fewer nuisance failures.
2) Integrated non‑return valve
It is supplied with with a check valve for the outlet. That’s one less fitting to source, and it helps stop backflow so your pump isn’t re‑pumping what it just removed.
3) Safe under tough conditions
The motor is sealed and has built-in overheating protection. While the pump should never be run dry, this adds an extra layer of safety during normal starts, stops, and low-water conditions.
4) Installer‑friendly
At roughly 4.5 kg with a 10 m cable and 230 V plug, the 301 is easy to install.

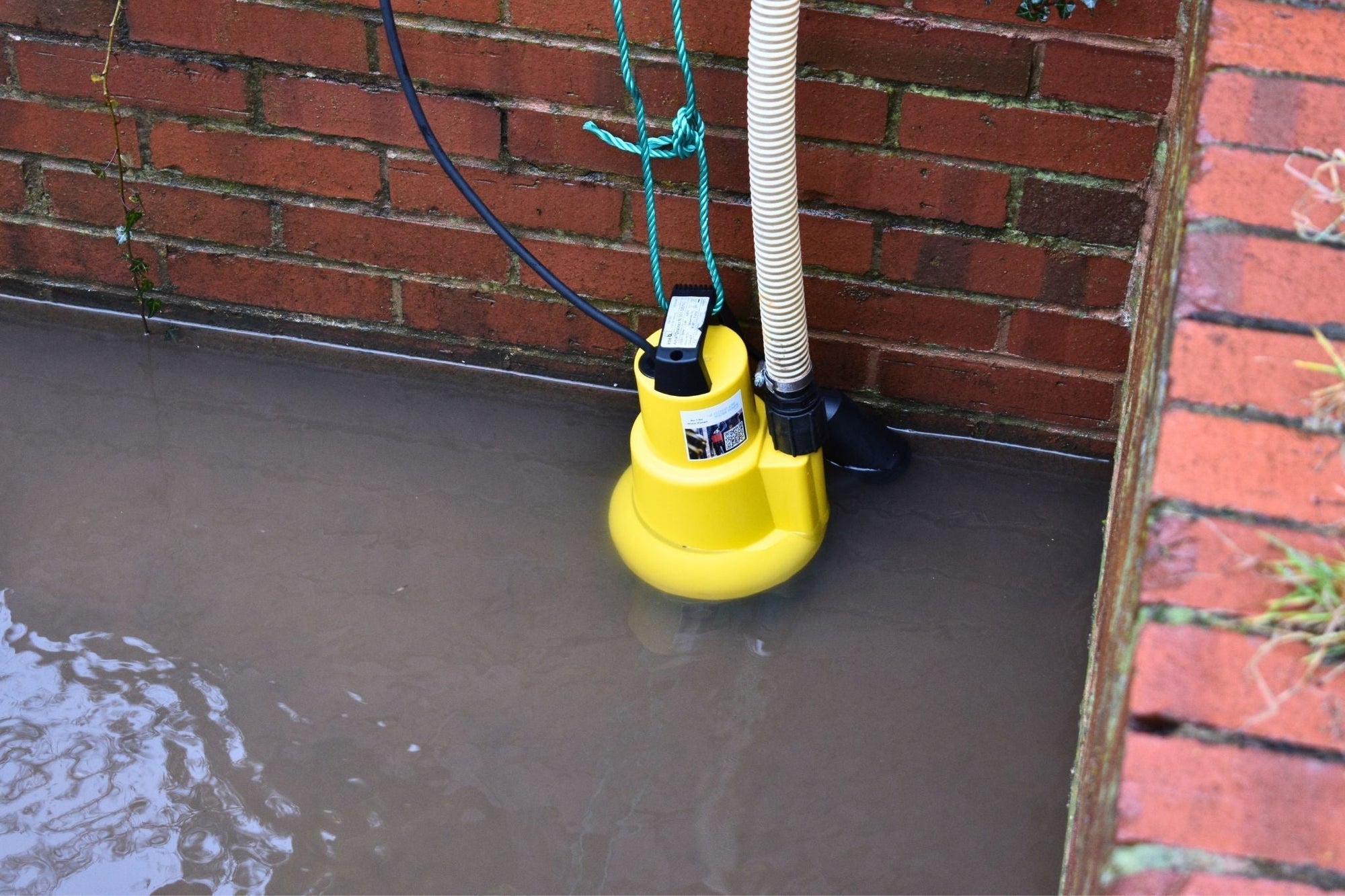

The AMA Drainer 301 is a drainage pump for clean and slightly dirty water, including grey water. It will comfortably pass solids up to 10 mm. This includes, groundwater, floodwater, wash‑down and utility sinks, but not raw sewage.
Typical uses we see:
If you’re building a turnkey solution, it’s also available as part of our Iguazu 635 packaged sump, ideal if you want a neat install with minimal site time.
These are the basics that stop 90% of pump problems. Keep it simple and your AMA Drainer 301 will look after you when you need it.
Stick to a 32 mm outlet and straight pipe runs.
Every bend or kink reduces how well the pump can push water out. Avoid layflat hose for permanent installs, it kinks easily and slows the pump down.
Let it fill until the float switches on, then wait to see it shut off properly.
Switch to manual mode to check it can pump down to around 15 mm.
A quick monthly test prevents nasty surprises in a storm.
No tight bends, no trapping it under the lid, and don’t let it tangle around the float. If the float can’t move freely, the pump won’t run when you need it most. For permanent installs, you should also use a conduit for the electrical cable.
Flush the pump with clean water, rinse it off, and check the non‑return valve closes properly.
This is where the AMA Drainer 301 really earns its popularity. Thanks to the arm float switch, it starts when it should, stops when it should, and doesn’t dangle a cable that can hook on ribbed chambers or pipework.
The AMA Drainer 301 is popular because it removes common failure points without inflating the price. If you need a dependable, automatic drainage pump for clean to slightly dirty water (including grey water), especially in tight sumps, this is a very safe choice.
Yes. It’s designed for clean and slightly dirty water, including grey water, with 10 mm free passage.
In manual mode, down to ~15 mm. In automatic mode, factory settings are ON ~145 mm / OFF ~70 mm, and can be adjusted upwards for your pit.
The outlet is 1¼″ (32 mm). Use a 32 mm hose tail and keep bends to a minimum. For fixed installations, Suction Delivery Hose should be used.
That’s one of its strengths. The arm float is compact and far less likely to snag than a pendant float in narrow chambers. The pump is 340mm H x 330mm ⌀ (switch extended)
No pump likes running dry. The motor has thermal protection, but you should always set levels correctly and test the automatic stop.
