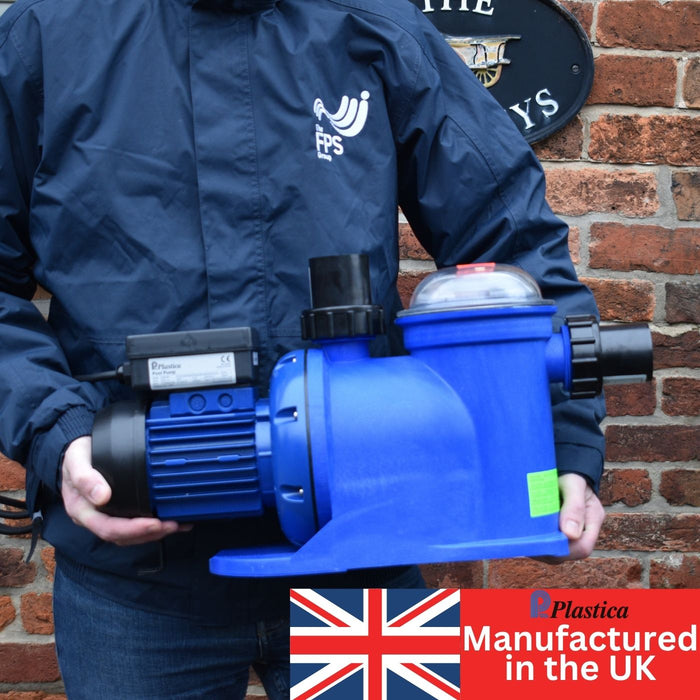

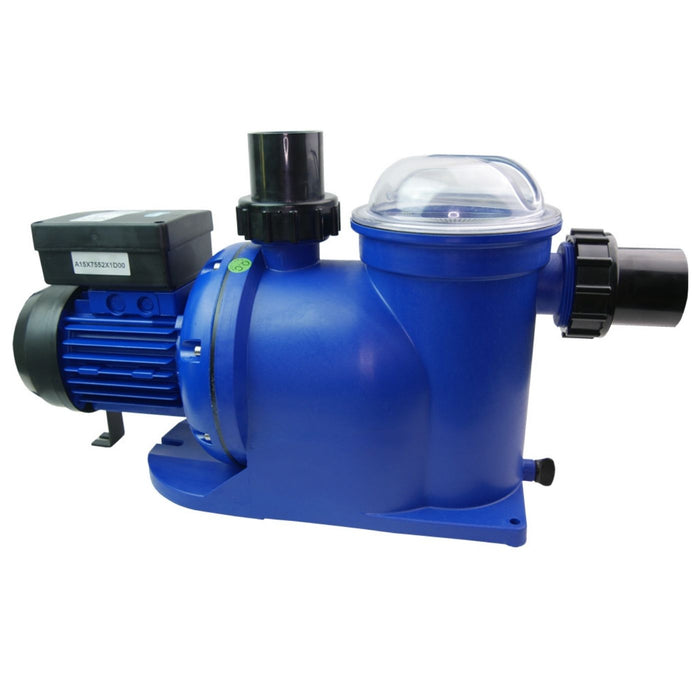

Plastica AG Series Swimming Pool Pump

Quiet, Reliable Swimming Pool Pump for Above Ground & Small Pools

The Plastica AG range is a high-quality, ultra-quiet swimming pool pump, designed for above ground pools, small residential pools and ornamental systems where reliability and low noise are critical.

Self-priming up to 1.8 metres and suitable for both chlorinated and salt water pools, the AG range is built for straightforward installation and long-term use in domestic environments.

Running at approximately 55dB, this is one of the quieter pool pumps in its class, making it ideal for domestic settings where louder pumps quickly become an issue.

If you’re stepping up from a basic pump like the iFlo, the AG range offers better materials, improved durability and more consistent long-term performance.

The AG pool pump from Plastica is the baby brother to the Argonaut, and has the same superior build quality to ensure high performance, durability and reliability.

Where the Plastica AG Pump Works Best

The AG series is ideal for:

• above-ground swimming pools
• small residential in-ground pools
• ornamental pools and water features
• installations where low noise is important

With a quiet running level of approximately 55dB, it is well suited to gardens and residential settings where noise can become an issue.

Why Choose the AG Range?

• Ultra-quiet operation (approx. 55dB)
• Self-priming to 1.8m for easier installation and use
• Suitable for chlorine and salt water pools
• Manufactured and tested in the UK

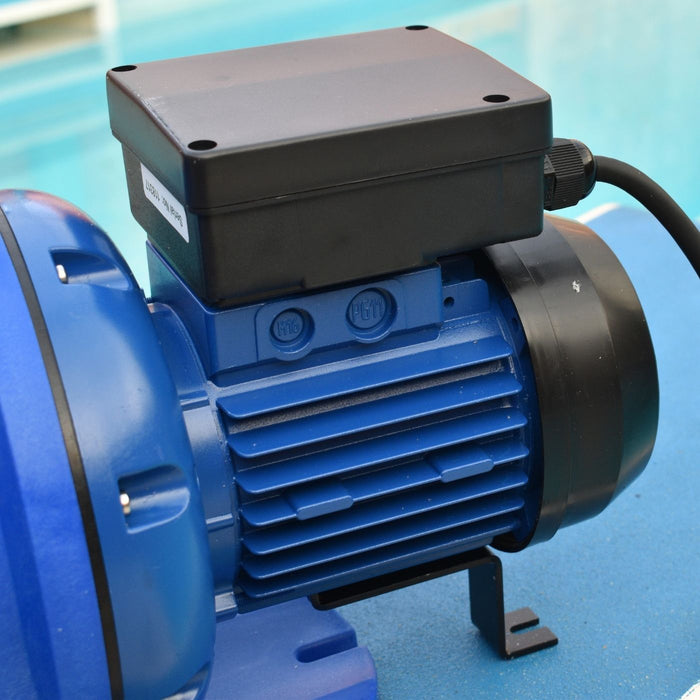

• Heavy-duty IP55 rated motor for long service life
• Designed for continuous pool circulation

Build and Materials

This isn’t an entry-level pump. The AG range uses higher-grade materials designed to last:

• Glass-filled polypropylene pump body (chemical resistant)
• AISI 316 stainless steel mechanical seal
• Stainless steel motor shaft

Suitable for use with:

• Chlorine systems
• Bromine
• Iodine
• Salt-treated pools

This makes it a strong option where water chemistry would quickly degrade lower-grade pumps.

Performance and Models

There are four models available in the AG range.

The motor ratings are shown as P1 (the input rating) and P2 (the output rating after friction losses etc):

• AG8-2DC
• P1: 0.29kW / 0.39hp
• P2: 0.19kW / 0.25hp
• AG10-2DC
• P1: 0.36kW / 0.48hp
• P2: 0.25kW / 0.33hp
• AG14-2DC
• P1: 0.49kW / 0.66hp
• P2: 0.37kW / 0.50hp
• AG16-2DC
• P1: 0.67kW / 0.90hp
• P2: 0.49kW / 0.66hp

Flow rates typically range from 9m³/hr to 16m³/hr, depending on the system layout and installation.

As with all pool pumps, correct sizing is key. Oversizing can lead to unnecessary energy use and reduced efficiency, so selection should be based on pool volume and pipework, not just motor size.

Design Details

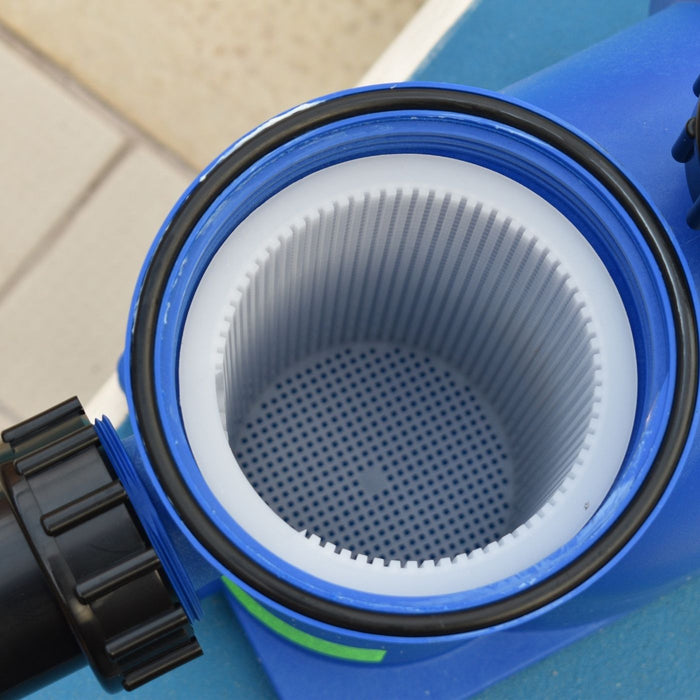

• 1.65 litre strainer basket

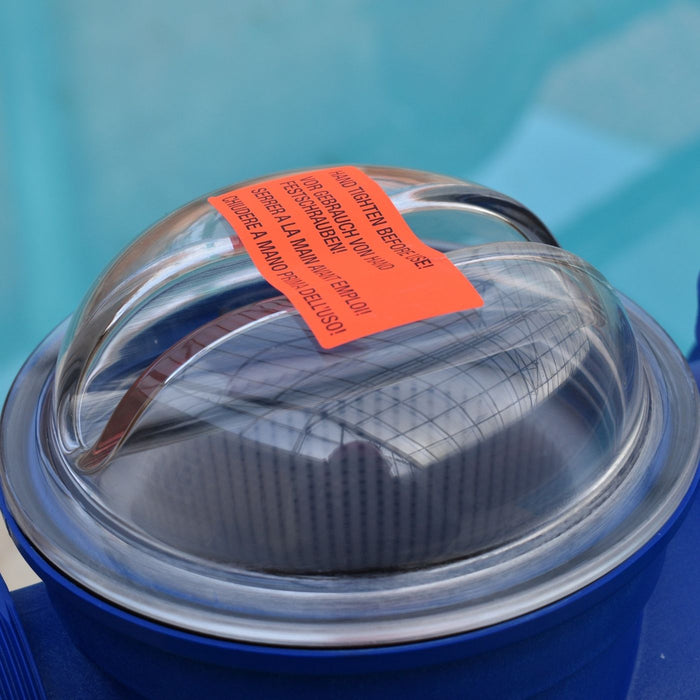

• Clear lid for quick inspection and maintenance
• Designed for easy access and routine cleaning

Installation and Compatibility

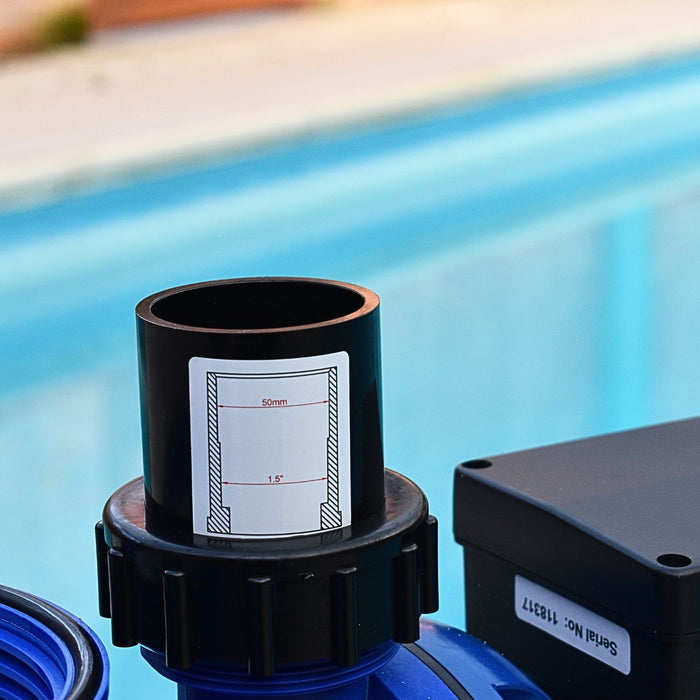

• Supplied with 50mm (1.5”) ABS solvent weld unions

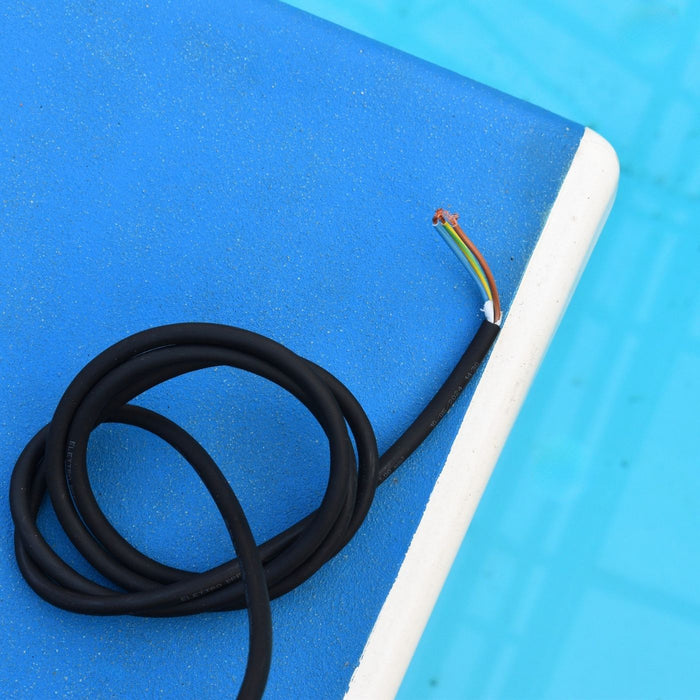

• 2m pre-wired cable included
• Standard setup for most residential pool systems

Proven Design

Originally developed by Balboa Hydroair (USA), the AG pump has a long-standing reputation in the industry and has also been known as:

• ITT Marlow AG
• ITT Hydroair AG

Now manufactured and tested in the UK by Plastica, maintaining that proven design with improved quality control.

The AG range was originally developed by Balboa Hydroair in the USA and has also been known as the ITT Marlow AG and ITT Hydroair AG.

Since being acquired by Plastica, it has been further refined and is now manufactured and tested in the UK.

What’s in the Box?

✅ 1 x Plastica AG Swimming Pool Pump
✅ 50mm / 1.5” ABS solvent weld unions
✅ 2m pre-wired cable

Need Help Choosing the Right Pump?

Not sure whether the AG range is right for your pool, or how it compares to iFlo or Argonaut models?

Read our guide:
Understanding the Plastica Range of Swimming Pool Pumps
