APP KHL-20 Submersible Water Pump - High Head
APP KHL-20 Submersible Water Pump – High‑Head Industrial Pump for Clean & Dirty Water
The APP KHL-20 submersible water pump is a robust, high‑performance solution designed for demanding industrial and commercial water transfer applications. Built for reliability and longevity, it delivers an impressive 25m head through a 50mm outlet, making it ideal where consistent pressure and durability are essential.
What is the APP KHL-20 pump used for?
The APP KHL-20 is suitable for pumping both clean and dirty water, making it highly versatile across a wide range of applications, including:
- Industrial processing
- Site dewatering

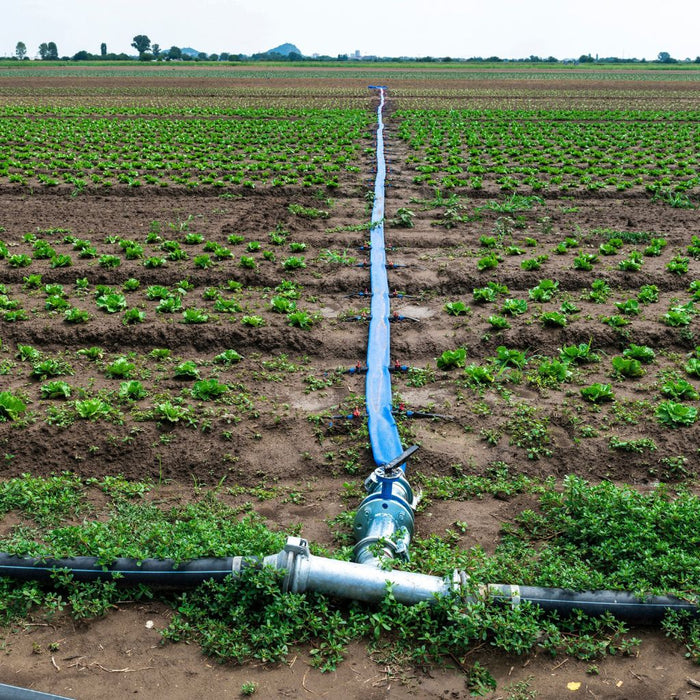

- Irrigation systems
- Water features
- Fixed and permanent installations
Its high head performance makes it particularly effective where water needs to be pumped over distance or elevation.
Construct and Durability
Designed for tough working environments, the APP KHL-20 features:
- Rugged cast iron pump body for strength and long service life
- Vortex impeller to handle solids and dirty water effectively
- Corrosion‑resistant 304 stainless steel motor casing
- Stainless‑steel shaft with double mechanical seals
- Pump side: silicon carbide
- Motor side: carbon ceramic
This construction ensures excellent resistance to wear, corrosion, and mechanical stress.
Why choose the APP KHL-20?
- High head performance up to 25 metres
- Suitable for clean and dirty water applications

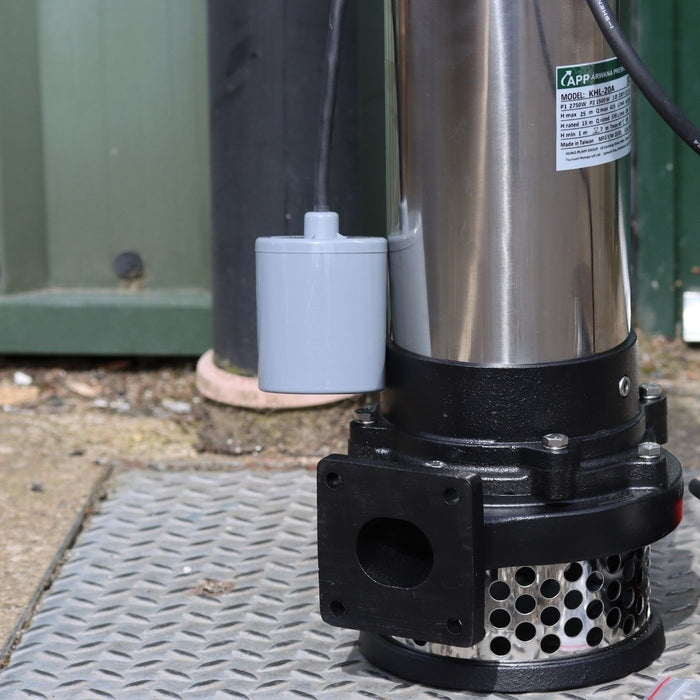

- Choice of manual or automatic 230V models, or manual 400V three‑phase
- Heavy‑duty industrial build quality
- Supplied with a 2‑year warranty for peace of mind
It’s a dependable choice for professionals who need consistent performance in challenging conditions.
Operational Details
- Maximum immersion depth: 6 metres
- Outlet size: 50mm
- Motor includes internal starting capacitor and motor protector
- Supplied with 10 metres of heavy‑duty rubber power cable
- Designed for continuous and fixed installation use

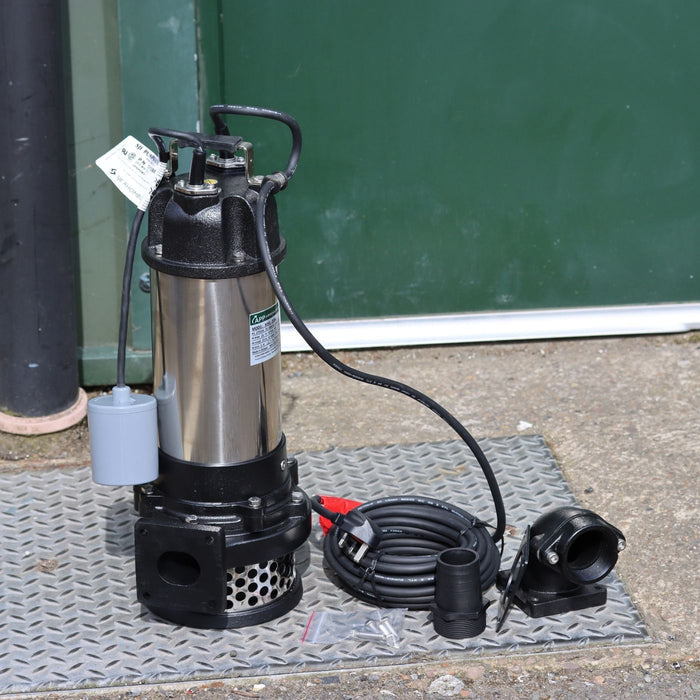

What's in the box
1 × APP KHL-20 Pump
1 × 10m heavy‑duty rubber power cable
1 × 50mm hosetail
