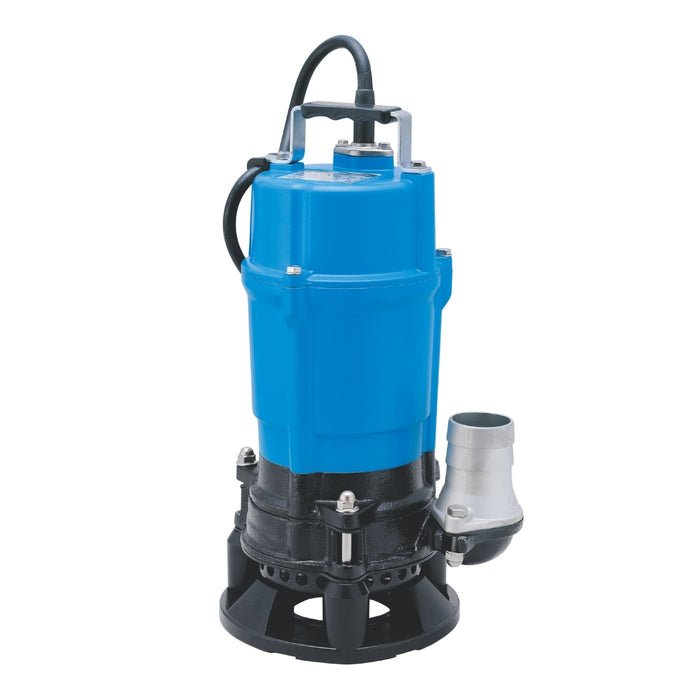

Tsurumi HSD2.55S Submersible Drainage Pump

Lightweight Single-Phase Submersible Pump for Sand-Carrying Water, Sludge and Bentonite

The Tsurumi HSD2.55S is a robust, lightweight single-phase drainage pump designed for pumping sand-carrying water, sludge and bentonite. The agitator and impeller are both chromium iron to minimise clogging and maximise wear resistance when handling abrasive particles in suspension. A double mechanical seal with an oil lifter ensures positive seal lubrication in any operating position, including partial submersion. Available in manual or automatic (pendant float switch) versions.

What is the Tsurumi HSD2.55S used for?

•    Pumping sand-carrying water on construction and civil engineering sites
•    Sludge and slurry drainage
•    Bentonite removal from piling and boring operations
•    Site dewatering in abrasive particle conditions

Construction and Durability

The agitator and impeller are manufactured from chromium iron casting, providing high wear resistance against sand, grit and abrasive particles. The pump casing is FCD700 ductile iron; the motor frame is aluminium die casting; the shaft is SUS403 stainless steel. The double mechanical seal runs in an oil bath with an oil lifting device: the primary seal is silicon carbide on silicon carbide, the secondary is carbon on ceramic. The motor enables long periods of operation whilst partially submerged. Free passage is 10mm. Degree of protection: IP68.

Why choose the Tsurumi HSD2.55S?

The chromium iron agitator and impeller are the defining feature of the HSD2.55S: they resist the abrasive wear from sand and grit that quickly destroys standard impellers. The ability to operate partially submerged adds flexibility in shallow sumps where water levels fluctuate. The compact bell-float design keeps the footprint small. Available in 230V Manual and 230V Auto versions for both temporary and automated drainage applications.

Operational Details

•    Impeller and agitator: chromium iron casting
•    Seal: double mechanical in oil bath with oil lifter; primary SiC/SiC, secondary carbon/ceramic
•    Maximum solid handling: 10mm
•    Suitable for: sand-carrying water, sludge, bentonite
•    Discharge: 2" (50mm) BS-Coupling threaded flange
•    Cable: 10 metres H07RN8-F

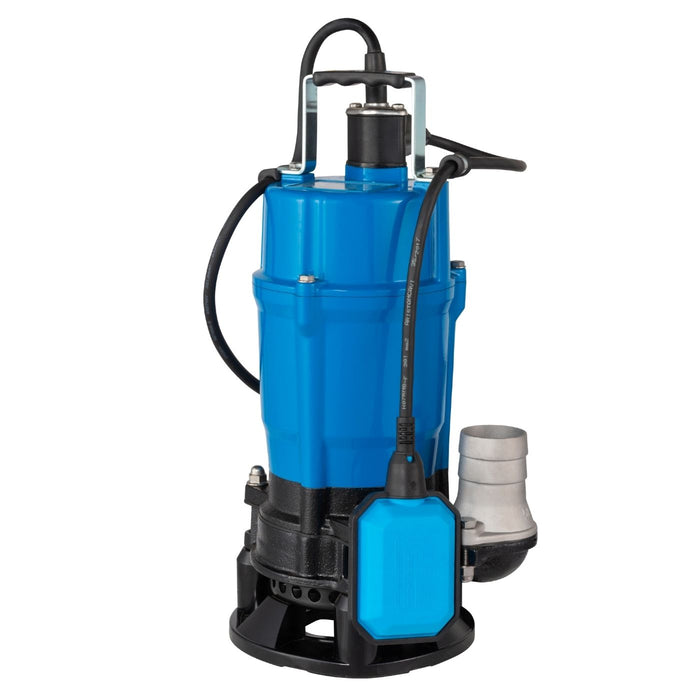

•    Available models: HSD2.55S Manual (230V), HSD2.55S Auto (230V, pendant float switch)
•    Rated power: 0.55kW; max head 13.2m
•    Weight: 14kg
•    IP rating: IP68

What's in the box

•    Tsurumi HSD2.55S submersible pump
