The FPS Iguazu Sump 635 is a compact, high-performance packaged pump station designed to automatically manage groundwater, light grey water, and floodwater. It collects water via a perimeter channel, 110mm pipe connection, and can also be drilled to allow groundwater infiltration.
This single-pump system is ideal for managing floodwater, groundwater and light grey water from showers and hand basins. (Please note: it is not suitable for foul water from W.C. connections.)
During flood events, the Iguazu 635 offers a major advantage over portable puddle pumps, it’s installed below ground and operates automatically, switching on and off as needed. This makes it a hugely popular, stress-free flood protection solution. One customer experienced this first-hand: while they were on holiday in Australia, their Iguazu pump automatically activated during flooding and successfully kept their property dry.
You’ll notice in the gallery that some installations feature a drilled lid, allowing water to enter the chamber and be automatically pumped out.
You’ll also notice in the images that installations can be very discreet, featuring neat drainage channels with only an inspection chamber lid visible.
Often installed in basements, garages, patios, driveways, or gardens, the Iguazu 635 also integrates perfectly into perimeter flood protection systems, supporting flood barriers and flood walls.
This system can be installed using 32mm rigid pipework and fittings secured with solvent weld, or you can simply add a hose tail to your order and use semi-rigid Suction Delivery hose to discharge water to your chosen location.
Here are the five sump pump mistakes we see often, read how to avoid them.

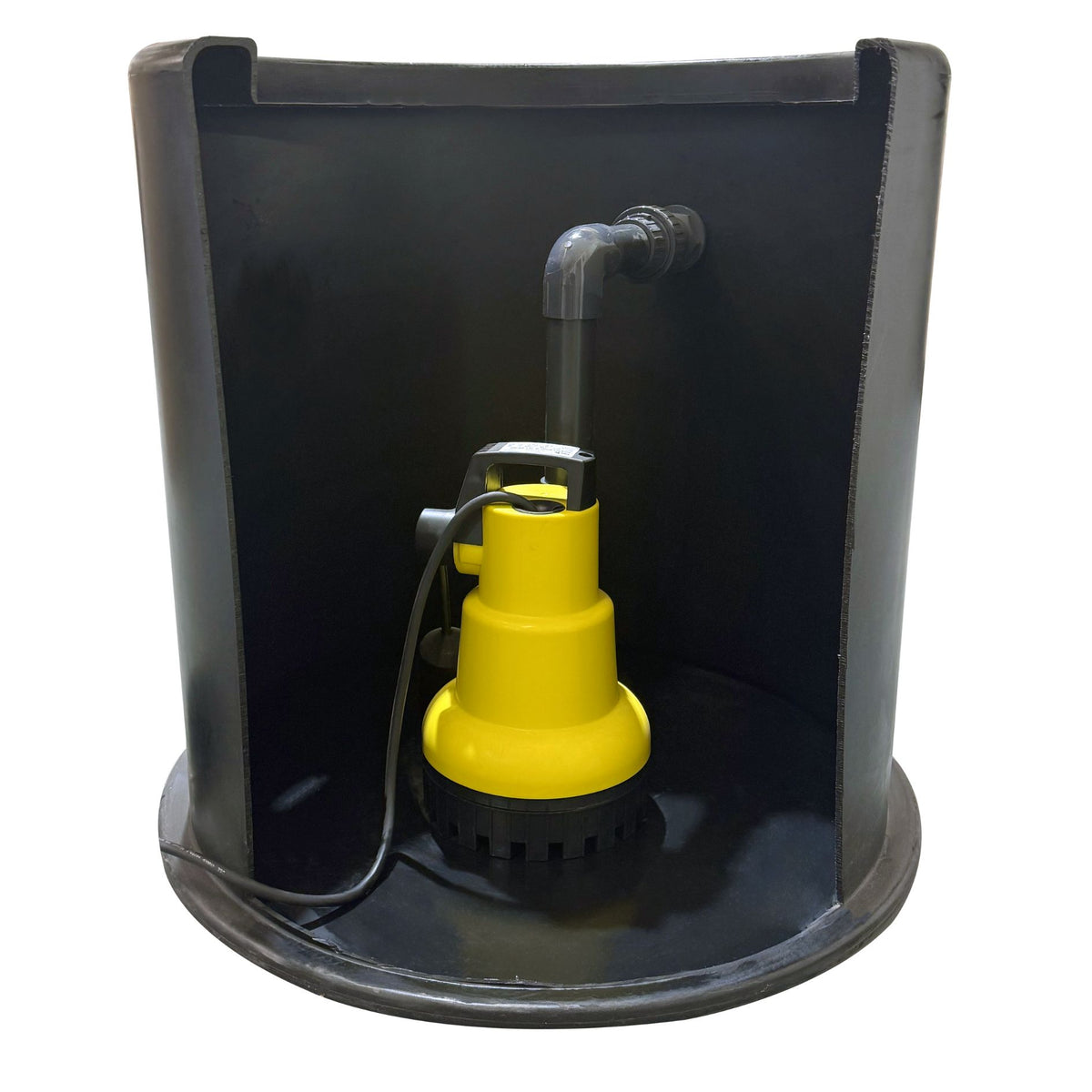

Manufactured from high-grade MDPE, the unit is delivered as a ‘Plug & Play’**system, including all internal pipework and the reliable AMA Drainer 301 Automatic Submersible Water Pump. The float switch on an arm reduces the risk of snagging, ensuring dependable and consistent operation.
The Iguazu 635 is our most straightforward and cost-effective sump pump system, offering exceptional performance for domestic and light commercial flood resilience. For more complex requirements, we can also supply bespoke packaged pump stations to suit your exact needs.
**The system is supplied as a complete ‘Plug & Play’ unit, ready for quick installation. Some on-site work will be required, including reconnecting components, drilling entry holes for cables, and routing wiring through a suitable conduit. Read our blog on Installing a Sump Pump here
No spec data found. ESC Size Charts will auto-populate when this product is tagged with one of the chart keys (e.g. 2AL, 2C(M), 50PNI) in the ESC dashboard. Alternatively, add JSON metafields under
specs.performance, specs.electrical, specs.build, and specs.support
to populate this table directly.
Watch below as we install a Packaged Pump Station into a garage floor, to assist with removing any floodwater that may enter.
In this instance, the property was suffering some water ingress into the garage through the walls, and also through a non-FPS Flood barrier.
The Sump Pump was installed into the garage floor to provide a passive solution to remove water from the garage.
In this video, we showcase how a sump pump operates to protect a small patio area surrounded by a low wall and flood barriers. Despite these precautions, rainwater, roof runoff, and groundwater can still lead to pooling.
