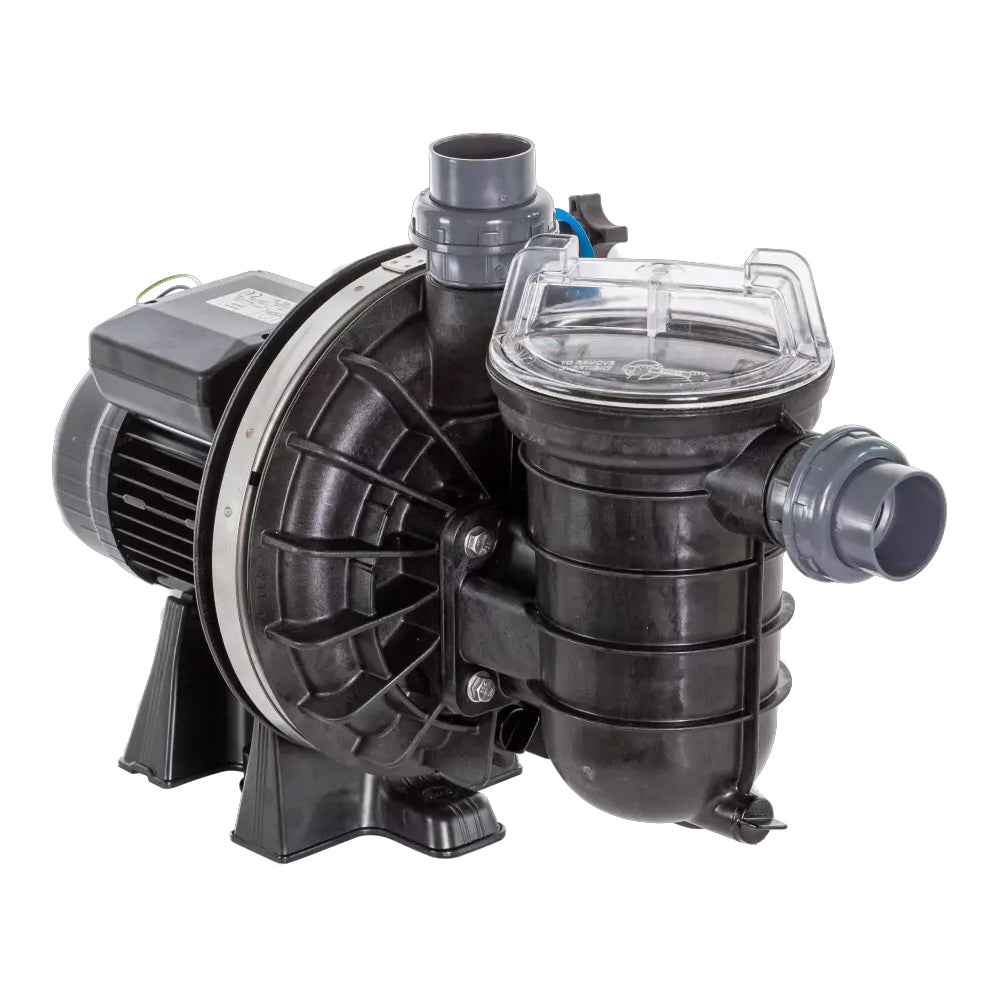

Pentair La Sta-Rite 5P2R: High Head, Reliable Pool Circulation
The Pentair La Sta-Rite 5P2R is a high efficiency, low maintenance pool pump from one of the most trusted names in the industry. Its high head impellers make it a strong choice where the plant room sits well back from the pool, and a corrosion resistant build with stainless steel inserts, an AISI 304 stainless drive end shaft and sealed SKF bearings is designed to keep running for years. The extra large pre filter basket means longer gaps between cleaning, and the stainless steel locking clamp makes servicing quick, as well as allowing a straightforward upgrade to a variable speed motor. The 5P2R is available in four power options, in single or three phase, and is salt resistant for use with salt chlorinated pools.
KeyFeatures at a Glance
• High head impellers, ideal where the plant room is set back from the pool
• Extra large pre filter basket for longer periods between cleaning
• Stainless steel locking clamp for quick servicing and easy upgrade to variable speed
• Removable strainer, so the pump can also be used as a booster pump
• Induction asynchronous motor with AISI 304 stainless steel drive end shaft and sealed SKF bearings
• Corrosion resistant stainless steel inserts and an IPX5 rated motor
• 1.5 inch BSP connections with 50mm unions included
• Salt resistant to 0.4 percent (4 g/l) for salt chlorinated pools
• Four power options in single or three phase
• 2 year warranty

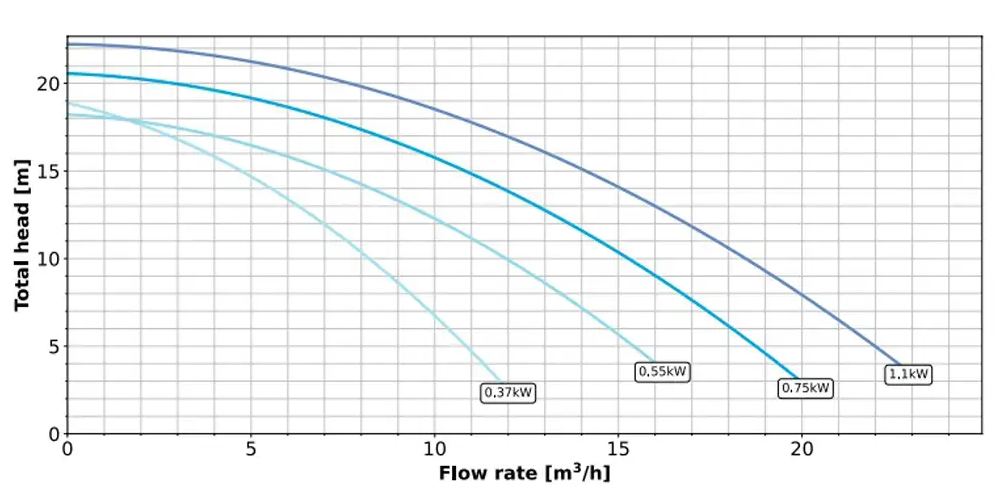

Choose your La Sta-Rite: power and phase options
All single speed La Sta-Rite 5P2R pumps share the same high head design and rugged build. Choose the power to suit your pool and pipe runs, and the phase to suit your electrical supply. If you are unsure, contact our team and we will help you pick the right option.
| HP |
kW |
Phase |
Voltage |
Best suited to |
| 0.5 HP |
0.37 kW |
Single phase |
230 V |
Smaller pools and shorter pipe runs |
| 0.5 HP |
0.37 kW |
Three phase |
400 V (380-420 V) |
Smaller pools on a three phase supply |
| 0.75 HP |
0.55 kW |
Single phase |
230 V |
Medium pools needing a little more flow |
| 0.75 HP |
0.55 kW |
Three phase |
400 V (380-420 V) |
Medium pools on a three phase supply |
| 1 HP |
0.75 kW |
Single phase |
230 V |
Medium to larger pools, a popular all rounder |
| 1 HP |
0.75 kW |
Three phase |
400 V (380-420 V) |
Medium to larger pools on a three phase supply |
| 1.5 HP |
1.1 kW |
Single phase |
230 V |
Larger pools or longer pipe runs |
| 1.5 HP |
1.1 kW |
Three phase |
400 V (380-420 V) |
Larger or light commercial pools on three phase |
What is the La Sta-Rite 5P2R pump used for?
• Filtration and circulation for domestic and light commercial swimming pools
• Installations where the plant room is some distance from the pool, thanks to the high head impellers
• Salt chlorinated pools, as the pump is salt resistant to 4 g/l
• Use as a booster pump, using the removable strainer
• Sites on a three phase supply, using the three phase options
Construction and durability
The La Sta-Rite 5P2R is engineered for a long service life in a demanding poolside environment. Corrosion resistant stainless steel inserts, a stainless steel locking clamp and a bi-material shaft with an AISI 304 stainless steel drive end all resist the effects of water and pool chemicals, and sealed SKF bearings keep the motor running smoothly. The induction asynchronous motor is IPX5 rated, with thermal protection on single phase models and IE2 efficiency on three phase models, and a mechanical seal protects the shaft. Made in Italy, the 5P2R is designed to operate for many years with minimal servicing, and the stainless steel clamp means the wet end can be opened quickly for basket cleaning or upgraded to a variable speed motor when needed.
Why choose the Pentair La Sta-Rite 5P2R?
Choose the La Sta-Rite when you want proven Sta-Rite reliability with strong head performance and low running maintenance. The high head impellers handle longer pipe runs and plant rooms set away from the pool better than many standard pumps, while the extra large basket and quick release stainless clamp keep upkeep simple. With four power options across single and three phase, salt resistance to 4 g/l and unions included, it fits a wide range of domestic and light commercial pools. It is also future proof, because the same body upgrades easily to a variable speed motor if you want to cut running costs later. It is backed by a 2 year warranty.
What's in the box
• Pentair La Sta-Rite 5P2R pump (in your chosen power and phase)
• Extra large removable strainer basket
• Transparent prefilter lid with O ring
• Stainless steel locking clamp
• 50 mm unions for inlet and outlet (included)
