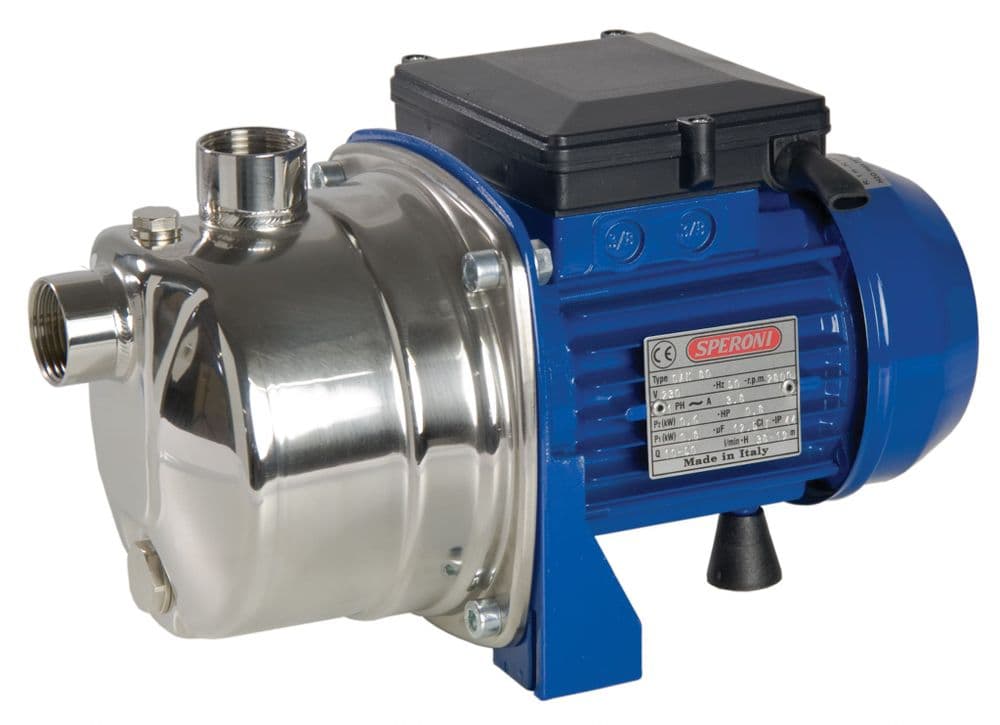

Speroni CA(M) Self-Priming Jet Pumps, Stainless Steel

Speroni CA(M) Self Priming Jet Pump in Stainless Steel | Surface Pump for Garden, Rainwater and Irrigation

The Speroni CA(M) stainless steel jet pump is a surface mounted self-priming pump built for garden, irrigation, rainwater and light industrial use where corrosion resistance matters. Available in 110V, 230V single phase and 400V three phase across the CAM80, CAM88 and CAM198 models, it provides reliable pressure and flow from shallow water sources up to 8 metres below the pump.

What is the Speroni CA(M) pump used for?

•    Garden, allotment and horticultural watering
•    Pressurising rainwater harvesting systems
•    Irrigation and sprinkler systems
•    Lifting water from tanks, streams and shallow wells
•    Light industrial wash down and water transfer
•    Small water boosting installations in domestic and agricultural settings

Construction and Durability

The CA(M) stainless steel jet pump is built around a cast iron pump body with a stainless steel outer jacket, a stainless steel motor support and an AISI 304 stainless steel shaft and impeller, depending on the model. The mechanical seal is ceramic, graphite and NBR, suited to clean water duties, and the motor is a two pole induction unit running at 2,850 rpm with Class F insulation and IP44 protection. The stainless build is chosen over the cast iron version where the pump is exposed to weather, harder water or longer periods of standing between uses, helping extend service life.

Why choose the Speroni CA(M)?

Jet pumps prime quickly and reliably, drawing air from the suction pipe through a venturi effect and starting to pump water within seconds. The Speroni CA(M) stainless range is a popular choice for gardeners, smallholders and rainwater system installers because it offers strong pressure performance, a tidy compact footprint and a corrosion resistant build at a sensible price. With CAM80, CAM88 and CAM198 model options across multiple voltages, including 110V for site use, there is a CA(M) that fits most small irrigation and rainwater pressurising jobs.

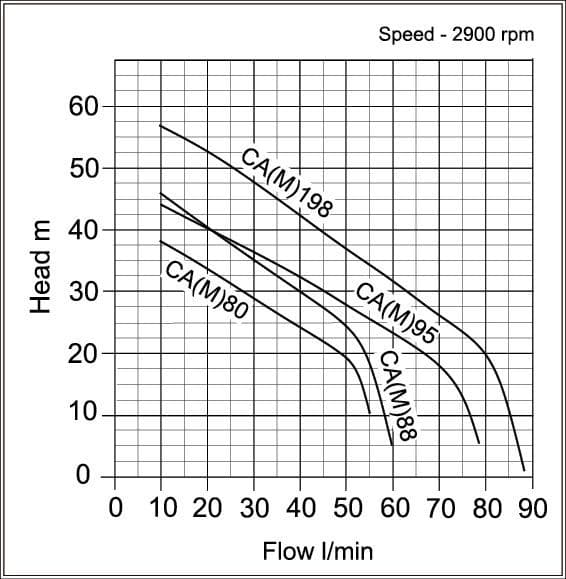

Operational Details

•    Flow rate: up to 60 l/min (CAM88), up to 150 l/min (CAM198 family)
•    Maximum head: up to 46 metres (CAM88), up to 47 metres (CAM198 family)
•    Outlet size: 1 inch BSP
•    Maximum suction lift: 8 metres
•    Voltage options: 110V (CAM80 only), 230V single phase, 400V three phase
•    Power: 0.75 kW / 1 HP up to 1.5 kW / 2 HP depending on model
•    Speed: 2,850 RPM
•    Motor protection: IP44, insulation Class F
•    Liquid temperature: up to 35°C
•    Suitable for: clean water only, not WRAS approved and not for drinking water

What's in the box

•    1 x Speroni CA(M) stainless steel self priming jet pump
•    1 inch BSP inlet and outlet
•    Manufacturer documentation
•    Optional protection frame (FR002 or FR005, where ordered, see below)

Accessories

A protection frame is available (FR002 or FR005 depending on whether a Logicpress pressure controller is fitted) for installations where the pump is portable or needs protection from knocks.

A Frame is available for the Models CA(M)80 & CA(M)88.

Important: WRAS Approval

This pump is not WRAS approved and is not for drinking water supply. It is suitable for irrigation, sprinklers, fire systems, rainwater harvesting, cooling loops, and industrial or agricultural water.
