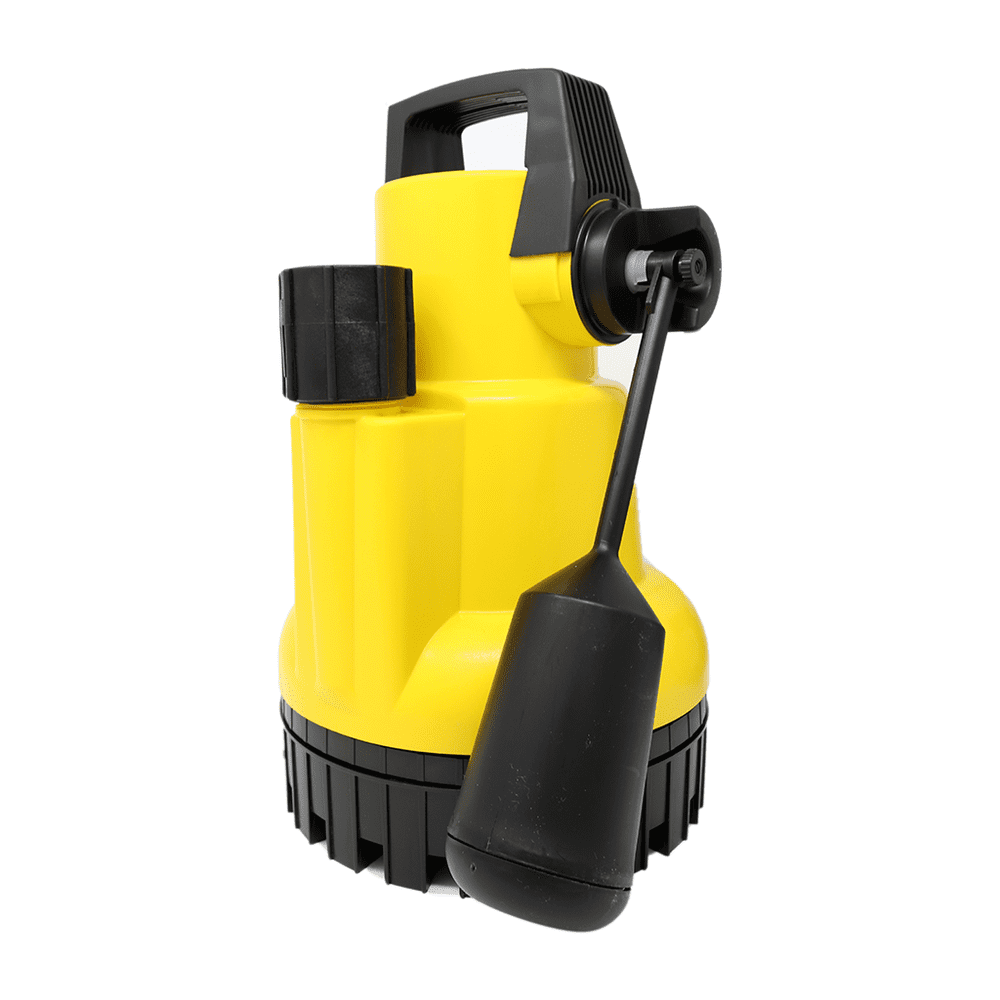

The AMA Drainer 301 is one of the UK’s best-selling automatic submersible water pumps, known for its versatility, reliability, and compact design. This single-phase 230v drainage pump is fitted with a 0.18 kW motor and can operate at immersion depths of up to 2 metres, making it ideal for both domestic and light commercial use.
The pump features a 1¼" (32mm) outlet complete with an integrated non-return valve for efficient discharge and backflow prevention.
The AMA Drainer 301 is suitable for a wide range of water drainage and pumping applications, including:
Each pump is fitted with an arm float switch that automatically switches the pump on when water is detected and off once it’s removed.

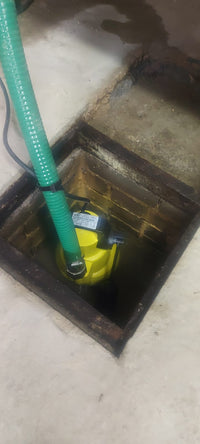

This compact float design makes it suitable for narrow sumps and chambers, where traditional pendant floats may snag or fail to activate reliably.
From the factory, the ‘on’ level is set at 145 mm and the ‘off’ level at 70 mm. These can be adjusted up to 375 mm and 295 mm, allowing flexible setup for different installations. In manual mode, the pump can remove water down to 15 mm in depth.
The magnetic float switch is wear‑resistant and highly reliable, features a fully sealed casing with no internal passage.
Weighing only 4.5 kg, the AMA Drainer 301 is lightweight yet durable. The high-quality plastic casing is abrasion- and impact-resistant, and its noise-absorbing design ensures quiet operation.
The frame-cooled enclosed motor includes thermal overload protection, allowing safe operation even when the motor is not fully submerged.
The pump handles solids up to 10 mm and delivers dependable performance in challenging drainage environments.
This pump is also available as part of our FPS Iguazu 635 Packaged Sump System, providing a ready-to-install, plug-and-play drainage solution for flood and groundwater management.
A hose tail is not included; however, these can be added to your order separately if required.
No spec data found. ESC Size Charts will auto-populate when this product is tagged with one of the chart keys (e.g. 2AL, 2C(M), 50PNI) in the ESC dashboard. Alternatively, add JSON metafields under
specs.performance, specs.electrical, specs.build, and specs.support
to populate this table directly.
Each type of float switch has its advantages and is best suited for specific scenarios. The choice of float switch depends on factors such as the type of liquid, space constraints, required accuracy, and the pump's intended application.
The
FPS Iguazu 635 Packaged Pump Station
is an incredibly versatile solution, ideal for a variety of applications such as:
Grey water management
from sinks, showers, and basins
Flood control
to protect properties from flood damage
Structural waterproofing
for effective cavity drainage in basement waterproofing systems
Surface water drainage
to efficiently manage rainwater
