APP DSPK Submersible Cutter Sewage Pump

Name: APP DSPK Submersible Cutter Sewage Pump
Brand: APP
Price: 795.00 GBP
Availability: InStock

Be the first to review

£795.00 £662.50 (Exc VAT)

In stock · Ready to Ship

Order in – for next working-day delivery

Trusted Since 2012

Secure Checkout

UK Stock & Dispatch

Engineer-Led

WHY IT WORKS

Built for the job

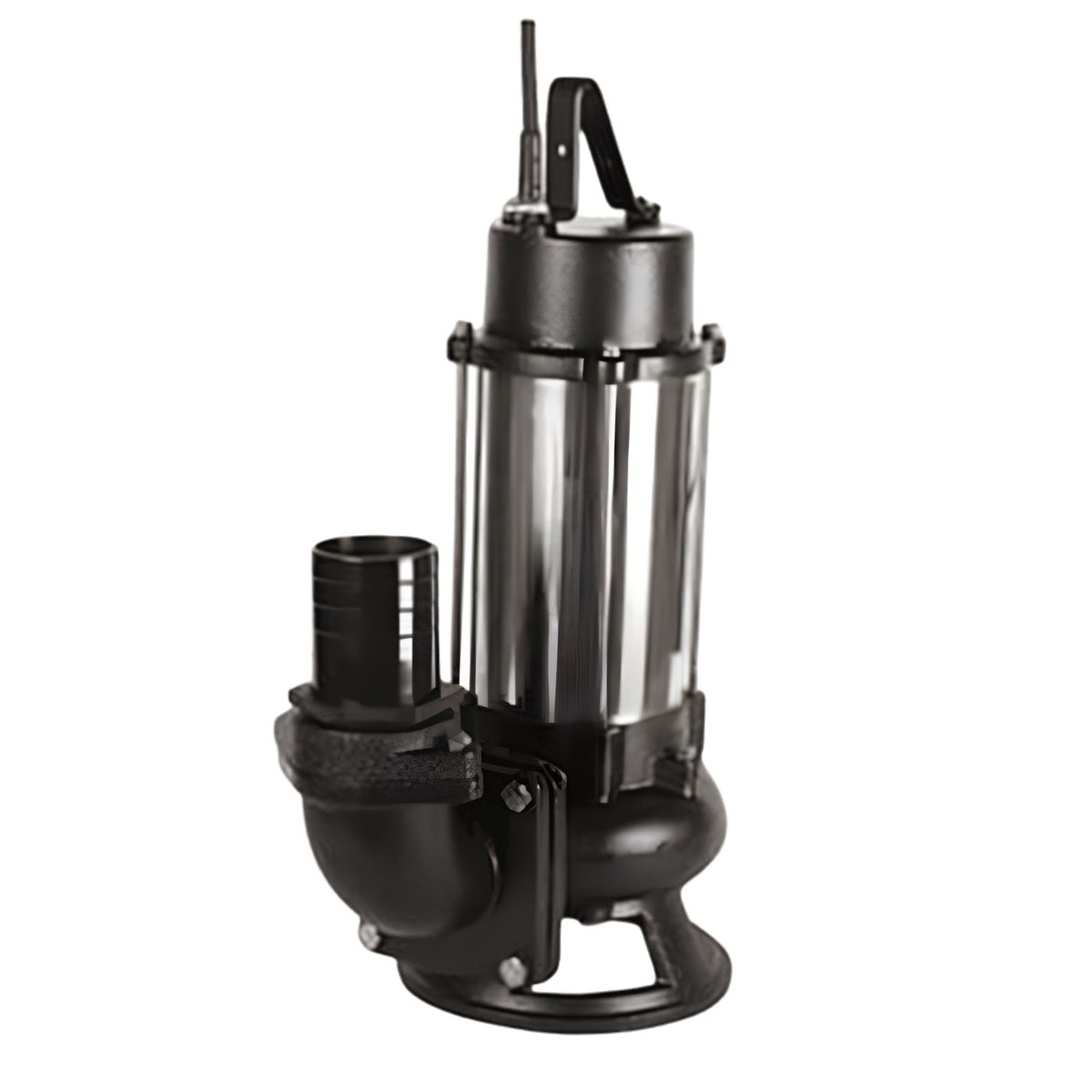

APP DSPK Submersible Cutter Pump – Heavy‑Duty Sewage & Wastewater Solids Shredding Solution

The APP DSPK Submersible Cutter Pump is designed for pumping sewage and wastewater containing solids. It uses a tungsten-tipped impeller to shred fibrous materials, preventing blockages. Ideal for domestic, commercial, and industrial applications, it reliably handles dirty water in sumps, basements, treatment plants, and sewage systems.

Applications

The DSPK (formerly DSK) range of submersible cutter pumps are ideal for heavy duty settings, and breaking down solids in sewage. This is useful when solids restrict the free movement of liquid.

These pumps have a two-year manufacturer’s guarantee and are suitable for domestic or industrial use, including in basements and in waste tanks.

Construction and Build Quality

The DSPK Sewage pumps are constructed in cast iron and 304 stainless steel, fitted with a tungsten carbide tipped single channel, cast iron impeller which rotates against a serrated suction cover. The 410 stainless steel shaft is fitted with a mechanical seal and oil seal, in an oil chamber for excellent wear resistance.

Single phase models are available with or without a float switch.

Key Features

High-Efficiency Solids Cutting: The defining feature of the DSPK series is its cutter impeller system. By chopping up solids at the intake, the pump can reliably move sewage laden with wipes, sanitary products, or fibrous matter without clogging.

Heavy-Duty Build for Sewage Applications: These pumps are engineered for demanding environments. The cast iron pump body and impeller provide the strength and durability needed for abrasive or corrosive sewage and waste water.

Wide Performance Range: Whether you need to empty a small septic sump or pump from an industrial waste pit, there’s a DSPK model to match.

Flexible Installation Options: The DSPK pumps are designed with installation flexibility in mind. Free-standing installation is straightforward – the pump has a stable base and an ergonomic handle, so it can be placed at the bottom of a tank or pit and easily retrieved by the handle or an attached chain. For more permanent setups, an auto-coupling guide rail kit can be used (available for all sizes). The guide rail system includes a dock at the sump bottom and twin guide pipes; the pump slides down to automatically connect to the outlet elbow. This allows easy removal for inspection by simply pulling the pump up the rails

Typical Applications

Domestic Sewage and Wastewater Systems
Septic tank effluent pumping
Commercial Buildings and Facilities
Industrial and Process Wastewater
Municipal and Emergency Sewage Bypass
Wastewater pumping stations
Environmental and treatment facilities
Floodwater that may carry debris

Supplied with 10 metres of heavy duty rubber power cable.

What's in the Box:

1 x DPSK Pump
1 x 10m Heavy duty rubber power cable
(DSPK 10 & 20 models also come with hose tail)

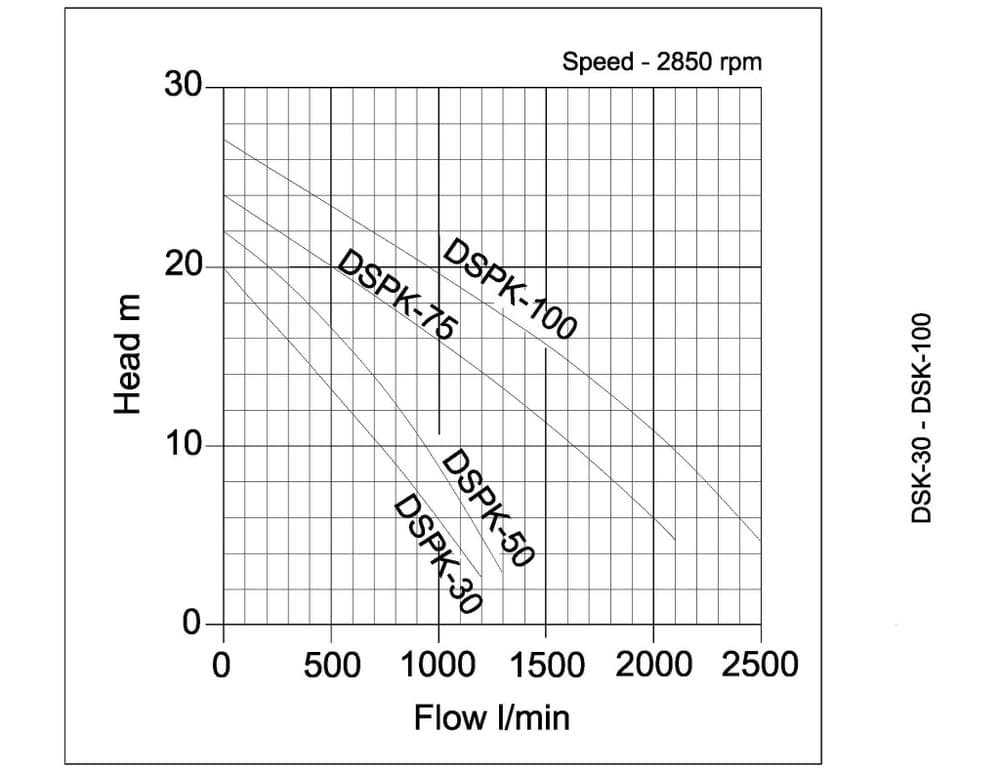

SPECIFICATIONS

Full spec sheet

DSPK specifications
Model	DSPK-10	DSPK-10 Auto	DSPK-20	DSPK-20 Auto	DSPK-30	DSPK-50	DSPK-75	DSPK-100
Manual/ Auto	M	A	M	A	M	M	M	M
Outlet/mm	50	50	50	80	80	80	100	100
Kw	0.75	0.75	0.75	1.5	2.2	3.7	5.5	7.5
Volt	110/230/400	110/230	230/400	230	400	400	400	400
Flow Ltr/min	430	430	430	700	1200	1300	2100	2500
Head/ m	20	20	20	20	20	22	24	27
W x L x H/ mm	190 x 255 x 445	190 x 255 x 445	238 x 376 x 590	238 x 376 x 590	245 x 430 x 625	245 x 430 x 625	300 x 505 x 770	300 x 505 x 815
Weight/ Kg	19.9	20.1	39.1	39.6	58	60	105	117
