APP MVH-10 Automatic Well Pump 230V – Irrigation & Sprinkler Systems
Built for the job
Automatic Submersible Well Pump for Water Butts, Irrigation and Sprinkler Systems
Float Switch Controlled Pump for Clean Water Applications

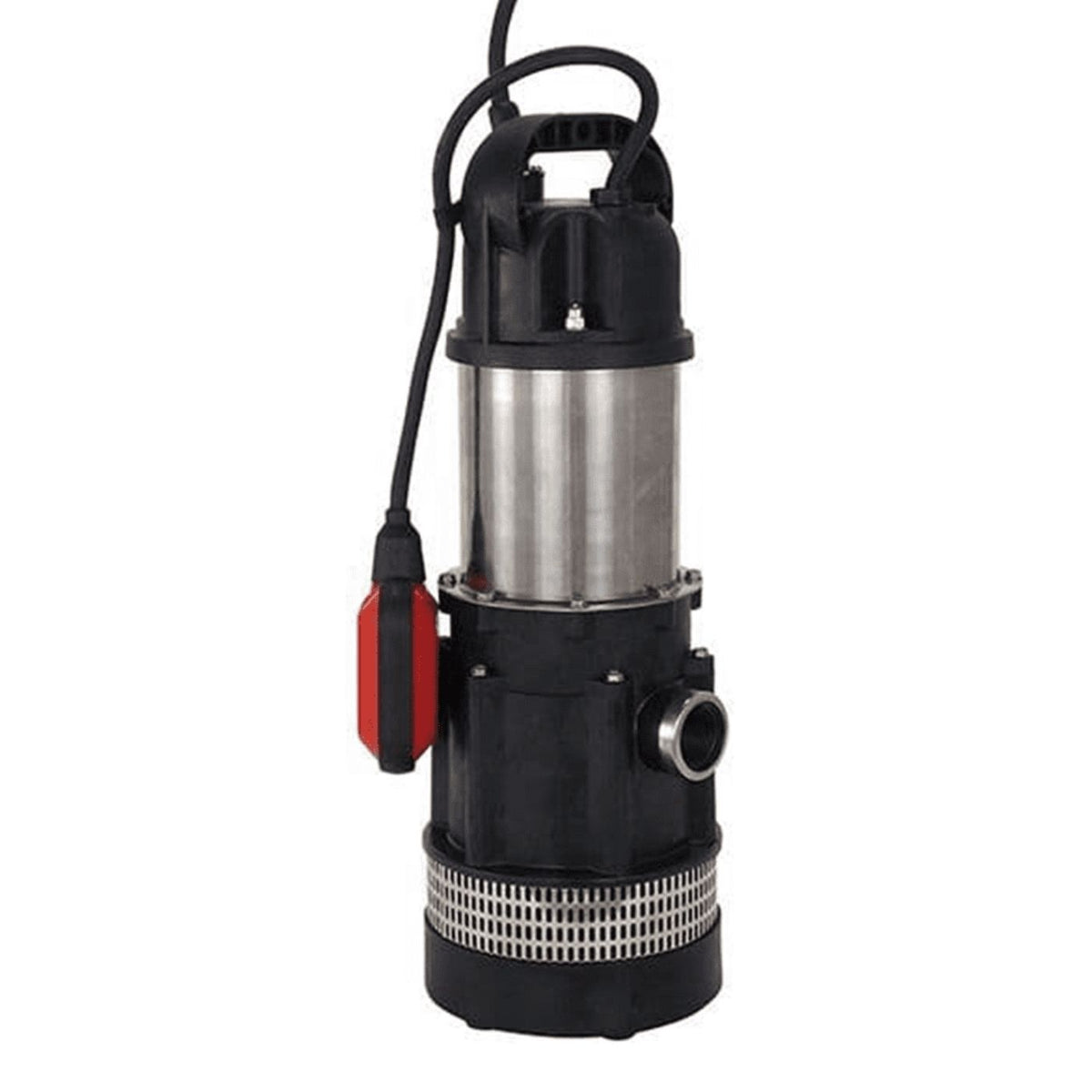

The MVH-10 is an automatic well pump designed for clean water use in tanks, water butts and irrigation systems, including rainwater.
The MVH-10 operates via a float switch, so it runs based on water level rather than demand. It runs while submerged and switches off automatically if the level drops. The pump can be powered on or off at the plug, but operation is still controlled by the float switch.
If you are running a garden irrigation system or sprinklers, this is typically a suitable option where water is discharged freely. For more options, see our full irrigation pump range.
Where this pump is typically used
The MVH-10 is commonly used for:
- Water butts and storage tanks
- Garden irrigation and sprinkler systems
- Rainwater harvesting
- Spraying and washdown
It is best suited to systems where water flows continuously when the pump is running.
Why choose the MVH-10
- Well suited to sprinklers and irrigation setups
- Automatic float switch operation (level-based)
- High pressure output for hose and spray use
- Robust stainless steel construction
- Compact and easy to install
- 230V single phase supply
How it operates
The MVH-10 is not pressure controlled.
- It does not start and stop when a tap is opened or closed
- It runs when submerged and switches off when the water level drops
If you need a pump that responds to taps or hose triggers, a pressure-controlled pump such as the Divertron is more suitable.
Build and design
The MVH-10 is built using corrosion-resistant and hard-wearing materials for long service life. Key construction features include:
- 304 stainless steel motor housing, strainer and reinforced outlet
- 410 stainless steel shaft
- Silicon carbide mechanical seal in a chamber of non-toxic oil
- Heavy-duty bearings for reliable operation
The casing, head cover, base plate and impellers are manufactured from thermoplastic to provide strength while keeping the pump lightweight. The pump includes an integral starting capacitor and is supplied with a 10 metre heavy-duty power cable.
The outlet is horizontal as standard. For vertical discharge, a nipple and female BSP elbow hose tail can be added.
Performance overview
- Head up to approx. 32 metres
- Flow up to approx. 110 litres per minute
- Maximum submersion depth: 8 metres
- Operating temperature: 0°C to 40°C
Installation
Designed to sit within a tank or water butt and operate automatically based on water level. Suitable for clean water such as rainwater and stored water. Not suitable for sewage or heavily contaminated water.
Important notes
- Designed for clean water only (not sewage)
- Not suitable for ponds or water features
- Not recommended for operation against a closed valve or nozzle
What's in the box
✅ MVH-10 pump
✅ 10m rubber power cable with 230V plug
Hose, hose tail or clips are not supplied and should be selected based on the intended setup (see hose tails and connectors).
