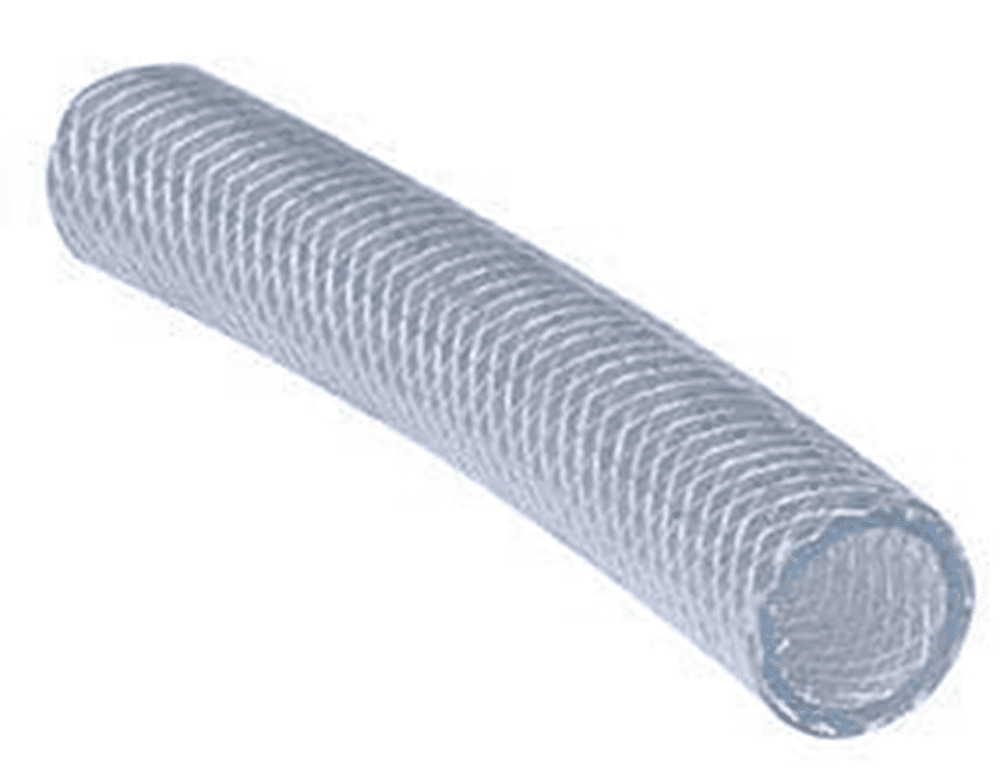

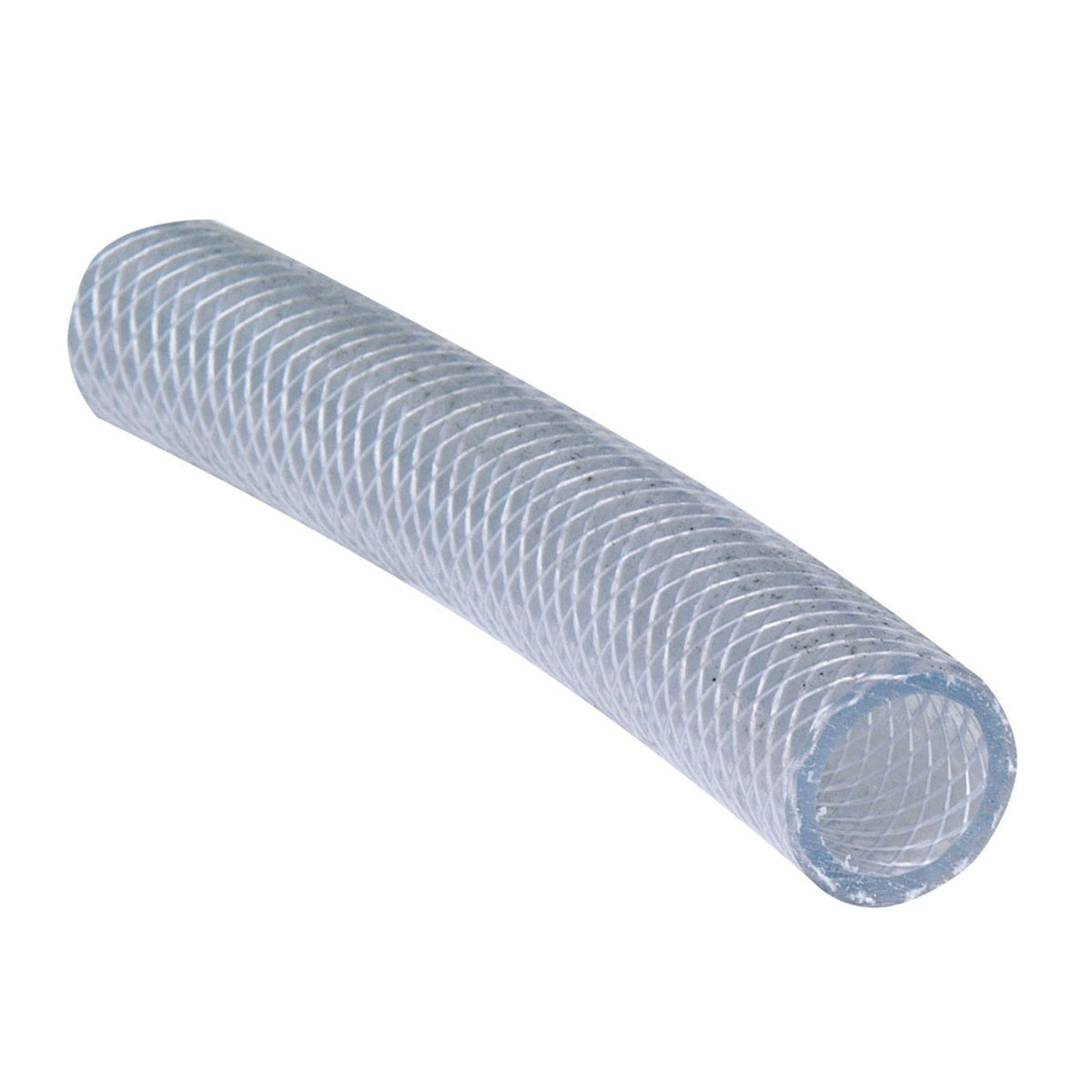

Braided Suction Hose 13mm Outlet
Built for the job
The ½" braided hose is the smallest and highest rated in the clear range, holding 12 bar through a transparent, polyester reinforced PVC wall. On fine, low volume lines the see-through wall earns its keep: you can watch every bubble, dose and blockage without breaking the connection.
It is the go-to for aquariums and marine tanks, reverse osmosis and dosing rigs, small pond and fountain pumps, lab benches and homebrew siphoning. The braid holds the bore open under vacuum, so it works on both the suction and delivery sides of small pumps. Supplied in 10m, 15m and 30m coils.
| Nominal size | 13mm |
|---|---|
| Inch equivalent | ½ inch |
| Actual internal bore | 12.5mm |
| Working pressure | 12 bar |
| Material | Clear polyester reinforced PVC |
| Coil lengths | 10m, 15m, 30m |
