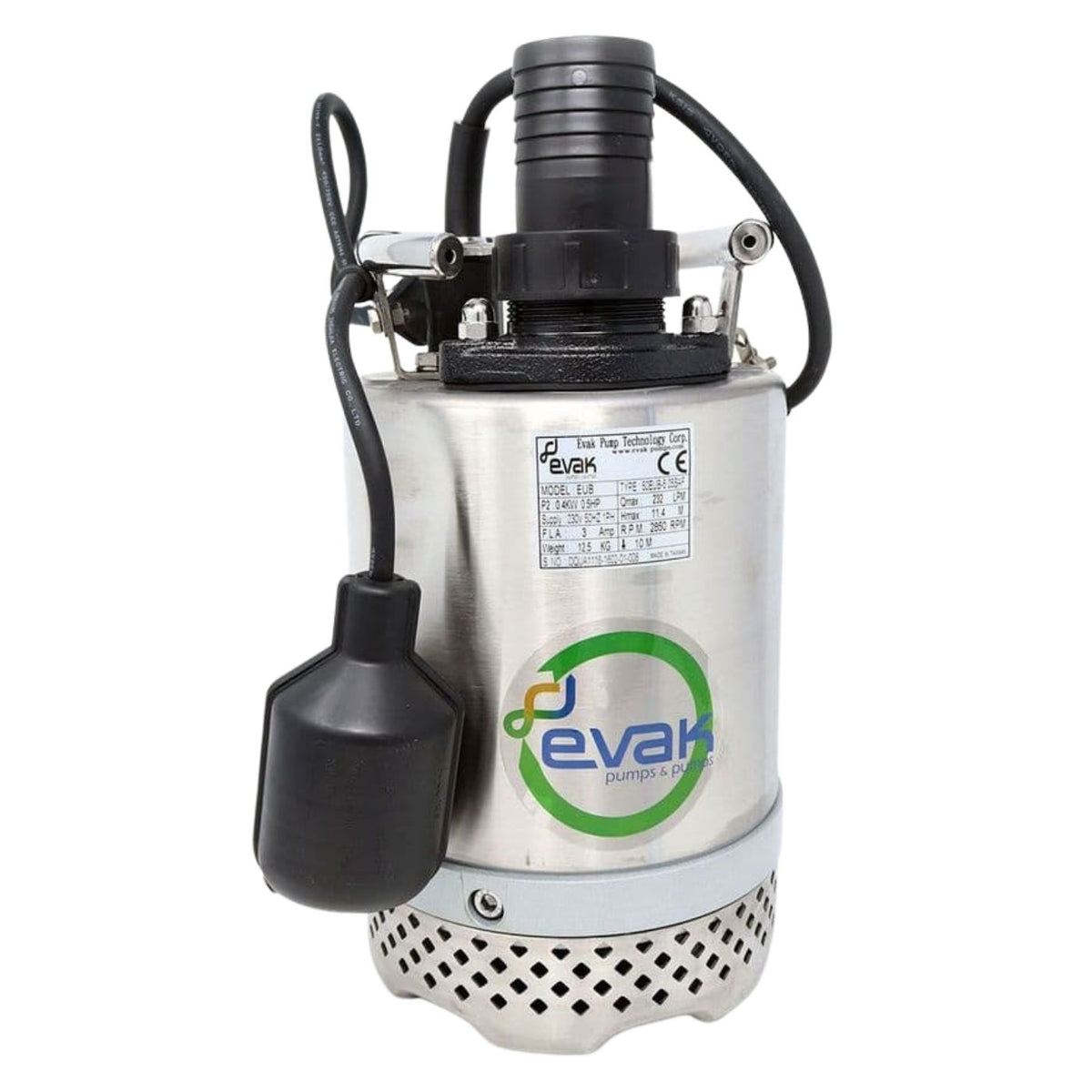

The Evak Drainox 400 and 750 are submersible site drainage pumps designed for the demanding conditions of construction sites, civils projects and flood response. With a stainless steel jacket, cast iron pump body and an abrasion resistant Hytrel vortex impeller, the Drainox is built to keep working in water that contains grit, silt and suspended solids.
• Construction site drainage and dewatering
• Civil engineering, mining and tunnelling
• Pumping out excavations, trenches and flooded areas
• Public works and contractor hire fleets
• Flood response and emergency dewatering
• Long term dewatering where abrasive water is involved
The Drainox is engineered for harsh site environments. The outer cover, handle and strainer base are formed in stainless steel, while the pump housing is FC20 cast iron and the motor housing and seal casing are ADC12 alloy, giving an extremely hard wearing structure that can take knocks and drops on site. The vortex impeller is moulded in Hytrel, a flexible abrasion resistant polymer that handles gritty water without rapid wear. Internally the pump runs a double mechanical seal in an oil chamber and an auto reset thermal protector for the motor, and ships with a 10 metre heavy duty H07RN-F cable.
The Drainox is a contractor grade dewatering pump available in the voltage you need, including 110V (manual or automatic), 230V automatic and 400V three phase, which suits temporary site duties through to permanent installations. The Hytrel impeller, double mechanical seal and rugged stainless and cast iron build give it the durability site work demands, while a minimum working water level of just 53 mm means it keeps pumping until very little water is left to lift. It is a strong choice for buyers who want a long life dewatering pump rather than a disposable one.
• Drainox 400: 400 W (0.5 HP), flow up to 225 l/min, maximum head 11 m
• Drainox 750: 750 W (1 HP), flow up to 300 l/min, maximum head 15 m
• Outlet: 2 inch BSP female with hose tail
• Free passage: 5mm small solids and grit handled by Hytrel vortex impeller
• Voltage options: 110V (manual or auto), 230V (auto), 400V three phase (manual)
• Motor speed: 2,850 RPM
• Minimum water level: 53 mm
• Weight: 13 kg (Drainox 400), 16 kg (Drainox 750)
• Cable: 10 m H07RN-F heavy duty rubber
Need something more powerful? Evak Drainox 1500 Site Drainage Pump
• 1 x Evak Drainox submersible pump
• 10 m heavy duty rubber power cable
• 50 mm hose tail
EVAK Pumps are a well-established manufacturer of high-quality submersible pumps. Founded in 2009, EVAK designs and manufactures its pumps in Taiwan and supplies them globally, with a strong reputation for reliability and engineering quality.

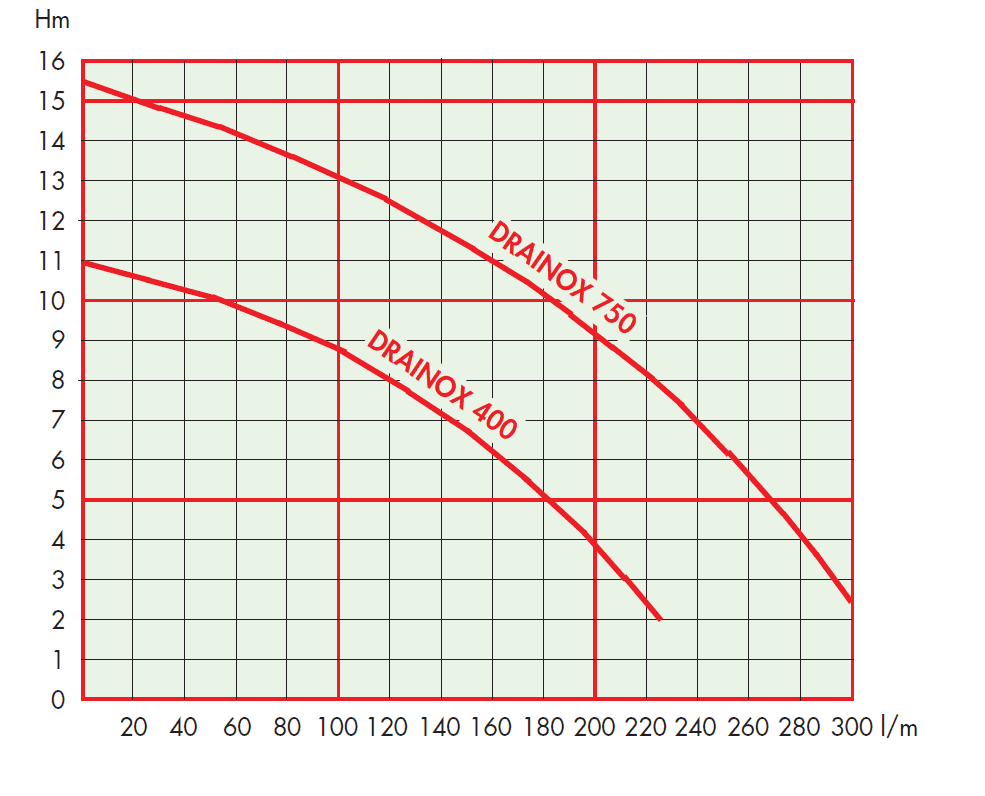

| Model | Drainox 400 Manual | Drainox 400 Auto | Drainox 750 Manual | Drainox 750 Auto |
| Manual/ Auto | M | A | M | A |
| Outlet/ mm | 50 | 50 | 50 | 50 |
| Kw | 0.40 | 0.40 | 0.75 | 0.75 |
| Volt/V | 110/400 | 110/230 | 110/400 | 110/230 |
| Flow ltr/min | 225 | 225 | 300 | 300 |
| Head /m | 11 | 11 | 15 | 15 |
| Free Passage/ mm | 5 | 5 | 5 | 5 |
| Diam x H /mm | 185 x 345 | 185 x 345 | 185 x 370 | 185 x 370 |
| Weight /Kg | 13 | 13 | 16 | 16 |
