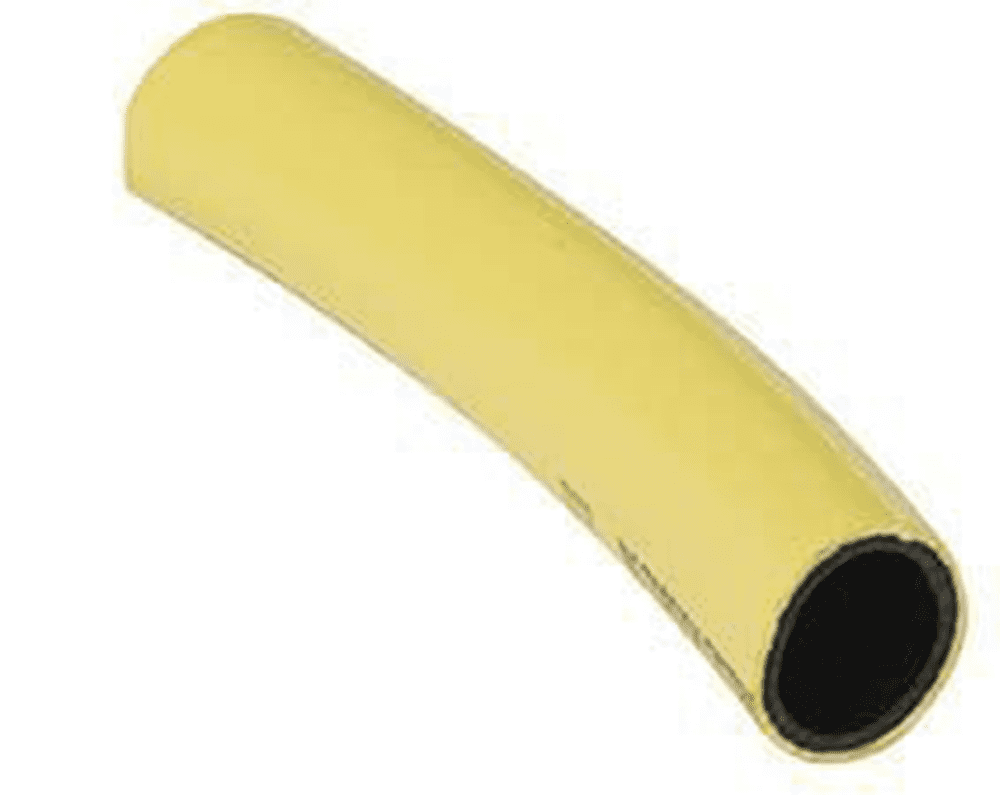

High Pressure Delivery Hose 25mm
Built for the job
Stepping up to a 1" bore roughly doubles the flow area over the ¾" size, so the 25mm hose moves more water while still holding a working pressure of 7 bar. It is the size to choose when a ¾" line is starting to throttle your pump and you need more volume through the same pressurised, kink resistant yellow PVC.
It pairs naturally with 1" transfer and booster pumps and suits larger irrigation zones, smallholding water networks and livestock trough filling. Food and drinking water safe for potable duties, UV resistant for outdoor installation, and supplied in 10m, 15m and 25m coils.
| Nominal size | 25mm |
|---|---|
| Inch equivalent | 1 inch |
| Actual internal bore | 25mm |
| Working pressure | 7 bar |
| Weight per metre | 0.42 kg/m |
| Drinking water safe | Yes, food and potable certified |
| UV resistant | Yes |
| Coil lengths | 10m, 15m, 25m |
