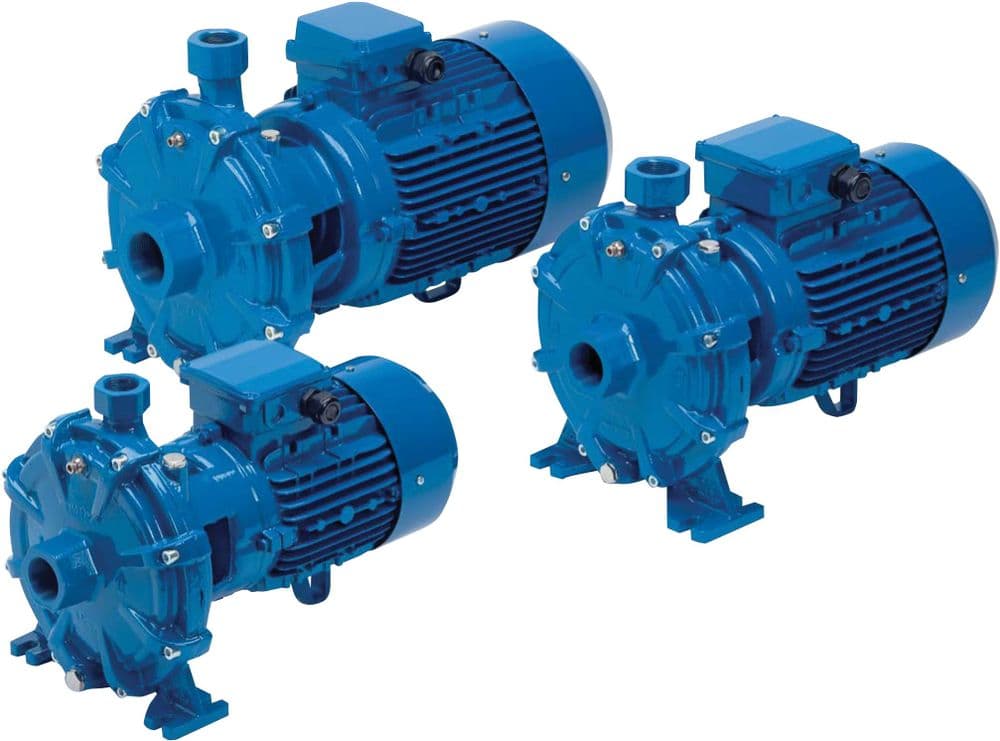

Speroni 2C(M) Twin-Stage Centrifugal Pump | Sprinklers & Transfer

Name: Speroni 2C(M) Twin-Stage Centrifugal Pump | Sprinklers & Transfer
Brand: Speroni
SKU: 19-15-1280
Price: 519.00 GBP
Availability: InStock

Be the first to review

£519.00 £432.50 (Exc VAT)

In stock · Ready to Ship

Order by 2pm Monday to Friday for same day dispatch.

Competitive pump prices

Secure Checkout

UK Stock & Dispatch

Engineer-Selected

WHY IT WORKS

Built for the job

Supplied as: 1 x Speroni 2C or 2CM twin-stage pump (model as ordered).

Twin-stage cast iron centrifugal pump for sprinklers and agricultural pressurisation, between single-stage and multistage.

PLEASE NOTE: This item is not available for next day delivery and is ordered from the manufacturer, please check lead times before ordering.

The 2C(M) is a twin-stage centrifugal pump: two impellers mounted on a single shaft, arranged in series so each impeller adds pressure to the flow from the one before it.

This puts the 2C(M) in between single-stage pumps (simpler but lower pressure) and full multistage pumps (more impellers, higher pressure still, but more complex).

The twin-stage design is the sweet spot for many agricultural and horticultural applications. You get genuinely useful pressure at meaningful flow rates, from a robust cast iron pump that will run reliably in farm conditions.

Where the Speroni 2C and 2CM are Used

Agricultural sprinkler systems. Horticultural irrigation. Non-potable pressurisation of water supply on farms and smallholdings. Industrial water transfer with a pressure requirement. Mixing and circulating duties in processing. Washing systems requiring consistent pressure.

The 2C(M) is often the correct answer when a single-stage centrifugal pump does not have enough head and a full multistage pump is more than you need.

Operating Conditions: Continuous duty | Max. ambient temp: 40°C | Max. suction lift (+ foot valve): 7 mtrs

Fluid: Clean water | Temperature: 0 - 90°C

Choosing Between the Speroni 2C(M) Models

The larger 2C 32/190A is only available in 400V three-phase. Pick based on the flow and head you need, stepping up in motor size as demand increases.

On the model codes, 25/160 and 32/190, this follows the European pump industry standard (EN 733 / DIN 24255 sizing). The first number (25 or 32) is the nominal outlet size in mm (25mm = 1", 32mm = 1¼"). The second number (160, 180, 190) is the nominal impeller diameter in mm.

An M at the end of the model name (CM, RSM, RVM, CAM) means 230V single-phase. No M means 400V three-phase.

Not Self-Priming

The 2C(M) is not self-priming. It needs flooded suction, or a primed suction line with a foot valve.

Important: WRAS Approval

This pump is not WRAS approved and is not for drinking water supply. It is suitable for irrigation, sprinklers, fire systems, rainwater harvesting, cooling loops, and industrial or agricultural water.

SPECIFICATIONS

Full spec sheet

2C(M) specifications
Model	2CM 25/160C	2C 25/160C	2C32/190A
Inlet/ mm (BSPF)	32	32	38
Outlet/ mm (BSPF)	25	25	25
Kw	1.10	1.10	4.00
Volt	230	400	400
Flow ltr/min	125	125	200
Head /m	56	56	88
W x L x H /mm	222 x 400 x 265	222 x 400 x 265	272 x 495 x 340
Weight /Kg	23	23	53

Common questions

What water can the Speroni 2C(M) twin-stage pump handle?

Clean water only, from 0 to 90°C. It is designed for agricultural sprinkler systems, horticultural irrigation, non-potable pressurisation on farms and smallholdings, and industrial transfer, mixing and washing systems that need consistent pressure. It is not WRAS approved, so it is not for drinking water supply, and it is not for dirty water or solids.

Is the 2C(M) self-priming?

No. It needs flooded suction, with the water at or above the pump inlet, or a primed suction line with a foot valve. With a foot valve, the maximum suction lift is 7 metres. Fill the pump and suction pipe with water before starting.

See: Brass Foot Valve & Stainless Strainer

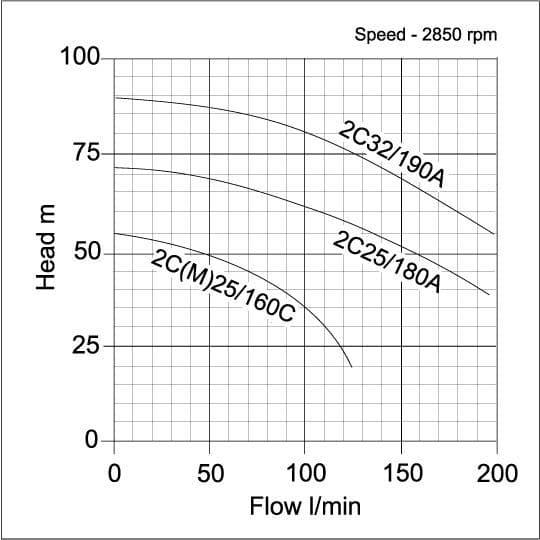

How much flow and pressure does the 2C(M) give?

The 2CM 25/160C and 2C 25/160C give up to 125 litres per minute and 56 metres head from 1.1 kW. The 2C 32/190A gives up to 200 litres per minute and 88 metres head from 4 kW. Two impellers on one shaft work in series, each adding pressure, so it gives more head than a single-stage pump of similar size.

When should I choose a twin-stage 2C(M) instead of a single-stage pump?

When a single-stage centrifugal pump does not give enough head and a full multistage pump is more than you need. For example, at 1.1 kW the single-stage Speroni C(M)35 gives up to 140 litres per minute at 36 metres, while the 2CM 25/160C gives up to 125 litres per minute at 56 metres. That extra pressure suits sprinklers and pressurisation.

See: Speroni C(M) Single-Impeller Centrifugal Pump

Is the 2C(M) available in single phase?

Yes, the 2CM 25/160C is 230V single phase. The 2C 25/160C is the same pump with a 400V three-phase motor, and the larger 2C 32/190A is only available in 400V three phase. All have IP55, Class F motors rated for continuous duty.
