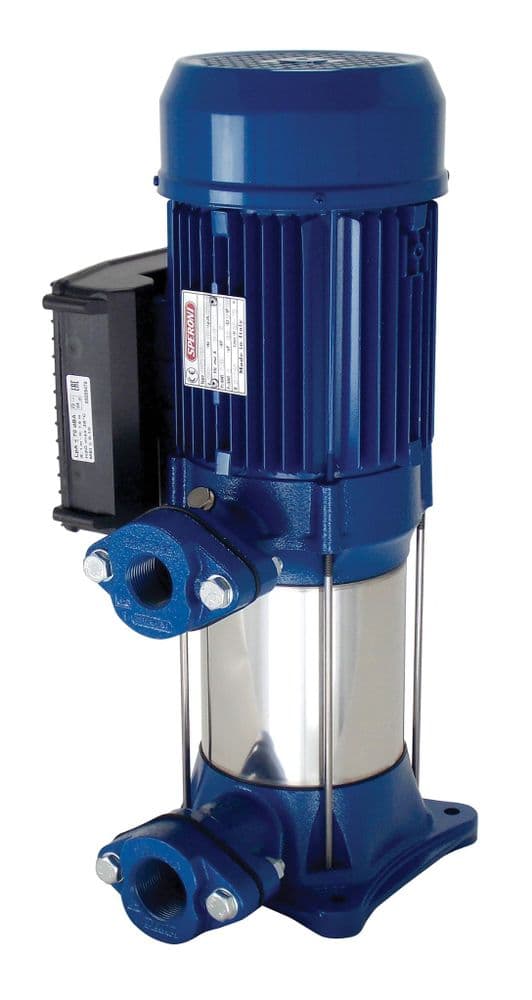

Speroni RV(M) Vertical Multi-Stage Pump

Vertical multistage pump, same performance as the Speroni RS(M) but with a smaller footprint for tight plant rooms.

The RV(M) by Speroni Pumps is a vertical multistage booster pump. It does the same job as the horizontal RS(M) range (high pressure from a quiet, continuous-duty design), but stacked vertically instead of laid out horizontally.

• This matters when floor space is tight: pressurisation plant rooms, commercial building risers, and packaged booster sets all benefit from a smaller footprint.

The RV(M) are non-self priming, multi-staging, horizontal centrifuge pumps. For the pumping of only clean water.  Multistage pumps build pressure by stacking impellers in series. The RV(M) range goes up to eight stages.

Where the Speroni RV and RVM are Used

Sprinkler system pressurisation. Fire-fighting booster systems. Industrial and commercial cooling loop circulation, plus horticultural and industrial applications.. Condensate and process water circulation. Multi-storey stored-water systems (not direct mains). Washing and processing lines where floor space is limited. Packaged booster set assemblies for non-potable water. Virtually silent operation makes these suitable for installations in or near occupied spaces.

Horizontal or Vertical?

Choose the RV(M) over the horizontal RS(M) when floor space is the constraint. The RV(M) takes a smaller footprint but stands taller. Performance is broadly equivalent at the same power rating. The 3kW version is only available in 400V three-phase.

Important: WRAS Approval

This pump is not WRAS approved and is not for drinking water supply. It is suitable for irrigation, sprinklers, fire systems, rainwater harvesting, cooling loops, and industrial or agricultural water.
