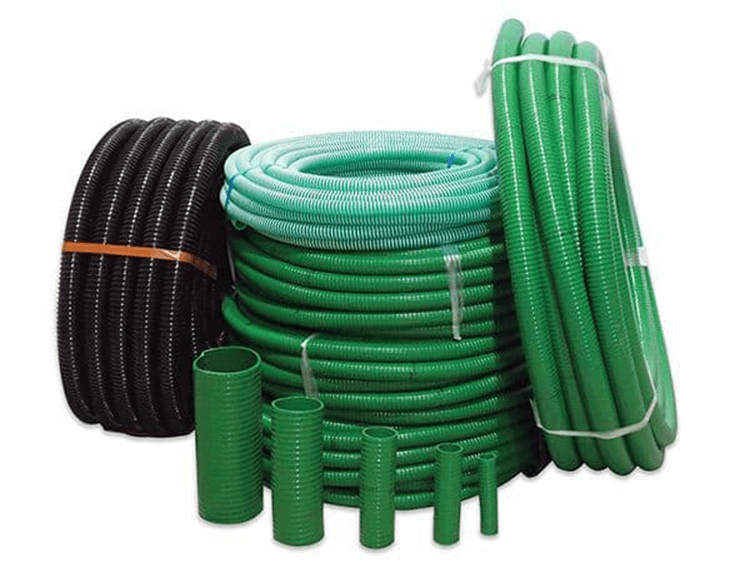

Our 19mm (¾ inch) suction and delivery hose is the smallest bore in the range, made for light-duty, low-flow jobs where a full-size hose would be overkill. The rigid yet flexible PVC wall carries an embedded nylon spiral-helix that stops it collapsing under suction or folding flat around bends, so it holds full flow even on the inlet side of a small surface pump.
It is the natural choice for compact transfer and garden duties: water butt pumps, small submersible and transfer pumps, low-volume irrigation feeds and window-cleaning setups. At just 0.28 kg per metre it is easy to coil, carry and reposition, and like every hose in the range it works on both the suction and delivery side and can be buried for semi-permanent runs. Rated to 7 bar and available in 6m, 10m, 15m, 20m and 30m coils.
| Nominal size | 19mm |
|---|---|
| Inch equivalent | ¾ inch |
| Actual internal bore | 19mm |
| Working pressure | 7 bar |
| Weight per metre | 0.28 kg/m |
| Coil lengths | 6m, 10m, 15m, 20m, 30m |
No spec data found. ESC Size Charts will auto-populate when this product is tagged with one of the chart keys (e.g. 2AL, 2C(M), 50PNI) in the ESC dashboard. Alternatively, add JSON metafields under
specs.performance, specs.electrical, specs.build, and specs.support
to populate this table directly.
Layflat hose is very affordable but can kink. Depending on your use, you may be better using a reinforced suction delivery hose for your needs.
Suction delivery hose is ideal for pumping up stairs or over obstacles.
Jonathan Martin explains the differences to help you choose which hose is best for your scenario.
Floodandwaterpumps.co.uk has been specially designed to simplify the types of pumps into categories to make choosing the best pump for your requirements easy.
We are often asked how to attach the hose to a pump, and have created this 'how-to' video to demonstrate. The pump and accessories listed are all available at floodandwaterpumps.co.uk
