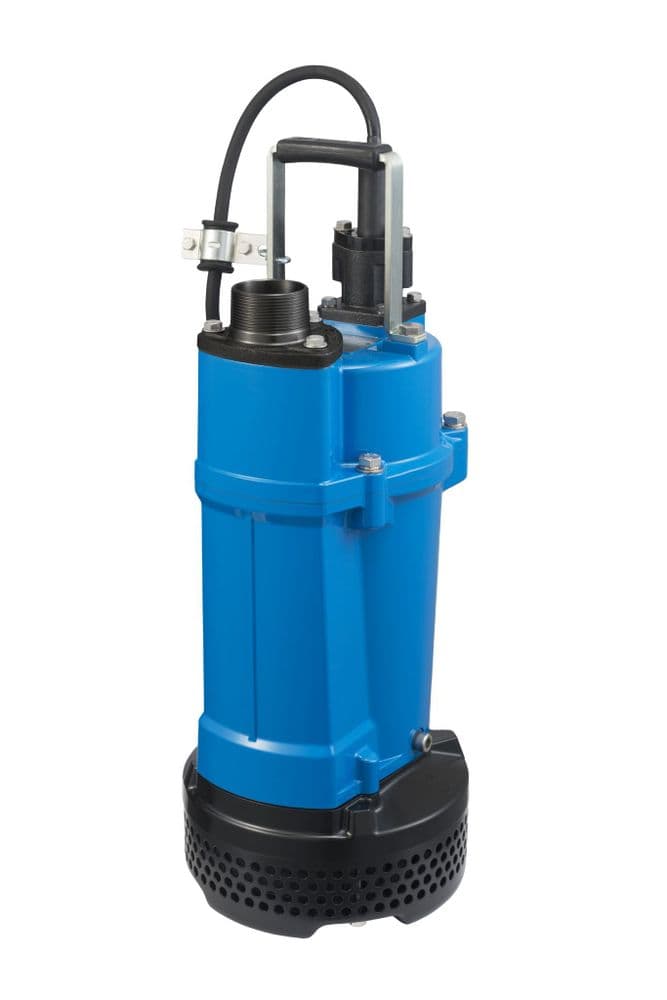

Tsurumi NK High Head Submersible Water Pump

Single-Phase High-Head Submersible Drainage Pump for Large Flows at Depth

The Tsurumi NK is a single-phase submersible drainage pump designed to deliver large flows at high heads, making it suitable for applications where other single-phase submersibles cannot sustain performance at depth. The top discharge design forms a water and air-cooling channel that enables long periods of operation in seepage conditions. An integral starting capacitor is built into each model for direct connection without external controls. Suitable for spring water, rainwater and water containing sand.

What is the Tsurumi NK used for?

•    High-head drainage where large flows are required
•    Seepage and groundwater management
•    Construction dewatering at depth
•    Applications requiring single-phase supply at elevated head

Construction and Durability

The NK4-22 features a ductile iron (FCD700) impeller and a natural rubber pump casing, with an aluminium alloy motor frame and SUS403 stainless steel shaft. The NK3-22L uses a chromium iron HiCrFC impeller and FC200 grey iron casing, with SUS420J2 stainless steel shaft. Both models use a double mechanical seal in an oil bath with an oil lifting device; both primary and secondary seals are silicon carbide on silicon carbide. Each pump is supplied with 20 metres of H07RN8-F cable and has a discharge size of 2" (NK4-22) or 3" (NK3-22L). Free passage is 6mm on both models. IP rating: IP68.

Why choose the Tsurumi NK?

The NK series is engineered to overcome the head limitation that restricts most single-phase submersible drainage pumps. The top discharge configuration doubles as a cooling channel, allowing the motor to run effectively even in shallow water or seepage conditions. The integral capacitor simplifies installation: no control panel or external capacitor is required. Available as NK4-22 (2" outlet, 2.2kW, max head 24m) and NK3-22L (3" outlet, 2.2kW, max head 18m, higher flow).

Operational Details

•    Suitable for: spring water, rainwater, water containing sand
•    Free passage: 6mm
•    Seal: double mechanical in oil bath with oil lifter; both stages SiC on SiC
•    Discharge: NK4-22 = 2" (50mm); NK3-22L = 3" (80mm)
•    Cable: 20 metres H07RN8-F
•    Available models: NK4-22 (2.2kW, max head 24m, max flow 525 l/min) and NK3-22L (2.2kW, max head 18m, max flow 800 l/min)
•    Supply: 230V single phase
•    IP rating: IP68, max pressure resistance 25m

What's in the box

•    Tsurumi NK submersible drainage pump
•    20-metre H07RN8-F cable
