The Tsurumi OM5 submersible pump range is a proven and dependable solution for drainage in basements, sumps, chambers, and catchment pits, suitable for both domestic and industrial applications. Superseding the popular OM4 model, the OM5 builds on its predecessor’s reputation with improved efficiency, reliability, and compact design.
Fully submersible and easy to install, the OM5 is a long-standing favourite with water companies and utilities, valued for its performance and durability.
The OM5 range is available in manual and automatic versions, allowing you to choose the level of control that best suits your application.
Manual pumps require switching on and off at the mains and are best suited to monitored or controlled installations, or when connected to other float switches in a monitored system.
Automatic models turn themselves on and off as water levels rise and fall, providing passive operation in unattended sumps and basements.

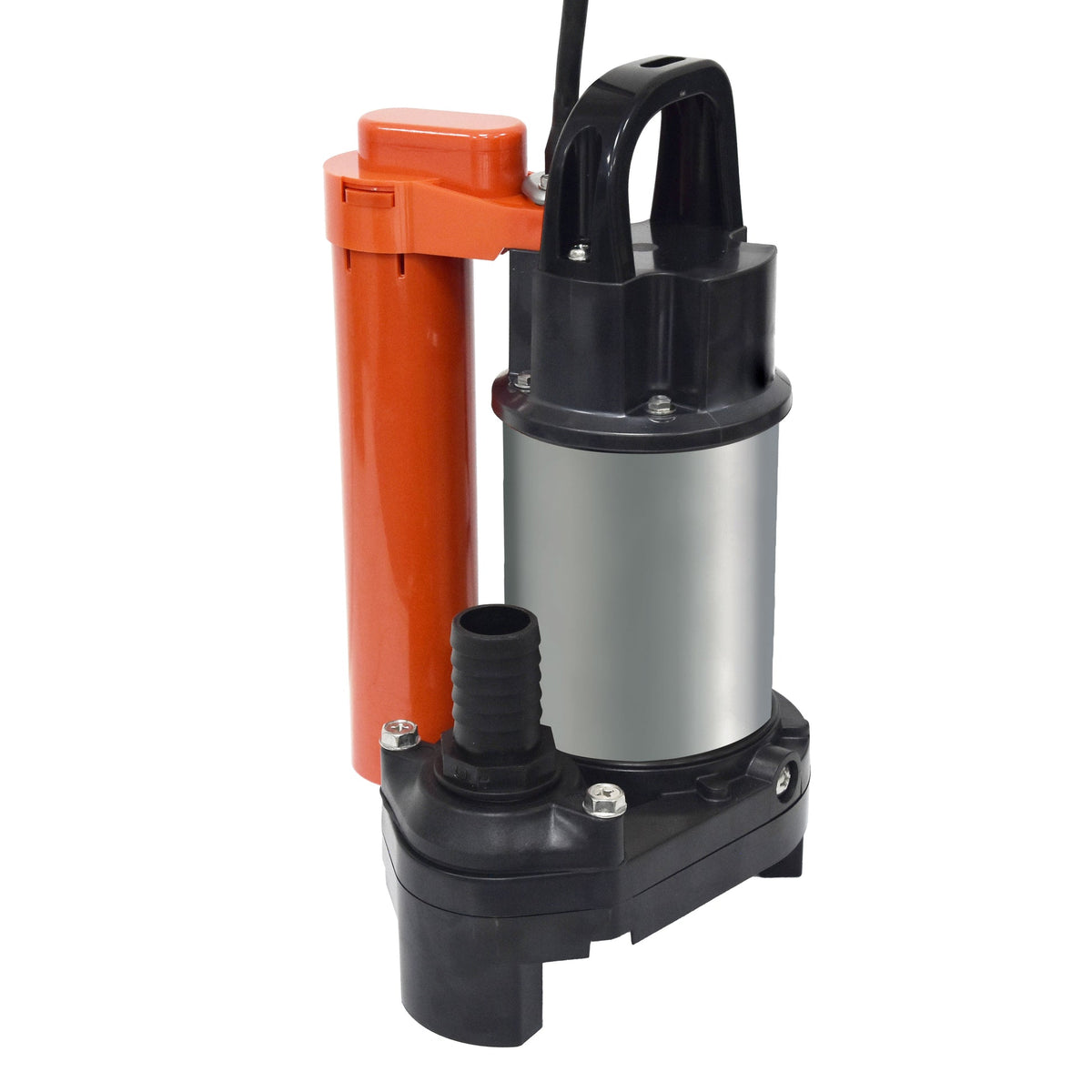

For automatic operation in tight or narrow sumps, the OMA5 uses a vertical tube float switch instead of a traditional pendant float. This design offers major practical advantages:
This makes the OMA5 a go-to choice where pendant floats would be unreliable or impractical.
The diagram below illustrates the advantages of the tube float design and why it performs so well in confined spaces compared with standard pendant floats.
Industrial models are designed for permanent or semi-permanent installations in sumps, chambers, and basements. As such, they are supplied without a plug or hosetail and are intended to be hard-wired.
Domestic models (230V only) are supplied ready to use and include:
This makes the domestic OM5 ideal for straightforward residential installations.
All models are supplied with a 10-metre heavy-duty power cable.
Please note:

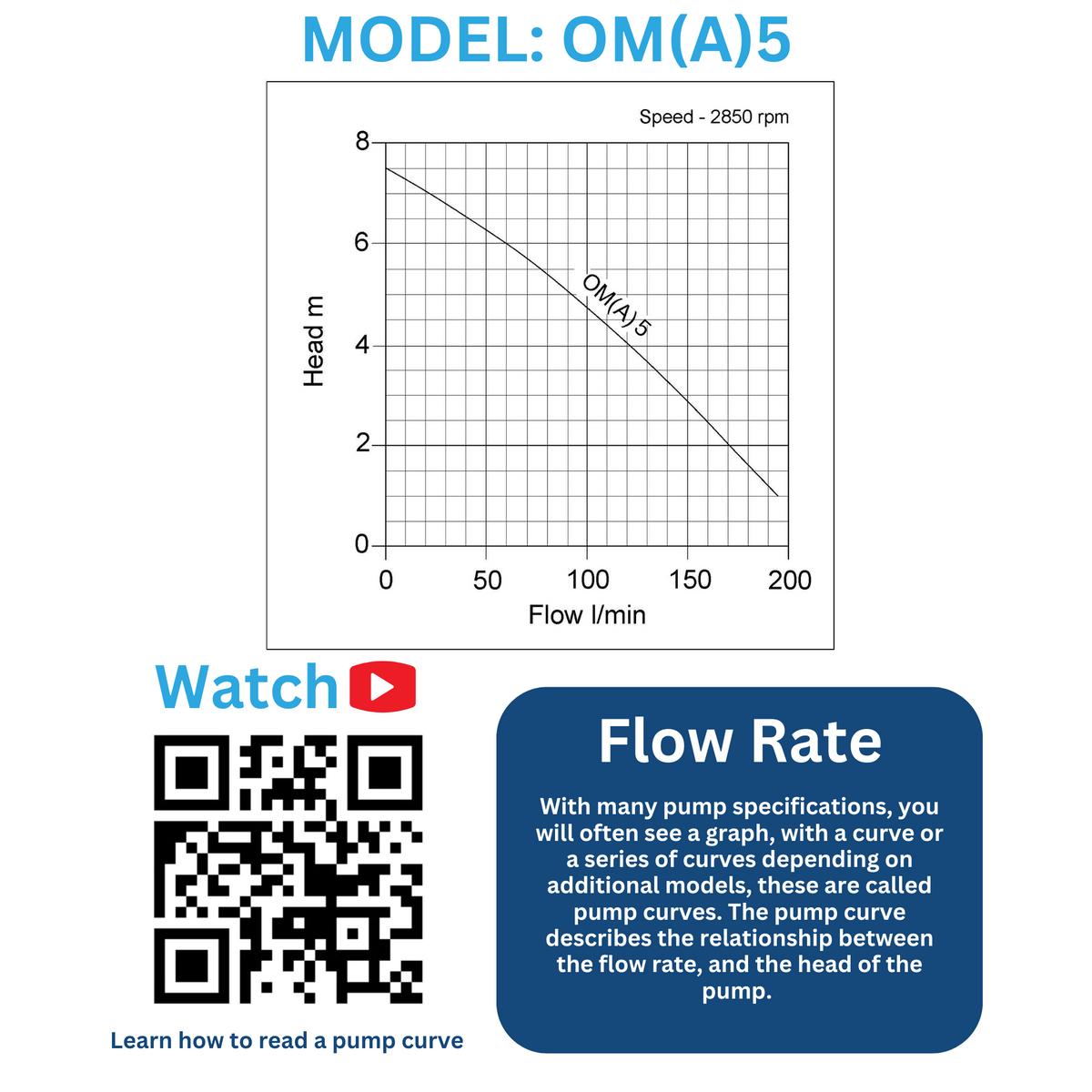

The OM5 range uses an energy-efficient 150-watt motor, delivering good flow and head for its size while keeping running costs low. Its compact size allows it to fit neatly into small sumps and chambers.
The OM5 range includes an integral vent valve, helping to prevent air locks during operation. This improves reliability, particularly in sump applications where air entrapment can otherwise interrupt pumping.
The pump is fitted with:
GFRP impellers reduce load on the motor and bearings, improving start-up performance and long-term reliability. The OM5 is suitable for clean and lightly contaminated water, but is not intended for ponds or water features.
Fluids: Clean water | Dirty water
Temperature range: 0–40°C
Applications: Domestic | Industrial | Utilities | Basements | Processing | Sumps
No spec data found. ESC Size Charts will auto-populate when this product is tagged with one of the chart keys (e.g. 2AL, 2C(M), 50PNI) in the ESC dashboard. Alternatively, add JSON metafields under
specs.performance, specs.electrical, specs.build, and specs.support
to populate this table directly.
Manual Pump - A pump that does not have a float control or pressure switch to start and stop. It will require an operator to control it.
Automatic Pump - A pump that has a float control or pressure switch to start and stop without an operator.
A float switch is a level controller that has a buoyant, water-tight device that lies
on a liquid, actuating a micro-switch when the level rises or falls, turning a pump on or off.
Layflat hose is very affordable but can kink. Depending on your use, you may be better using a reinforced suction delivery hose for your needs.
Suction delivery hose is ideal for pumping up stairs or over obstacles.
