Viscomat Oil and Lubricant Transfer Pump | Self-Priming Vane Pump for Oils up to SAE 140
Built to order. Please allow approximately 20 to 25 days for delivery.

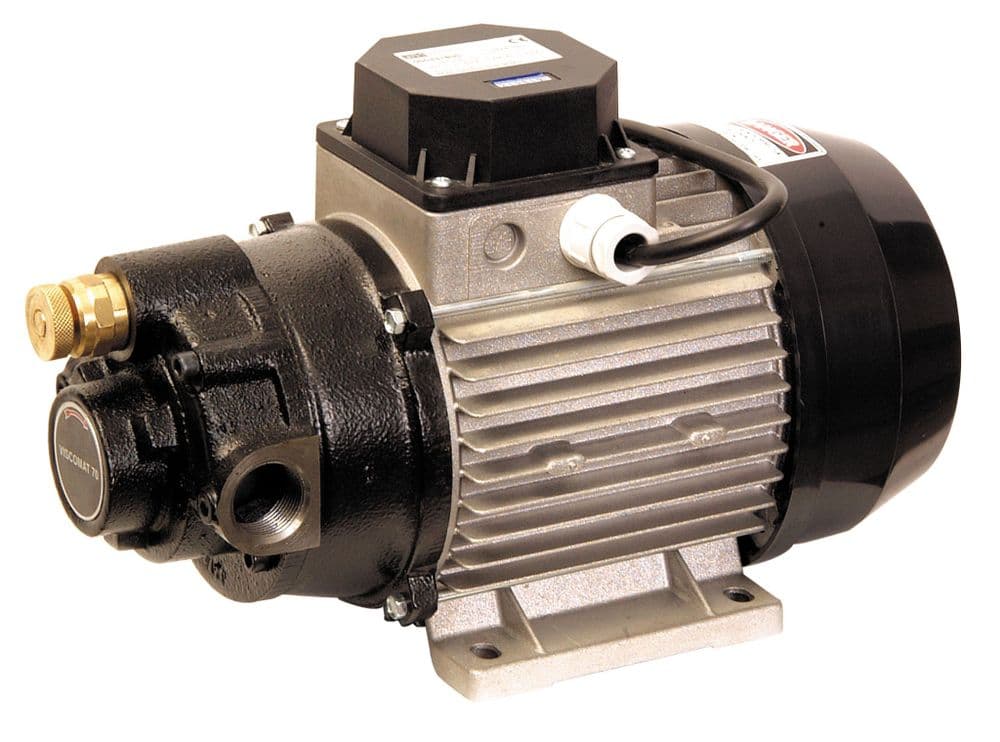

The Viscomat is a self-priming rotary vane pump for transferring engine oils, gear oils and lubricants from SAE 10W up to SAE 140, or up to 500 centistokes. It is built for workshop, industrial and on-site oil transfer. It is not a water pump and must not be used for diesel, petrol, water, chemicals, solvents or any low flash point liquid.
What is the Viscomat pump used for?
• Transferring engine, gear and hydraulic oils
• Workshop oil changes and lubricant top ups
• Bulk transfer from drums and IBC tanks
• Industrial gearbox servicing
• Agricultural and plant maintenance
• Mobile maintenance and utilities servicing
Construction and durability
The Viscomat has a cast iron pump body with a steel rotor and acetal resin sliding vanes, driven by an IP55 motor in a cast aluminium frame. An adjustable bypass valve is built into the pump, so it is protected for up to 2 minutes if the delivery is closed off, for example when a nozzle is shut.
Why choose the Viscomat?
A rotary vane pump is the right tool for viscous fluids. Unlike a centrifugal pump, it keeps drawing on thick oils, and the oil itself lubricates the pump as it runs. The built-in bypass valve means a delivery nozzle can be closed for a moment without damaging the pump.
Specification
| Model | Supply | Power | Max flow | Max head | Inlet / outlet | W x L x H | Dry weight | Part number |
|---|---|---|---|---|---|---|---|---|
| Viscomat 110V | 110V single phase | 1.2 kW | 30 L/min | 60 m | 1 inch / 1 inch BSPF | 145 x 330 x 230 mm | 13.2 kg | 12-25-1003 |
| Viscomat 230V | 230V single phase | 0.75 kW | 30 L/min | 60 m | 1 inch / 1 inch BSPF | 145 x 330 x 230 mm | 13.2 kg | 12-25-1014 |
| Viscomat 400V | 400V three phase | 0.75 kW | 30 L/min | 60 m | 1 inch / 1 inch BSPF | 145 x 330 x 195 mm | 13.2 kg | 12-25-1006 |
Performance is based on 80W oil at 20°C, with no foot valve and a 2 m x 25 mm (1 inch) suction hose. Flow changes with the viscosity and temperature of the oil: thicker or colder oil pumps more slowly.
| Detail | Value |
|---|---|
| Pump type | Self-priming rotary vane surface pump |
| Pump body | Cast iron |
| Rotor | Steel |
| Sliding vanes | Acetal resin |
| Motor frame | Cast aluminium, IP55 |
| Power cable | 1 m PVC |
| Bypass valve | Adjustable, protects the pump for up to 2 minutes against a closed valve |
| Maximum suction lift | 2.5 m |
| Fluids | Oils and lubricants up to 500 centistokes, SAE 10W to SAE 140 |
| Fluid temperature | 0 to 40°C |
| Maximum ambient temperature | 40°C |
| Not suitable for | Diesel, petrol, water, chemicals, solvents or any low flash point liquid |
| Optional extra | Full protection frame FR002 (12-85-1060) |
What's in the box
• 1 x Viscomat oil and lubricant transfer pump, supplied free-standing with a 1 m power cable
A full protection frame is available as an optional extra for easier handling.
Full spec sheet
| Model | Viscomat | Viscomat | Viscomat |
| Inlet/ mm | 25 | 25 | 25 |
| Outlet/ mm | 25 | 25 | 25 |
| kW | 1.20 | 0.75 | 0.75 |
| Volt | 110 | 230 | 400 |
| Flow Rate/ min | 30 | 30 | 30 |
| Head/ m | 60 | 60 | 60 |
| W x L x H (mm) | 145 x 330 x 230 | 145 x 330 x 230 | 145 x 330 x 230 |
| Weight /Kg | 13.2 | 13.2 | 13.2 |
