Best Pump for a Flooded Garage? Pumps, Drainage and Flood Protection Explained

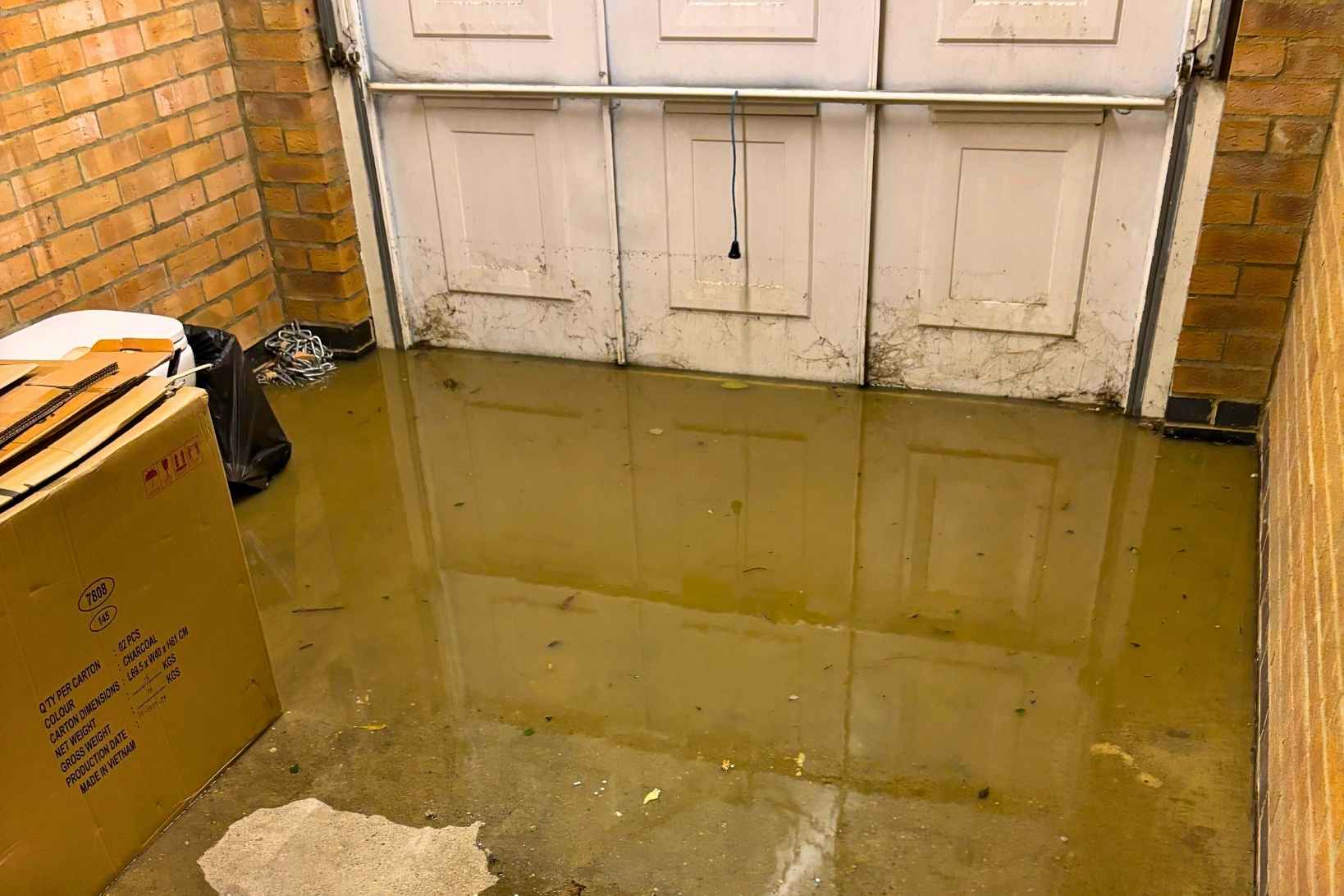

Garages are inherently vulnerable to shallow surface-water flooding.

To allow a vehicle to enter, the garage floor and doorway generally need to be relatively close to the level of the driveway or hardstanding outside. That can leave very little threshold height between runoff outside and the internal floor.

By comparison, conventional external walls to houses are normally detailed with the damp-proof course at least 150 mm above external ground level under Approved Document C guidance. That does not mean every house floor is exactly 150 mm above the surrounding ground, but it illustrates an important difference: garage entrances often have much less physical elevation available to resist shallow runoff.

Important: This article provides general product and flood-resilience guidance. It does not replace a site-specific flood survey, drainage investigation or flood-risk assessment. The appropriate solution depends on the flood source, depth, rate of inflow, drainage, levels, construction and whether a proposed measure could be bypassed or outflanked.

So, what is the best pump for a flooded garage?

For occasional shallow flooding where somebody will be present, a manual puddle pump can be ideal. For recurring shallow flooding that may happen overnight, an automatic floor-sensor pump is often more useful. For larger or repeated problems, the better answer may involve drainage, a sump or pump station, threshold protection, a flood barrier, waterproofing, or a combination.

First question: how is the water getting into the garage?

Before choosing equipment, try to understand the mechanism.

Surface water running down the driveway

During intense rainfall, runoff can follow the fall of a driveway directly towards the garage door. This is particularly common where there is a large impermeable area and little storage or drainage before the threshold.

A channel drain or gulley being overwhelmed

A drainage channel may cope with routine rainfall but exceed its capacity during a short, intense storm. A blocked outlet, inadequate pipe size or downstream restriction can make this worse.

A channel drain with surface water and rain

A defective or disconnected drainage system

If flooding is new, drainage investigation can be more valuable than simply installing a bigger pump. A broken connection, blocked pipe or poorly connected downpipe can concentrate water exactly where it is least wanted.

Water entering beneath or around the garage door

A relatively small depth of water outside can enter through gaps at the threshold and door edges. Because a garage opening is wide, even shallow inflow can spread quickly across the slab.

Groundwater or water through the structure

Water may also appear through cracks, construction joints, the wall-floor junction or the slab itself. That changes the problem from simply intercepting surface runoff to dealing with the construction and water pressure around the garage.

Second question: how much water actually gets in?

The amount and rate of water matter as much as the source.

A few millimetres during exceptional rainfall

If the problem is occasional shallow water at the garage entrance, a low threshold measure, local drainage improvement or portable puddle pump may be sufficient.

Around 10 to 30 mm recurring across the floor

Where shallow water arrives repeatedly and may occur unattended, an automatic low-level pump becomes much more useful because it can respond before the depth builds.

Water arrives continuously during the storm

At this point, compare inflow with the real pumping capacity of the proposed setup.

A pump moving 3,000 litres per hour will not hold the depth stable if 6,000 litres per hour are entering. The water level will still rise, simply more slowly.

The answer may therefore be greater pumping capacity, reduced inflow, better drainage or a combination.

Meaningful external flood depth builds against the garage

This moves the problem into wider Property Flood Resilience territory. A pump can still be part of the solution, but it should not be treated as a substitute for understanding the flood depth, entry routes, structure, levels and potential for a barrier or waterproofing measure to be bypassed.

Water Pump Options

Option 1: manual puddle pump for occasional shallow garage flooding

For occasional shallow water where somebody is normally present, the Small Flood Pump Kit using the Stream SPP2 is the simplest option in our range.

components of water pump kit for small floods

Visit the Small Flood Pump Kit ›

The pump provides:

up to 70 litres per minute maximum flow;
6 m maximum head;
pumping down to approximately 2 mm;
3 mm free passage for grit and light debris; and
manual operation.

Our FPS Engineered™ kit adds either 6 m or 10 m of 25 mm reinforced suction and delivery hose and the connection required to use it.

For somebody who is at home, sees water beginning to enter and wants to clear a garage floor quickly, that can be entirely adequate.

Option 2: Stream SPP2 automatic kit for recurring shallow garage flooding

If the problem is that the garage can flood while you are asleep or away, a manual pump sitting on a shelf does not provide automatic protection.

The FPS Engineered™ Automatic Puddle Pump Kit uses the Stream SPP2-4A with a separate floor sensor.

An automatic puddle pump with crab sensor on a patio in flood water

Visit the Automatic Home & Basement Kit ›

It starts automatically at approximately 20 mm of water and stops at around 10 mm. The kit includes 10 m of reinforced 25 mm hose, a non-return valve, hose tail and hose clip.

The maximum pump flow is 70 litres per minute. At around a 2 m lift through the supplied 10 m hose, typical operating flow is approximately 45 litres per minute, or 2,700 litres per hour.

For recurring but relatively modest shallow flooding, this is the budget automatic option I would look at first.

Option 3: Stream SPK530A for heavier-duty automatic use

If the garage is larger, the inflow is greater or the water needs to be lifted higher or moved through a more demanding route, the Stream SPK530A automatic kit is a substantial step up.

an automatic puddle pump kit

Visit the Commercial SPK530A Kit ›

The pump provides up to 170 litres per minute maximum flow and 11 m maximum head. It uses the same style of separate floor sensor, starting at around 20 mm and stopping at around 10 mm.

Through the 10 m of 25 mm reinforced hose supplied in our kit, estimated performance is around 5,650 litres per hour at a representative 3 m lift.

It also uses a polyurethane vortex impeller with cast aluminium and cast iron construction, making it better suited to repeated or heavier-duty use.

This is the option I would consider where the SPP2 is likely to be marginal on either capacity or head.

The pump can sometimes be outside the garage rather than inside it

If the source is runoff collecting in front of the garage, interception before the water crosses the threshold can be preferable to waiting for it to spread across the floor.

An automatic pump can sometimes be positioned in a suitable external low point or collection chamber and used to move water away from the garage before it enters.

That arrangement needs sensible thought around how water reaches the pump, electrical safety, pump stability and where the hose runs. A pump simply left loose on a sloping driveway is not a designed drainage system.

Option 4: improve the drainage, or use pumped drainage where gravity is not enough

Sometimes the best garage flood solution is not to rely on a portable pump at all.

If gravity drainage can be improved, it is inherently simple because it does not depend on electricity, controls or a moving pump.

Possible measures can include:

a channel drain across the garage entrance;
additional gullies or collection points;
repairing defective or blocked private drainage;
correcting local falls where practicable;
diverting roof water away from the vulnerable area; or
providing a more suitable gravity outfall.

Where the area is too low to drain by gravity, a pumped drainage system can be used instead.

Our real surface-water flooding case study shows exactly this principle. A low-lying area repeatedly ponded during heavy rain, with a roof downpipe worsening the problem. A new gulley and channel drain were installed to collect the water, which was then pumped because a gravity outlet was not available.

Channel drain installed with sump pump system

For a garage, a similar concept might be appropriate where runoff can be intercepted at the threshold and directed into a sump or chamber.

Option 5: a permanent sump or packaged pump station

Where garage flooding is recurring and the water can be collected into a defined low point, a permanent packaged pump station can provide a more engineered arrangement than leaving a portable pump on the slab.

The chamber stores incoming water, gives the pump a controlled operating depth and can allow automatic float control to work properly.

Our packaged pump station flood-control case study shows a system installed within a defended area where an automatic sump pump managed water that could collect behind the flood defences.

Subject to the flood risk, floor construction, available excavation depth and suitable discharge arrangement, a similar principle can be used for recurring garage or driveway drainage.

A yellow and gray submersible pump installed inside a circular drain opening in a concrete floor, with a black floor drain and textured beige walls in the background.

Other Considerations

A passive weatherstrip for very low-level surface water

Where the issue is low-level water tracking beneath the garage door, a passive threshold can be a useful measure in the right circumstances.

Flood Protection Solutions Ltd, the company behind Flood & Water Pumps, supplies the GaraDry Flood Barrier Seal, a floor-mounted thermoplastic threshold available in 40 mm and 50 mm heights.

It is intended for low-level surface-water flooding and can also help prevent leaves and debris blowing under the door.

This type of measure is attractive because, once installed, it is passive. There is nothing to deploy when the rain starts.

It is not suitable for every garage. The actual external flood depth, the door arrangement, the surrounding levels and whether water can simply go around the ends all matter.

A demountable flood barrier for greater external depths

Where more substantial flood depth can build against the garage opening, a proper flood barrier may be more appropriate than a small threshold strip.

The FPS Barrier® is a demountable aluminium barrier system that can be configured for garages as well as doors, driveways and other openings.

A barrier should be considered as part of the whole building rather than just the width of the garage door. The important questions include expected flood depth, adjacent walls, fixing surfaces, ground levels and whether water can outflank the barrier or enter through another route.

Wooden double garage doors set in a flooded outdoor area with muddy water covering the ground and white sandbags placed along the base of the doors and brick wall.

Waterproofing or tanking where water is entering through the structure

If water is entering through the garage walls, wall-floor junction or slab rather than only beneath the door, a threshold barrier alone is unlikely to address the complete route.

Depending on the construction and flood mechanism, waterproofing for enhanced flood resistance can include internal tanking, fillet seals at vulnerable wall-floor junctions, external treatments or repointing with suitable additives.

Continuity is critical. Waterproofing one face but leaving penetrations, joints or barrier fixings untreated can create weak points.

Historic construction also needs appropriate consideration because impermeable treatments can create unintended moisture problems.

Could the best solution combine several measures?

Absolutely, and in many cases that is the most robust approach.

For example, a recurring garage problem might ultimately use:

a channel drain to intercept runoff;
a small sump to collect it;
an automatic pump to move it away; and
a passive threshold or demountable barrier as a second line of defence.

Another property might need waterproofing around the wall-floor junction and an automatic pump for residual seepage rather than a barrier across the garage door.

The combination should follow the actual flood mechanism rather than a checklist of products.

A pump manages water. It does not remove the flood risk

A pump can be an excellent response to shallow garage flooding and, with automatic control, can significantly reduce the depth that develops while nobody is there.

But the best long-term solution may be to stop the water reaching the garage, intercept it with drainage, collect it in a sump, make the structure more resistant, or use several of those measures together.

If the garage has experienced significant, repeated or unexplained flooding, a detailed flood survey or risk assessment is the appropriate route to understand the source, levels, flow paths, construction and interaction between potential measures.

For straightforward product selection, our team can advise on the pumps and kits themselves. For site-specific flood-risk and survey advice, that needs to be treated as professional consultancy rather than inferred from a product enquiry.

Frequently asked questions

What is the best pump for a flooded garage?

For occasional shallow flooding with somebody present, a manual puddle pump such as the Stream SPP2 can be suitable. For recurring shallow flooding that may occur unattended, an automatic floor-sensor pump such as the SPP2-4A or heavier-duty SPK530A can be more appropriate. The required capacity depends on inflow, lift and hose arrangement.

Can I permanently install a pump in a garage?

Potentially. A low-level automatic pump can be left in a suitable location, but a permanent sump or packaged pump station may provide better collection and pump control where flooding is recurring. The floor construction, drainage and electrical installation need to be considered.

Would a garage door weatherstrip stop flooding?

A raised threshold such as the GaraDry strip can help with low-level surface water in appropriate settings, but it is limited by its height and can be bypassed if water travels around the ends or enters elsewhere.

Do I need a flood barrier as well as a pump?

Sometimes. A barrier aims to reduce water entering, while a pump manages water that reaches the protected area. Whether both are justified depends on the flood depth, entry routes, levels, construction and consequences of flooding.
