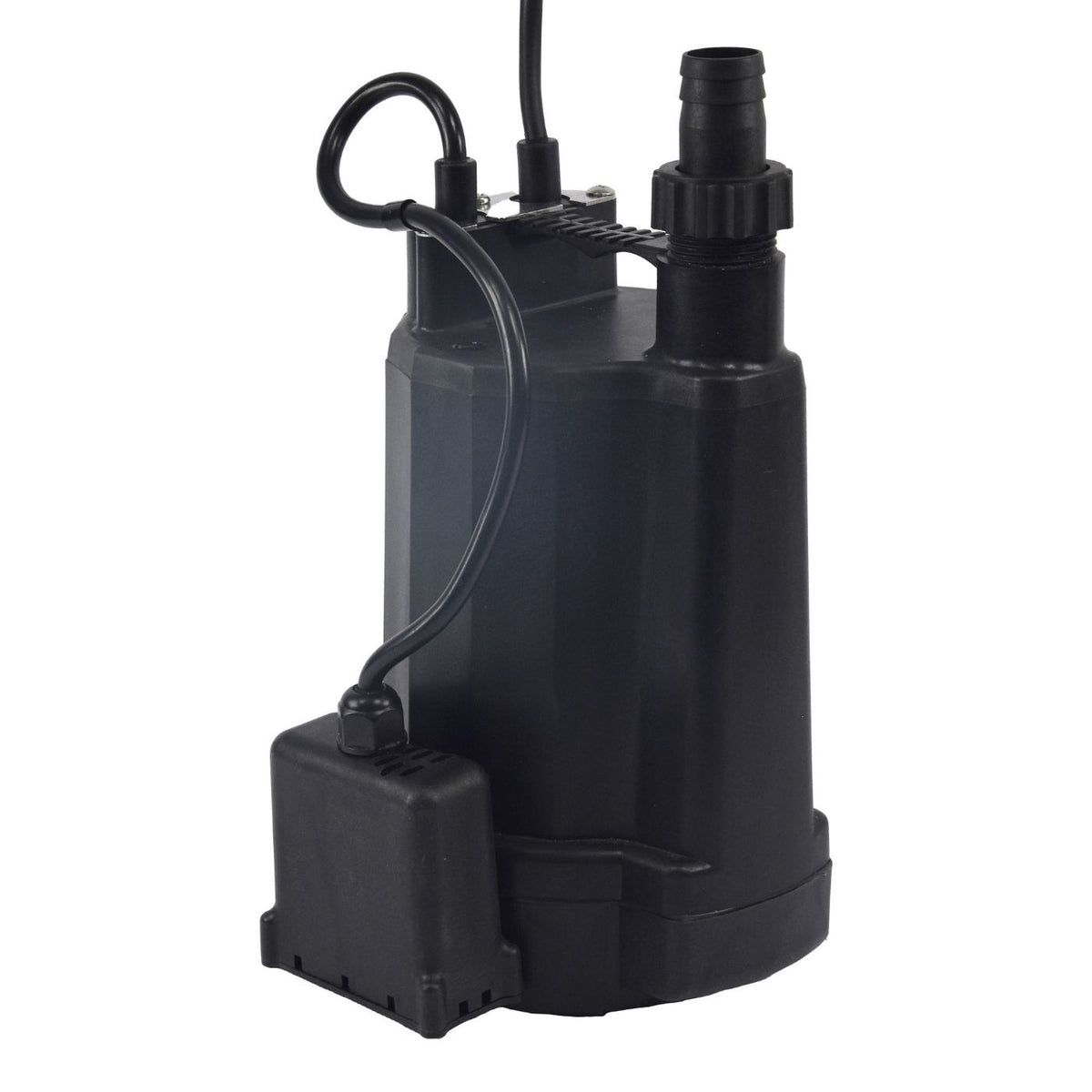

The BPS-100EA is an automatic puddle pump designed specifically for restricted spaces and shallow water control. It features a compact float switch that allows reliable automatic operation in narrow sumps and tight chambers, and it can pump down to as low as 3 mm. (Please note: the pump can be fully submerged, but is also designed to operate in partial immersion.)
If you need automatic pumping but do not have the space for a pendant float to move freely, the BPS-100EA is the go-to option. Its compact float makes it ideal for narrow sumps and even flat areas with minimal water depth, helping keep levels low. The float switch operates at very low levels, switching on at around 30 mm and off at around 3 mm, making it particularly useful for shallow pooling situations.
Ideal for:
Not recommended for ponds or water features.
Like the rest of the BPS range, the BPS-100EA uses a top discharge, water-cooled design suitable for tight access and partial immersion. It is built from durable thermoplastic materials and uses an open impeller with a mechanical seal arrangement designed for wear resistance. The compact float assembly is specifically chosen to reduce obstruction risk in tight spaces while maintaining dependable level control.
All APP water pumps are supplied with a 2‑year manufacturer’s warranty.
| Model | BPS 80 | BPS 80A | BPS 100 | BPS 100A | BPS 100EA | BPS 400 | BPS 400A | BPS 400A |
|---|---|---|---|---|---|---|---|---|
| Manual/ Auto | M | A | M | A | A | M | A | A |
| Outlet Size/ mm | 19 | 19 | 19 & 25 | 19 & 25 | 19 & 25 | 50 | 50 | 50 |
| Kw | 0.08 | 0.08 | 0.10 | 0.10 | 0.10 | 0.40 | 0.40 | 0.40 |
| Volt | 230 | 230 | 110/230 | 110/230 | 230 | 230 | 110 | 230 |
| Flow Ltr/min | 40 | 40 | 70 | 70 | 70 | 220 | 220 | 220 |
| Head/ m | 4 | 4 | 6.5 | 6.5 | 6 | 9 | 9 | 9 |
| Free Passage | 2 | 2 | 3 | 3 | 3 | 5 | 5 | 5 |
| W x L x H/ mm | 136x136x225 | 136x136x225 | 134x155x250 | 134x225x250 | 134x170x250 | 160x200x365 | 160x200x365 | 160x200x365 |
| Weight/ Kg | 1.95 | 2.2 | 2.5 | 2.8 | 2.10 | 7.35 | 7.50 | 7.50 |
Manual Pump - A pump that does not have a float control or pressure switch to start and stop. It will require an operator to control it.
Automatic Pump - A pump that has a float control or pressure switch to start and stop without an operator.
A float switch is a level controller that has a buoyant, water-tight device that lies
on a liquid, actuating a micro-switch when the level rises or falls, turning a pump on or off.
Layflat hose is very affordable but can kink. Depending on your use, you may be better using a reinforced suction delivery hose for your needs.
Suction delivery hose is ideal for pumping up stairs or over obstacles.
Jonathan Martin explains the differences to help you choose which hose is best for your scenario.
Each type of float switch has its advantages and is best suited for specific scenarios. The choice of float switch depends on factors such as the type of liquid, space constraints, required accuracy, and the pump's intended application.
