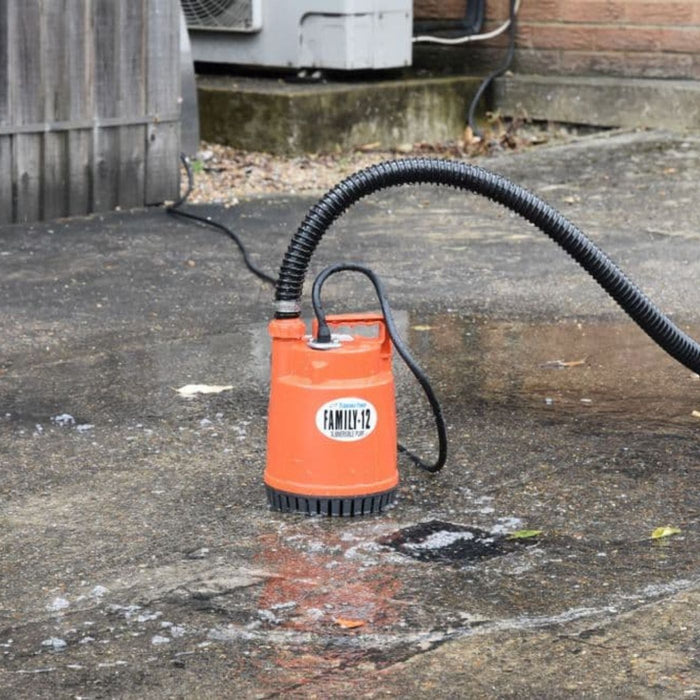

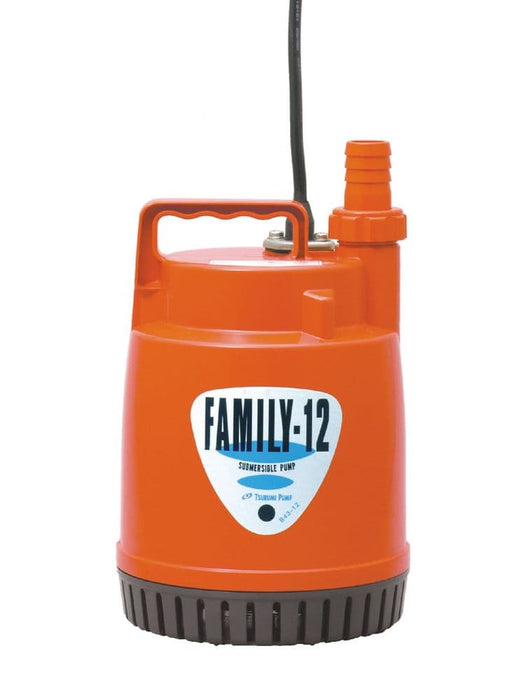

Family 12 Submersible Puddle Pump

Compact Submersible Puddle Pump That Drains Water Down to 1mm

The Tsurumi Family 12 is a submersible puddle pump designed for domestic and light industrial use where getting the last of the water out matters. Its top discharge design allows it to operate in very shallow water, and the included residue adaptor enables it to drain right down to 1mm. Compact, lightweight and simple to use plug in, switch on, and let it work.

What is the Tsurumi Family 12 used for?

•    Clearing standing water from basements and cellars after flooding
•    Dewatering utility rooms, plant rooms and crawl spaces
•    Pumping water from confined sumps and tight spaces where larger pumps will not fit
•    Domestic flood recovery and property water clearance
•    Light industrial applications requiring a small, portable puddle pump

Construction and Durability

The Family 12 is built around a top discharge design that allows the pump to continue operating as water levels drop very low. Pumped water flows between the outer casing and the motor, keeping the motor cool even in near-dry conditions. The pump incorporates Tsurumi's patented oil-bathed mechanical seal, which allows it to run dry for short periods without damage. An automatic motor cut-out is built in as standard: if the motor overheats or detects an over-current, it shuts off automatically before damage occurs and can be reset once cooled. At 157mm in diameter and 3.4kg, the Family 12 is small enough to fit where most puddle pumps cannot.

Why choose the Tsurumi Family 12?

Most standard puddle pumps drain to 25 to 30mm and stop there. The Family 12, with its residue adaptor fitted, takes that down to 1mm. For basement flooding, utility rooms or any confined space where clearing the last of the water is the whole point, that capability is the difference between a job done and a job almost done. Tsurumi's build quality, oil-bathed seal and automatic cut-out protection also mean this pump is reliable enough for repeated use, not just a single emergency event.

Operational Details

•    Operation: manual (no float switch)  switch on and off as required

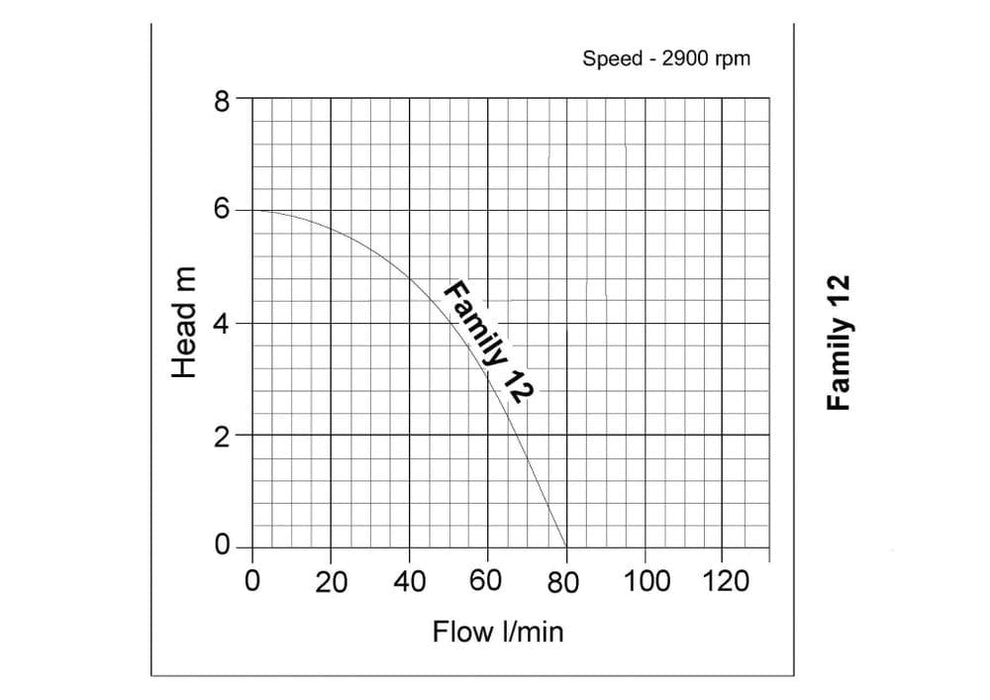

•    Maximum flow rate: 80 litres per minute
•    Maximum head: 6 metres
•    Minimum drain depth (standard): 12mm
•    Minimum drain depth (with residue adaptor fitted): 1mm
•    Free Passage: 6mm
•    Diameter: 157mm
•    Height: 224mm
•    Weight: 3.4kg
•    Power supply: 230V, 50Hz
•    Power cable: 10 metres with 3-pin UK plug
•    Outlet: 1 inch threaded (25mm)
•    Not suitable for pools, water features, sewage or chemically contaminated water

What's in the box

•    Tsurumi Family 12 puddle pump
•    1 inch (25mm) hose tail
•    15mm hose tail adaptor
•    Residue adaptor (enables 1mm drain-down)
•    10 metre power cable with 3-pin UK plug
