WHY IT WORKS

Built for the job

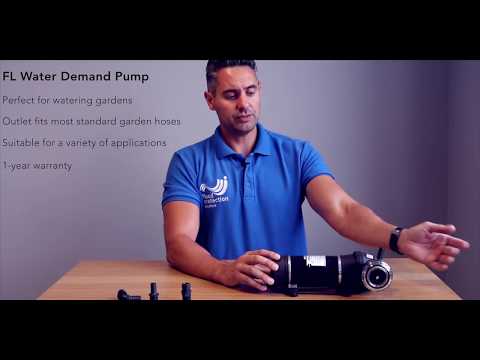

Multi-Use FL On-Demand Water Pump

FL on-demand water pump delivers reliable, automatic water pressure for domestic and light commercial systems. Activating only when flow is required, it improves efficiency, reduces energy use, and protects pipework. Compact, quiet and easy to install, it’s ideal for boosting pressure from tanks and rainwater systems and ideal for water transfer.

The ideal pump for watering your garden & automotive water supply

The FL pumps come with a 13mm inlet and outlet and two 13mm hose tails, so you can run a hose from the outlet and water your garden without using a tap. The ½ inch male BSP connector and filter supplied fit on the inlet side only.

The FL On-Demand Water Pumps are available with different voltages, including:

  • 12v DC
  • 24v DC
  • 110v
  • 230v

Applications

The FL range of automatic on-demand pumps are ideal for a wide range of applications such as watering gardens, caravan water supply, chemical transfer, spraying, bowsers, pole window cleaning, car wash systems, dust suppression or vehicle mounted sprayers, automotive systems, showers, washing etc.

Design and Performance

The FL On-Demand Water Pump is a quiet running, compact, automatic diaphragm pump that delivers up to 17 litres/minute flow at 3.0 bar pressure. The pump will switch on and off when a valve, tap or hose attachment is either closed or opened.

The pumps are diaphragm pumps and thus do not require priming. They can run dry without damage. The pump can be mounted horizontally or vertically.

The maximum suction lift is 2m and they are able to handle fluids that are up to 54 degrees centigrade. Each model includes a pre-filter as a back up safety device to prevent solid particles from entering the pump and damaging the diaphragm.

The motors have a 90% duty cycle during an operating period of 4.5 hours. Not to be turned off/on for than 15 times in a 60 minute period.

The FL is designed for short, on-demand bursts of water rather than non-stop running. Across a typical working session of around 4 to 5 hours, the motor should be resting for roughly 10% of that time in total, made up of natural gaps between uses. There is also a limit of 15 starts per hour, marked on the motor itself. Staying within these limits protects the motor and keeps your guarantee valid.

Technical Specifications

Flow Rate: 17 litres per minute – sufficient for high-demand uses such as hoses, showers, or multiple taps at once.

Pressure: 3.0 bar maximum (approx 43 psi) shut-off pressure. The built-in pressure switch will turn the pump off at around this pressure.

Outlet/Inlet Size: 13 mm diameter ports. Comes with two 13 mm hose tails, plus a ½″ male BSP connector and a filter, which fit on the inlet side only.

Priming/Suction Lift: Self-priming up to 2 m vertical lift. You can place the pump up to 2 m above the water source level. For best results, keep it as close to the source as possible

Dimensions & Weight: Approx 75 mm × 280 mm (diameter × length). Weight around 2.5 kg dry. It’s compact enough for mobile use in caravans, vans & boats. Cable length is approx 195cms

Water type: This pump is intended for clean (particle-free) water. If using pond, river, or rainwater, ensure the intake filter is attached and consider an additional pre-filter or sediment filter to prevent clogging. Avoid pumping muddy water, thick liquids, or fluids with large debris which could damage the diaphragm.

Please note: this is a surface pump and is not submersible, it must not get wet.

What's in the box:

  • 1x FL Pump
  • 2x 13mm Hose tails
  • 1 x 1/2" mBSP Connector
  • 1x Filter
SPECIFICATIONS

Full spec sheet

FL Demand specifications
ModelFL 40FL 41FL 43
Inlet/ mm131313
Outlet/ mm13mm & 1/2" mBSP13mm & 1/2" mBSP13mm & 1/2" mBSP
Volt12DC & 24DC110230
Check Valve (Material)EPDMEPDMEPDM
Diaphram (material)SantopreneSantopreneSantoprene
Max Pressure / Bar333
Flow Rate/ min171717
Dia x L/ mm75 x 28075 x 28075 x 280
Weight /Kg2.52.52.5

Common questions

Can the FL pump dirty water or pond water?

No, the FL is for clean, particle-free water up to 54°C. It is a diaphragm surface pump, not submersible, and must not get wet. Avoid muddy water, thick liquids or debris, which can damage the diaphragm. For rainwater, pond or river water, keep the intake filter fitted and add a further sediment filter. It can be used for some chemical transfer if the liquid suits its materials.

How does the FL on-demand pump switch on and off?

Automatically. A built-in pressure switch starts the pump when you open a tap, valve or hose gun and stops it when you close it, shutting off at around 3.0 bar. It is designed for intermittent use, so it should not be started more than 15 times in an hour.

What flow and pressure does the FL pump give?

The FL delivers up to 17 litres per minute and a maximum pressure of 3.0 bar (about 43 psi). That suits a hose, a shower, washing or spraying. It can lift "suck" water up to 2 metres from the source, but for good results place it as close to the water as possible.

Does the FL pump need priming and can it run dry?

No priming is needed, as the FL is self-priming up to 2 metres of suction lift, and it can run dry without damage. Keep the discharge open when first starting so trapped air can escape. Mount it horizontally or vertically in a dry, ventilated place out of sun, spray and frost. It measures about 75mm by 280mm and weighs about 2.5kg.

What hose and fittings do I need for the FL pump?

The box includes two 13mm hose tails, a ½-inch male BSP connector and a filter, which must go on the inlet. For the suction side, use at least 50cm of 13mm hose that will not collapse, such as braided suction hose. If you fit a foot valve, its opening pressure must not exceed 0.14 bar.

See: Braided Suction Hose 13mm Outlet
