Honda WX10 Petrol Water Pump | Lightweight 1 Inch Pump
Built for the job
Honda WX10 Petrol Water Pump | Lightweight 1 Inch Transfer Pump
The Honda WX10 is the lightest pump in Honda's petrol range, a compact 1 inch water pump weighing just 6.1kg that one person can carry in one hand. Powered by Honda's 4-stroke GX25 mini engine, it moves up to 140 litres per minute with no two-stroke fuel mixing, making it the ideal grab-and-go pump.
The Honda WX10 is a lightweight, compact engine driven pump designed for clean water transfer, drainage, irrigation, dust suppression and flood defence applications.
What the Honda WX10 is used for
- Emptying water butts, ponds, small tanks and containers
- Light garden and allotment irrigation
- Water transfer
- Clearing small amounts of clean or lightly debris-laden water where portability matters most
Buy the WX10 as a kit
A petrol pump needs two different hoses, and the wrong one on the suction side will not work at all.
The Petrol Water Transfer Pump Kit supplies both: 6m of 25mm reinforced hose for the suction, which holds its shape against the vacuum, and 10m of 25mm layflat for the deliverys. That is 113 litres a minute through the kit, with no power supply needed. View the WX10 kit ›
Key features
- Honda GX25 4-stroke engine: easy starting, fuel efficient, no petrol and oil mixing
- Ultra-light at 6.1kg, with an integral carry handle for one-handed transport
- 360 degree operation: the engine can run, and the pump be stored, at any incline
- 1 inch (25mm) suction and discharge ports
- Suction strainer passes small suspended solids while protecting the impeller
Performance
- Maximum discharge: 140 L/min
- Maximum total head: 36m
- Maximum recommended suction lift: 6m
- Engine: Honda GX25, 25cc
- Dry weight: 6.1kg
- Power: 1.5hp / 0.72kW
The WX10 features a rotary slinger engine lubrication system, helping to protect the engine from inadequate lubrication when the pump is being used at an angle. It also includes an easy-carry handle and rubber feet on the base plate to help reduce vibration and engine noise during operation.
The pump has a 0.55 litre fuel tank and an approximate operating time of 1 hour 20 minutes, depending on conditions. Oil capacity is 0.1 litres. Noise levels are rated at 86dB(A) at the workstation, with a guaranteed sound power level of 102dB(A).
Despite its compact size, the WX10 is capable of achieving a high head, making it well suited to irrigation and dust suppression where water needs to be moved over distance or lifted to a higher level. Its low weight and portable design also make it useful for general drainage, water transfer, site use and emergency flood response.
Optional: Residue Pumping Kit
On a flat floor, this pump on its standard strainer will leave you a few inches of standing water. The residue pumping kit takes it down to 3 mm.
It swaps the strainer for a 140 mm wide floor tool on a 4 m suction hose, and the tool can be lifted and moved from puddle to puddle with the engine still running, so you are not stopping and re-priming at every one.
Fits the 25 mm models only: Honda WX10, Tsurumi TEM-25H and Tsurumi TE2-25H.
Which Honda pump do you need?
The WX10 is the lightweight transfer pump. If you need higher volumes for site, farm or flood work, step up to the 2 inch Honda WB20 or the 3 inch Honda WB30. See the full comparison below.
Honda WX10 vs WB20 vs WB30
All three are Honda 4-stroke petrol water pumps. The right one depends on how much water you need to move and how far you need to lift it.
- Honda WX10: 1 inch, up to 140 L/min, 36m head, 6.1kg. Lightweight transfer around the home and garden.
- Honda WB20: 2 inch, up to 620 L/min, 32m head, 21kg. The general-purpose site, farm and flood standard, and the choice when you need more flow.
- Honda WB30: 3 inch, up to 1,100 L/min, 23m head, 26kg. The high-volume choice for large dewatering and flood, when you need maximum flow.
What’s in the box
1 × Honda WX10 petrol water pump
1 × Set of hose couplings
Washers, clips and strainer
1 Year Honda Warranty
Please note: hoses are not included and must be purchased separately.

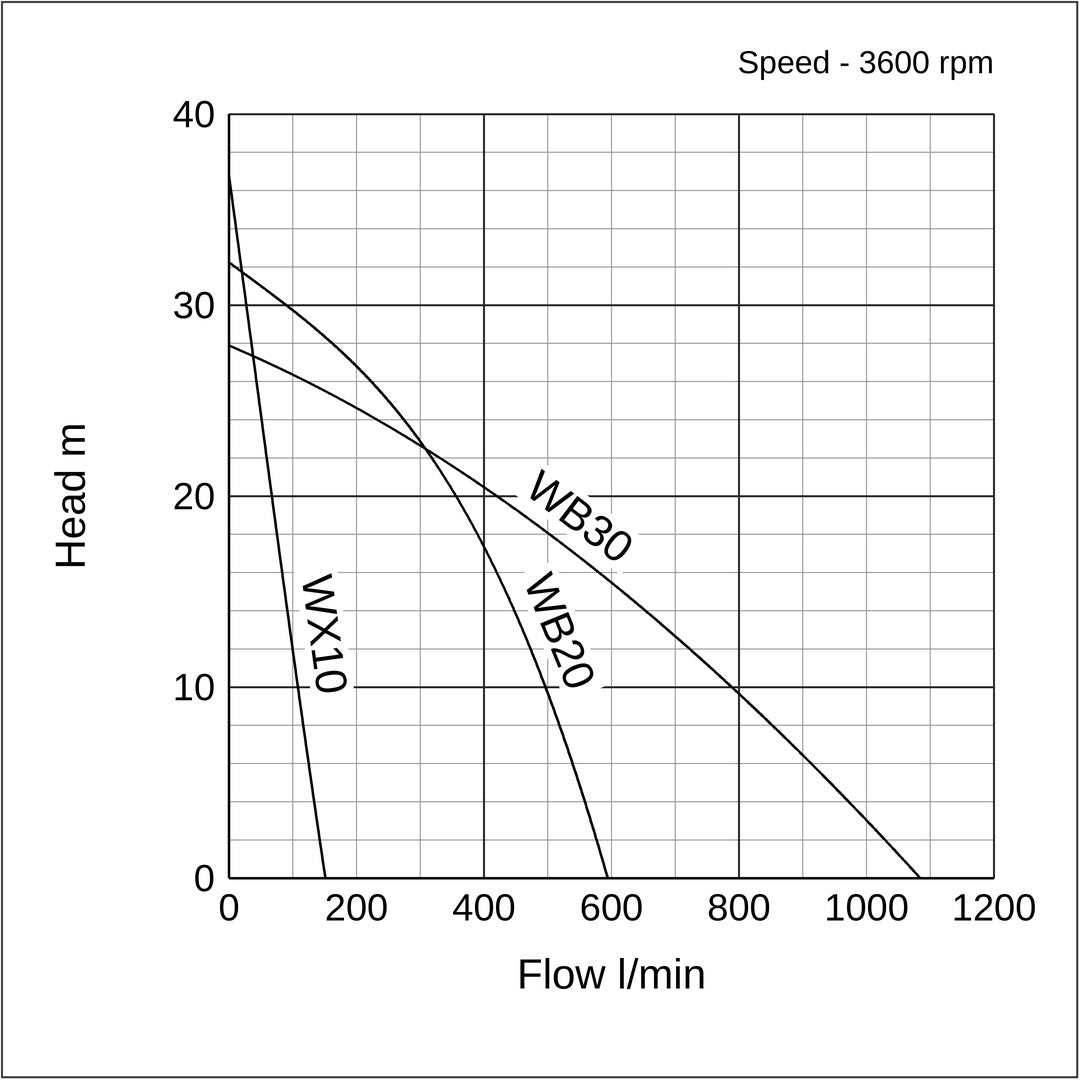

Full spec sheet
| Model | WX10 | WB20 | WB30 |
| Inlet | 25mm (1") | 50mm (2") | 80mm (3") |
| Outlet | 25mm (1") | 50mm (2") | 80mm (3") |
| Engine | GX25 | GX120 | GX160 |
| Fuel | Petrol | Petrol | Petrol |
| Oil Alert | No | Yes | Yes |
| HP | 1.5 | 4 | 5.5 |
| Flow ltr/min | 140 | 620 | 1100 |
| Head /m | 36 | 32 | 28 |
| Free Passage | 5 | 6 | 6 |
| W x L x H /mm | 220 x 325 x 300 | 365 x 455 x 420 | 385 x 510 x 455 |
| Weight /Kg | 6 | 21 | 26 |
