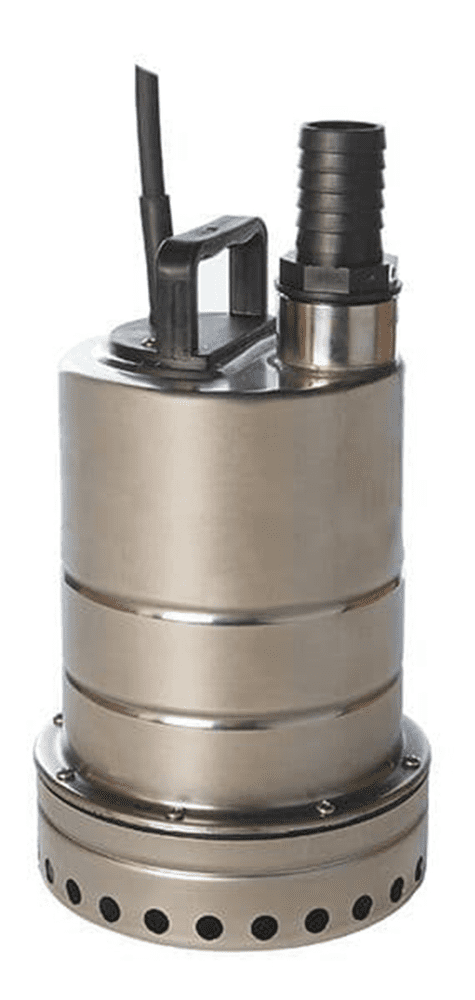

The Mizar series is manufactured from high-grade 304 stainless steel, giving each pump excellent corrosion resistance and long-term durability. Designed for processing, industrial use, and final effluent, these pumps handle both clean and dirty water. They perform well in challenging environments and are trusted in both domestic and light industrial applications.
Fluid: Clean water | Dirty water & large soft solids (VOX) | Mild corrosive liquids * | Temp: 0 - 35°C
Application: Industry | Domestic | Processing | Sumps | Septic tanks | Final effluent

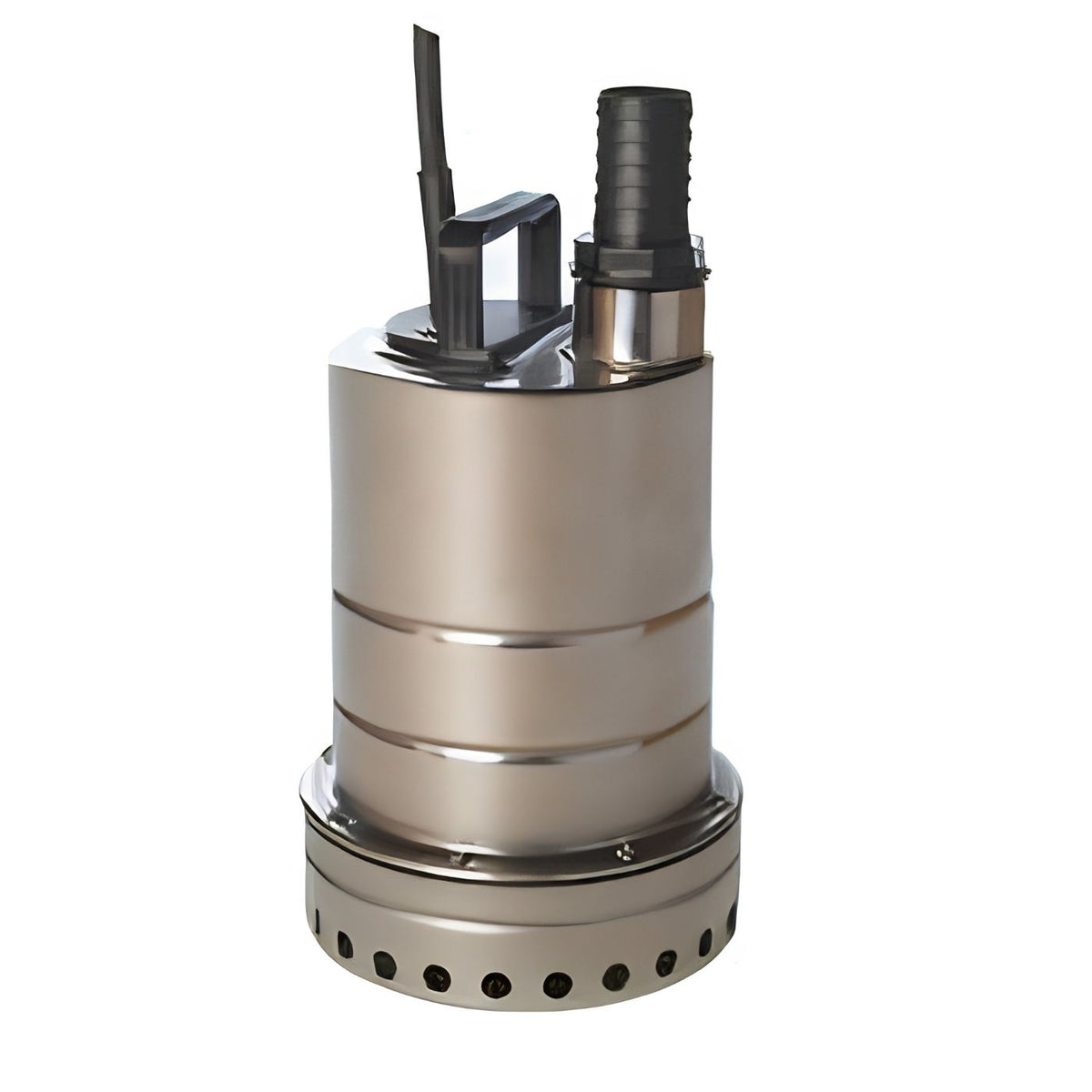

The range includes the Mizar 30, Mizar 60, and Mizar Vox.
A top-outlet design allows effective cooling of the motor, making the Mizar pumps ideal where space is restricted. They can operate fully or partially submerged, and will even tolerate short periods of dry running.
Recommended liquid temperatures are up to 35°C when fully submerged and up to 25°C when partially submerged.
Every pump in the Mizar series is designed for long service life.
Key construction features include:
The Mizar 30 delivers around 150 litres/min with 8m head, while the Mizar 60 produces approximately 175 litres/min with 10m head, the VOX produces circa 175 litres/min with 7m head. All pumps come with a 32mm outlet (hose tail is sold separately) and a 10m heavy-duty rubber power cable as standard.
You can choose between:

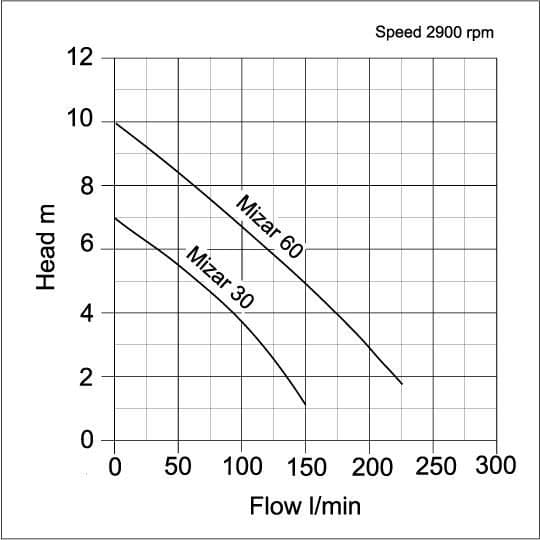

Automatic versions feature a pendant float switch with approximate switching levels of 220mm (on) and 90mm (off). See image chart for details.
110V models are designed for building sites and commercial environments where reduced-voltage equipment is required for safety, while 230V models are intended for standard domestic and industrial power supplies. 110V models are supplied without a plug.
This flexibility ensures you can match the pump precisely to your installation.
* The pump meets basic corrosion resistant standards, however additional mechanical or physical properties in the duty may also need to be considered to achieve the overall service performance required.
Please note: a 32 mm hose tail is sold separately, and 110V models are supplied without a plug.
Draining a pool or a hot tub needs hose, and quite a lot of it.
The Swimming Pool Draining Pump Kit is this same Mizar 60 supplied with the hose, tail and clip made up ready to drop in, so the water goes where you want it rather than across the patio. One order instead of three, and nothing else to work out. View the kit ›
| Model | Mizar 30 | Mizar 30 | Mizar 30 | Mizar 30 | Mizar 60 | Mizar 60 | Mizar 60 | Mizar 60 | Mizar VOX | Mizar VOX | Mizar VOX | Mizar VOX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manual/ Auto | M | A | M | A | M | A | M | A | M | A | M | A |
| Outlet/ mm | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Kw | 0.25 | 0.25 | 0.25 | 0.25 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
| Volt | 110 | 110 | 230 | 230 | 110 | 230 | 230 | 110 | 110 | 110 | 230 | 230 |
| Flow ltr/min | 150 | 150 | 150 | 150 | 175 | 175 | 175 | 175 | 175 | 175 | 175 | 175 |
| Head /m | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 7 | 7 | 7 | 7 |
| Free Passage | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 20 | 20 | 20 | 20 |
| W x L x H /mm | ⌀154x234 | ⌀154x234 | ⌀154x234 | ⌀154x234 | ⌀154x234 | ⌀154x234 | ⌀154x234 | ⌀154x234 | ⌀154x264 | ⌀154x264 | ⌀154x264 | ⌀154x264 |
| Weight /Kg | 4.9 | 5.2 | 4.9 | 5.2 | 5.6 | 5.8 | 5.6 | 5.8 | 5.9 | 6.1 | 5.9 | 6.1 |
Manual Pump - A pump that does not have a float control or pressure switch to start and stop. It will require an operator to control it.
Automatic Pump - A pump that has a float control or pressure switch to start and stop without an operator.
A float switch is a level controller that has a buoyant, water-tight device that lies
on a liquid, actuating a micro-switch when the level rises or falls, turning a pump on or off.
