Umbra Pompe Floating Suction Set for Acuasystem 2AL Rainwater Pump

Name: Umbra Pompe Floating Suction Set for Acuasystem 2AL Rainwater Pump
Brand: Umbra Pompe
SKU: 12-85-1035
Price: 46.80 GBP
Availability: InStock

Be the first to review

£46.80 £39.00 (Exc VAT)

In stock · Ready to Ship

Order by 2pm Monday to Friday for same day dispatch.

Competitive pump prices

Secure Checkout

UK Stock & Dispatch

Engineer-Selected

WHY IT WORKS

Built for the job

Umbra Pompe Acuasystem 2AL Floating Suction Set

For Clean Water Systems and Tank Installations

Designed for use with the Acuasystem 2AL, a multi-stage pump designed specifically for rainwater harvesting and clean water systems.

Floating suction set

For submersible use, the floating suction set can be fitted to the Acuasystem Rainwater Pump.

This allows the pump to:

Draw water from just below the surface
Avoid sediment and debris at the bottom of the tank
Deliver cleaner water into the system

This is particularly important for rainwater harvesting systems.

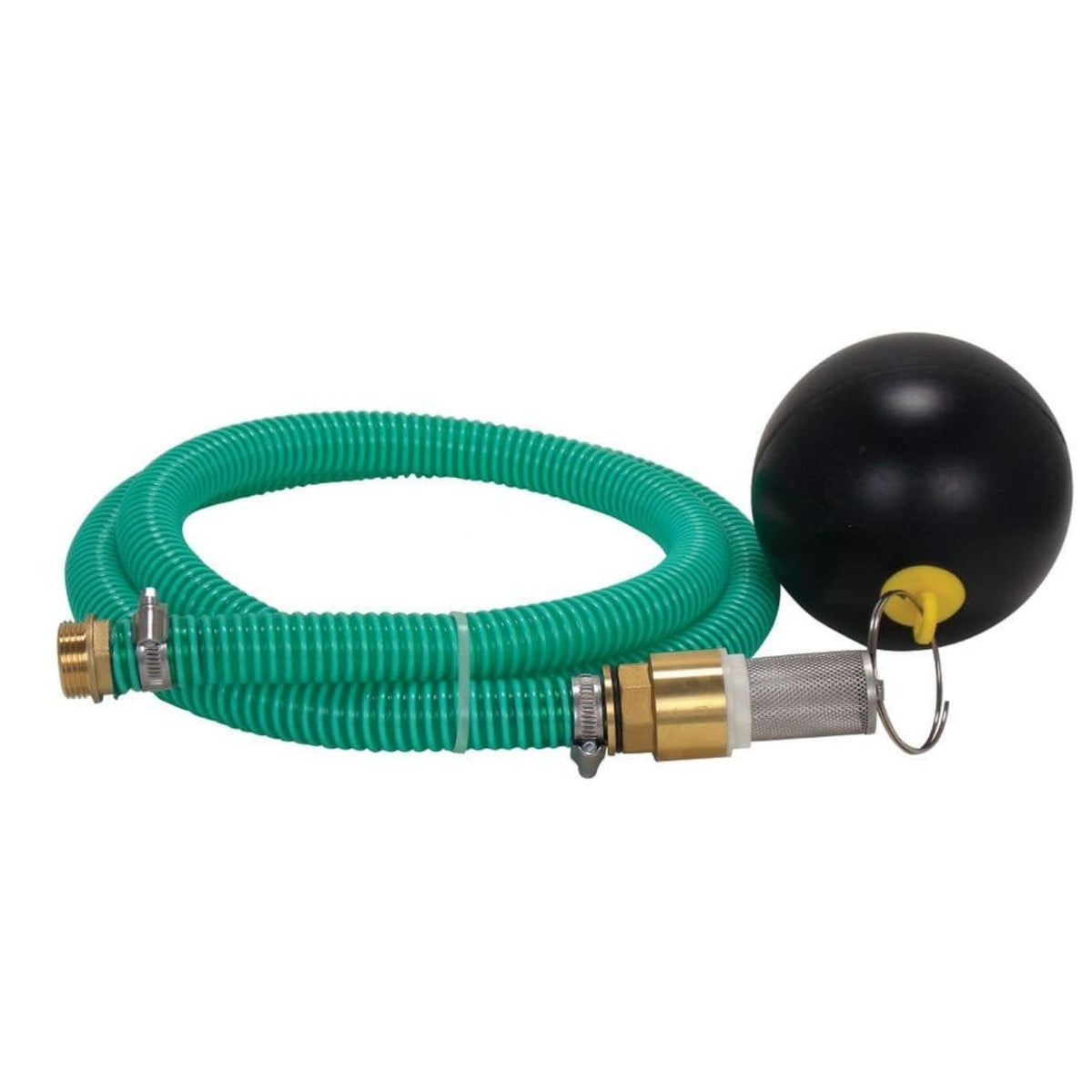

The suction set features a brass foot valve with an integrated strainer, kept just below the water surface by a stainless steel split ring and a durable ABS float. It is rated for 6 bar and supplied with 2 metres of 25mm hose.

What’s in the box

✅ Umbra Pompe Floating Suction Set (6 bar), part number 12-85-1035
✅ 2 metres of 25mm hose

SPECIFICATIONS

Full spec sheet

2AL specifications
Model	2AL 30	2AL 30 A	2AL 60	2AL 60 A	2AL 80	2AL 80 A	2AL 150	2AL 150 A	2AL 170	2AL 170 A
Manual/ Auto	M	A	M	A	M	A	M	A	M	A
Outlet/ mm	25	25	25	25	25	25	25	25	25	25
Kw	0.55	0.55	0.75	0.75	1.20	1.20	0.75	0.75	1.20	1.20
Volt	230	230	230	230	230	230	230	230	230	230
Flow ltr/min	90	90	90	90	90	90	130	130	130	130
Head /m	33	33	55	55	75	75	45	45	65	65
Diam x H /mm	190 x 528	190 x 528	190 x 607	190 x 607	190 x 727	190 x 727	190 x 607	190 x 607	190 x 727	190 x 727
Weight /Kg	12	12.3	13	13.3	15	15.3	13.1	13.4	15.1	15.4
