Arven Mizar 60/S 316 Stainless Chemical & Seawater Pump | 10mm Solids

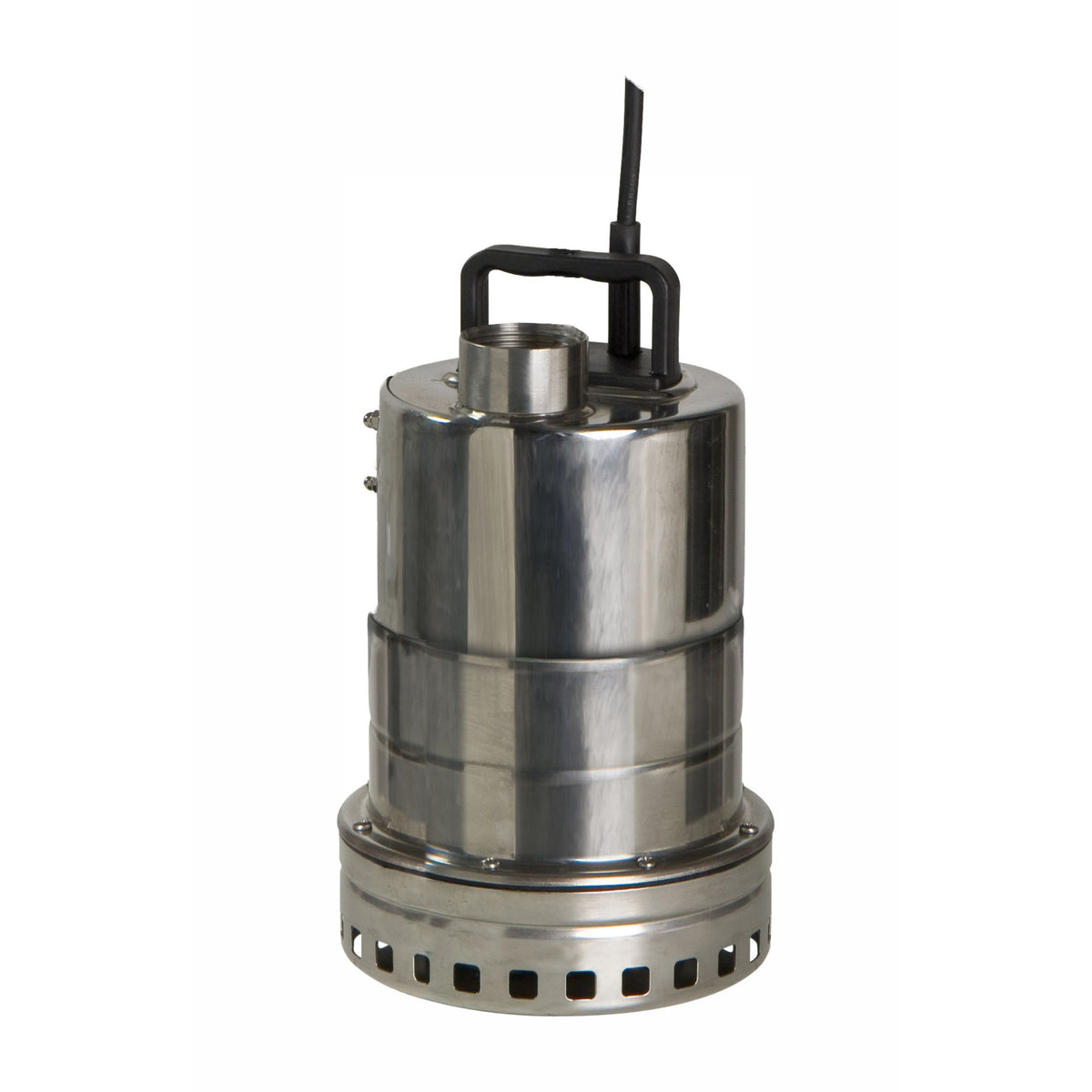

Mizar 60/S – 316 Stainless Steel Submersible Pumps

The Mizar 60/S is a heavy-duty submersible pump manufactured from upgraded 316 stainless steel for superior corrosion and chemical resistance.

Designed for seawater, saltwater, light chemicals, and final effluent, they offer robust performance in demanding industrial environments. The Mizar 60/S handles soft solids up to 10 mm and features biodegradable lubrication oil for environmental protection.

Difference Between Mizar and Mizar S Models

The key difference between the Mizar and Mizar S submersible pumps is their material construction and level of chemical resistance. The standard Mizar is manufactured from 304‑grade stainless steel and is intended for domestic and light industrial dirty water applications. In contrast, the Mizar S features 316‑grade stainless steel, offering significantly enhanced corrosion resistance and making it suitable for chemicals, seawater and sewage.

Mizar 60/S or Arvex/S?

Both are 316 stainless steel pumps with the same chemical and seawater corrosion resistance. Choose the Mizar 60/S for drainage, transfer and seawater duties with solids up to 10mm. Choose the Arvex/S, with its vortex impeller, where the liquid carries larger or fibrous solids. For general clean and dirty water where chemical resistance is not needed, the 304 stainless Mizar and Mizar VOX range is the lower-cost choice.

Not recommended for ponds or water features.

Mizar models feature upgraded sealing components, including silicon carbide mechanical seals, providing improved resistance to aggressive or lightly corrosive liquids.

Build and Design

Constructed for long service life using 316 stainless steel throughout the key components.

Mizar 60/S Design Features

• Water-cooled top discharge design
• Ideal where installation space is restricted
• Capable of operating partially submerged
• Tolerates short periods of dry running

Key Features

• 316 stainless steel pump body
• Silicon carbide mechanical seal
• Viton elastomers for improved chemical compatibility
• Biodegradable vegetable-oil hydraulic fluid for lubrication
• Supplied with 10 m heavy-duty power cable
• Available in manual or automatic (pendant float switch) versions, depending on model
• Suitable for seawater, saltwater, and light chemical applications
• Maximum liquid temperature 35°C

Performance and Specifications

Mizar 60/S

• Construction: 316 stainless steel and Viton Rubber
• Voltage options: 110V or 230V
• Operation: Manual or automatic
• Maximum head: Approx. 10 m
• Solids handling: Up to 10 mm

Important Notes

• Suitable for industrial, chemical, effluent, seawater, and saltwater applications
• Not suitable for ponds or decorative water features
• Designed for installations requiring high corrosion resistance
• Mizar models are suited to restricted-space applications
• Arvex models are ideal where larger solids or fibrous material are expected
• Covered by a 1-year warranty
• 32 mm hose tail is sold separately
• 110V models are supplied without a plug.

What’s in the Box?

• ✅ 1 × Mizar 60/S Pump
• ✅ 10 m heavy-duty power cable

Please note: a 32 mm hose tail is sold separately, and 110V models are supplied without a plug.
