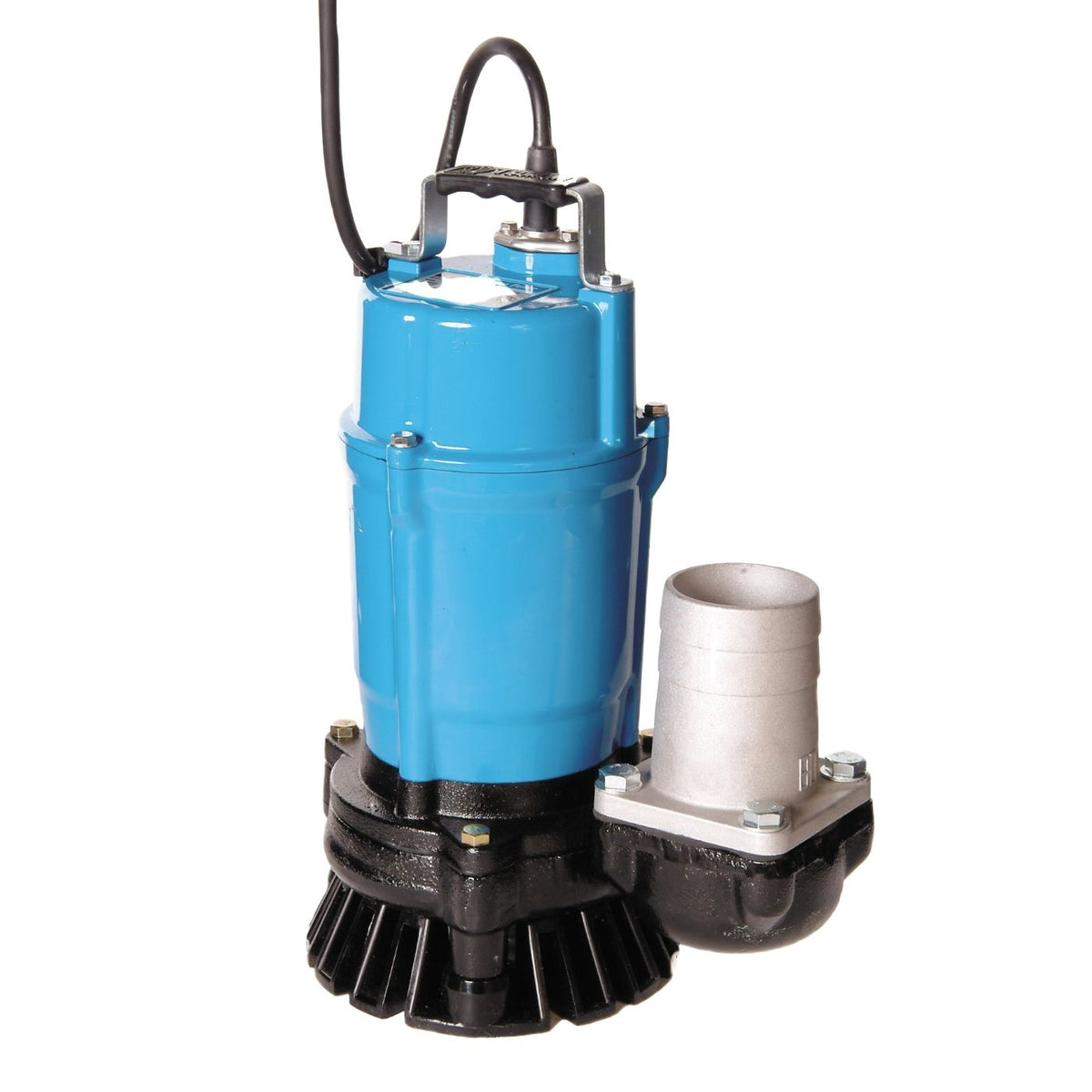

Blue and black submersible site pump on a white background

1 / 8

Tsurumi HS2.75S Submersible Site Drainage Pump | High-Head 2 Inch, 230 L/min

Name: Tsurumi HS2.75S Submersible Site Drainage Pump | High-Head 2 Inch, 230 L/min
Brand: Tsurumi
SKU: 10-10-1020
Price: 719.00 GBP
Availability: InStock

Be the first to review

£719.00 £599.17 (Exc VAT)

In stock · Ready to Ship

Order by 2pm Monday to Friday for same day dispatch.

Competitive pump prices

Secure Checkout

UK Stock & Dispatch

Engineer-Led

WHY IT WORKS

Built for the job

Tsurumi HS2.75S Submersible Site Drainage Pump | High-Head 2 Inch

The Tsurumi HS2.75S takes the same 2 inch (50mm) outlet as the HS2.4S but steps up to a 750W motor and 18m of head, making it the high-head choice in the HS range. When you need to push water further across a site, higher up out of a deep excavation, or over a long hose run through a 2 inch line, the HS2.75S delivers up to 230 litres per minute with the head to back it up.

Built to last in demanding environments

The HS2.75S shares the HS range's rugged build: a ductile iron pump casing, cast aluminium motor frame and head cover, a wear-resistant urethane semi-vortex impeller, a 410S stainless steel shaft, a PVC strainer base and a double mechanical seal. A 7mm free passage handles dirty water with silt, sand and suspended solids.

Oil lifter for longer seal life

As a 750W model, the HS2.75S features Tsurumi's oil lifter system, which keeps the shaft seal continuously lubricated even when the pump runs at a low water level or partially submerged, extending seal and pump life on demanding, long-running jobs.

Manual or automatic

Available as a manual pump or with an automatic pendant float switch in a waterproof, ball-bearing actuated housing. The HS2.75S automatic switches on at approximately 430mm and off at approximately 50mm.

Performance

Maximum flow: 230 L/min
Maximum head: 18m
Outlet: 2 inch (50mm)
Motor: 750W, 110V or 230V
Free passage: 7mm
Dry weight: 16.9kg (manual)

Supplied with a 10m heavy-duty cable and hose tail, and backed by Tsurumi's 3-year warranty.

Which HS pump do you need?

The HS2.75S is the high-head 2 inch model, best where you need lift and pressure through a 2 inch line. For a lighter, compact pump (and the puddle pump adaptor option), see the Tsurumi HS2.4S. For higher flow through a 3 inch outlet at the same head, see the Tsurumi HS3.75S. Full comparison below.

Tsurumi HS2.4S vs HS2.75S vs HS3.75S

All three share the same rugged HS build, urethane semi-vortex impeller and 7mm free passage. The right one depends on flow, head and outlet size.

HS2.4S: 2 inch, 205 L/min, 12m head, 400W, 11.3kg. The compact, lightest model, and the only one that takes the puddle pump adaptor.
HS2.75S: 2 inch, 230 L/min, 18m head, 750W. Same 2 inch outlet, more head for higher or longer pumping.
HS3.75S: 3 inch, 310 L/min, 18m head, 750W. The 80mm outlet moves the most water with the least friction loss.

What’s in the Box?

✅ 1x HS2.75S Pump
✅ 1x 10m Heavy-duty rubber power cable
✅ 1x Hose tail

SPECIFICATIONS

Full spec sheet

HS specifications
Model	HS2.4S	HS2.4S A	HS2.75S	HS2.75S A	HS3.75S	HS3.75S A
Manual/ Auto	M	A	M	A	M	A
Outlet/ mm	50	50	50	50	80	80
Kw	0.40	0.40	0.75	0.75	0.75	0.75
Volt	110/230	110/230	110/230	110/230	110/230	110/230
Flow ltr/min	205	205	230	230	310	310
Head /m	12	12	18	18	18	18
Free Passage	7	7	7	7	7	7
W x L x H /mm	185 x 241 x 328	185 x 241 x 328	185 x 290 x 385	185 x 290 x 385	185 x 290 x 385	185 x 290 x 385
Weight /Kg	11.3	11.7	16.9	17.3	16.9	17.3

Common questions

Can the Tsurumi HS2.75S pump dirty water or sewage?

It pumps dirty site water, not sewage. The HS2.75S is built for rainwater, groundwater and sand-carrying water, with a 7mm free passage for silt, sand and suspended solids and a water temperature range of 0 to 40°C. Its urethane impeller and stirrer resist wear and blockage. It is not designed for sewage, toilet waste, stringy or fibrous solids, or flammable liquids.

When does the automatic HS2.75S switch on and off?

The automatic HS2.75S uses a Pendant float switch that switches on at about 430mm and off at about 50mm. The float sits in a waterproof case with a ball-bearing switch, and its cable is clamped to the pump with a little adjustment to alter those levels. The manual version runs until you switch it off.

How much water does the Tsurumi HS2.75S pump?

Up to 230 litres per minute, with a maximum head (vertical lift) of 18 metres, from a 750W motor. The extra head suits pumping out of deep excavations or over long hose runs through a 2 inch line. Real flow drops as lift rises and as hose length, bends and fittings add resistance, as maximum flow and head sit at opposite ends of the pump curve.

HS2.75S or HS3.75S: which should I buy?

Both have a 750W motor and 18 metres of head. Choose the HS2.75S if you work with 2 inch hose and fittings, at up to 230 litres per minute. Choose the HS3.75S for more volume, up to 310 litres per minute, through a 3 inch outlet that loses less flow to friction on long hose runs. The two weigh the same in manual form, 16.9kg.

See: Tsurumi HS3.75S Submersible Site Drainage Pump

What hose and fittings should I order with the HS2.75S?

Order 50mm (2 inch) hose and a matching clamp. The HS2.75S has a 2 inch outlet and comes with a hose tail, so it takes 50mm layflat for most discharge runs or 50mm suction and delivery hose where you need a rigid line. Add a hose clamp sized for your hose type.

See: Layflat Hose 50mm Outlet (2 inch)
