Before comparing manual and automatic flood pumps, it is worth clearing up what the terminology actually means.
A manual flood pump is not hand-cranked or manually powered. It is still an electric pump. In this context, “manual” simply describes how the pump is controlled: you switch the power on and the pump runs; you switch it off and the pump stops.
An automatic pump adds a float switch or water-level sensor so that the pump can start and stop in response to the presence of water.
This distinction is mainly relevant to submersible drainage and flood pumps, where the pump sits in the water being removed. A swimming pool circulation pump, for example, is normally just switched on or off, perhaps through a timer or other control system. It is not normally described as a manual pump because it is not waiting for the surrounding water level to operate a switch.
For flood pumping, however, the difference matters because it determines whether somebody needs to be present when the water arrives.
The quick answer: choose a manual submersible pump where somebody will normally be present to deploy and supervise it, particularly where removing water to a very shallow final level is important. Choose an automatic pump where water may arrive unattended, flooding is recurring, or delaying the start of pumping could allow a relatively small problem to become much larger.
What is a manual submersible flood pump?
A manual submersible pump normally runs whenever electrical power is supplied to it.
You position the pump in the water, connect the discharge hose, switch it on and supervise it while it pumps. Once the water has been removed, you switch the pump off.
For flood response, that simplicity can be a significant advantage.
There is no float switch needing space to rise and fall, which means some manual puddle pumps can operate in extremely shallow water.
The Stream SPP2 in our Small Flood Pump Kit, for example, can pump water down to approximately 2 mm. The manual Stream SPK530 used in our trade and hire configurations can pump down to approximately 1 mm.
That makes this type of pump particularly useful for clearing garages, basements, plant rooms and other areas after water has entered.
The trade-off is that somebody has to be there to switch the pump on and monitor it. A manual pump should not simply be left running indefinitely once the water has gone.
What is an automatic submersible pump?
An automatic submersible pump adds a method of detecting the water level.
Depending on the pump and application, this might be a tethered float switch, an integral or vertical float, electrodes, an electronic sensor or a separate floor-level sensor.
When water reaches the required level, the control starts the pump. Once the water falls to the defined stopping level, it switches the pump off again.
That sounds like a relatively small difference, but for flood protection it can completely change what the pump is capable of doing.
A manual pump helps you respond to flooding.
An automatic pump can potentially begin responding before anybody notices the flooding is happening.
Why the type of automatic control matters
Not all automatic pumps can respond to shallow water.

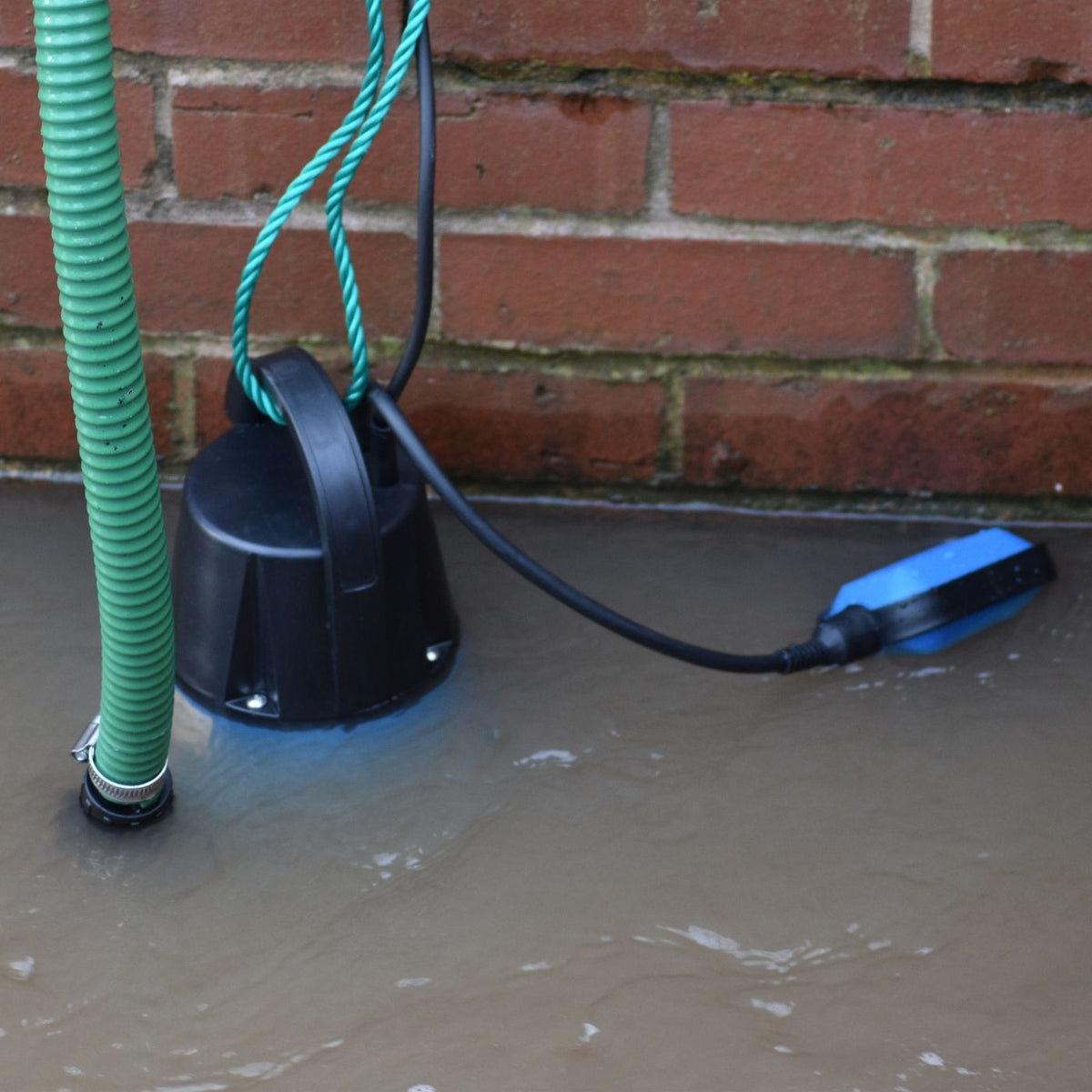

A conventional tethered float switch needs physical space in which to move. As the water rises, the float rises with it until it reaches its switching position.
That arrangement works extremely well in a sump chamber, drainage pit, tank or packaged pump station where the water is deliberately allowed to rise around the pump.
It is much less useful where the problem is perhaps 20 or 30 mm of water spreading across a garage, cellar or basement floor.
The water may spread over a large area without ever becoming deep enough to lift a conventional float into its operating position.
This is why the type of level sensor matters just as much as whether a pump is described as automatic.
Automatic low-level pumping

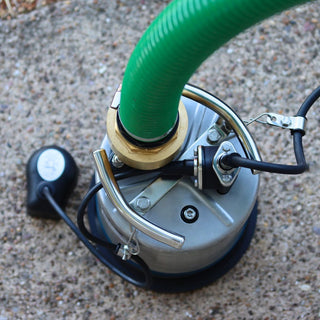

For shallow flood protection, a separate floor-level sensor can allow an automatic pump to react at a much lower water depth than a conventional float switch.
Our Automatic SPP2-4A Flood Pump Kit and SPK530A Automatic Pump Kit use low-level sensors that start the pump at around 20 mm of water and stop it at around 10 mm.
That makes them fundamentally different from a traditional automatic sump pump, which needs substantially more depth for its float to operate.
For a garage or basement where water can begin spreading across the floor before somebody sees it, those first few centimetres can be important.
The key trade-off: automatic protection versus the lowest final water level
There is an important compromise.
An automatic pump needs a defined stopping point. It therefore cannot simply continue pumping indefinitely as the water becomes shallower.
A manual puddle pump can continue operating while somebody is watching it and can often remove more of the final shallow layer of water.
So the choice is not simply that automatic is better than manual.
A manual puddle pump can be the better tool for clearing the last few millimetres of water after an incident.
An automatic low-level pump can be the better tool where the priority is preventing a relatively small amount of incoming water from becoming a much larger flood before anybody reacts.
If a room is at risk of filling overnight, preventing 20 mm of water from becoming 200 mm is likely to be considerably more important than whether the pump ultimately leaves 2 mm or 10 mm behind.
Garage, cellar or basement: manual or automatic?
For occasional flooding where somebody will normally be available to respond, a manual puddle pump can be a very practical solution.
Our SPP2 Small Flood Pump Kit is the lowest-cost option within our flood pump kit range. The pump has a maximum flow of 70 litres per minute, a maximum head of 6 m and can clear water down to approximately 2 mm.
The FPS Engineered™ kit adds either 6 m or 10 m of reinforced 25 mm discharge hose together with the required connection, so the components have already been selected to work together.
Where the same garage, cellar or basement floods repeatedly, particularly if water could arrive overnight or while the property is empty, automatic control becomes much more useful.
The SPP2-4A uses the same 70 litres per minute maximum-flow pump platform but adds low-level automatic control and a non-return valve.
At around a 2 m lift through the supplied 10 m discharge hose, expected operating flow is approximately 45 litres per minute.
The relevant question is therefore not simply which pump removes water fastest. It is whether somebody will actually be there to switch it on when the water starts arriving.
When is the SPK530A worth stepping up to?
The Stream SPK530A is a heavier-duty automatic low-level pump with a maximum flow of 170 litres per minute and a maximum head of 11 m.
Our kit is aimed particularly at commercial basements, plant rooms, service areas, lift pits and other situations where greater flow, greater lift or more robust pump construction is useful.
Through the supplied 10 m of 25 mm reinforced hose, expected performance is around 5,650 litres per hour at a representative 3 m lift.
The pump uses a polyurethane vortex impeller, cast aluminium body and cast iron casing, making it better suited to repeated use and the grit that can accumulate in service areas.
A larger pump is not automatically better, however. Pump selection should still consider the incoming flow, vertical lift, discharge hose length and diameter, available power supply and where the water is actually going to be discharged.
What if the flood water is dirty?
Manual versus automatic should not necessarily be the first question where the water contains substantial grit, silt or debris.
The first question is what the pump needs to pass.
Low-level puddle pumps achieve very shallow suction through an intake designed to collect water close to the floor. Dirty-water pumps generally achieve greater solids passage using larger clearances and a different hydraulic arrangement.
Those requirements naturally pull the pump design in different directions.
If the water is heavily silty or contains larger debris, a dirty-water or site pump may therefore be more appropriate even if it leaves a greater residual water depth.
In some circumstances a two-stage approach works well: use a dirty-water pump to remove the bulk of the flood water, then a puddle pump to clear the remaining shallow water.
Does an automatic pump have to be permanently installed?
No.
An automatic submersible pump can still be used as deployable flood-response equipment.
For example, an automatic low-level pump might be positioned in a vulnerable garage, basement or suitable external collection point before forecast heavy rainfall. If water reaches the sensor while nobody is present, the pump can start automatically.
Equally, a manual submersible pump can be left ready for use in a particular location, although somebody still needs to switch it on and supervise its operation.
A pump that is physically installed in one place is therefore not necessarily automatic, and an automatic pump does not necessarily have to form part of a permanently constructed pumping station.
When is a sump or packaged pump station better?
If water repeatedly drains towards the same location, simply positioning a portable pump on the floor may not be the best long-term solution.
A sump or packaged pump station creates a defined low point into which water can drain before being pumped away.
This can improve collection of the incoming water, protect the pump, allow greater storage between pumping cycles and provide enough water depth for a conventional float-controlled pump to operate reliably.
A properly designed system can also incorporate features such as dual pumps, high-level alarms, non-return valves and dedicated discharge pipework where the risk justifies them.
We have documented both a pumped surface-water drainage case study and a packaged pump station used for flood control.
Automatic does not mean maintenance-free
Automatic operation removes the need for somebody to physically switch the pump on every time the water rises. It does not remove the need to look after the system.
The level sensor or float needs to remain unobstructed, the pump inlet needs to stay clear, the electrical supply has to be available and the discharge hose or pipework must remain serviceable.
The discharge point matters too. There is little benefit in automatically pumping water away if the hose has become kinked, blocked or displaced, or if the water simply flows back towards the area being protected.
If an automatic pump forms part of your flood protection, test the complete system periodically and particularly before the wetter part of the year.
Which should you choose?
Think first about how the water arrives and what you need the pump to do.
If the main requirement is clearing shallow water after an incident and somebody will be there to operate the pump, a manual puddle pump is often the simplest and most effective option.
If water can arrive overnight, while a property is empty or before somebody is likely to notice, automatic low-level control can provide a significant advantage because pumping can begin without waiting for somebody to react.
For deeper sumps and drainage chambers, a conventional float-controlled automatic pump may be entirely appropriate. For shallow water spreading across a floor, the activation depth of the sensor becomes much more important.
For more significant or repeated flooding, pump selection should form part of the wider assessment of the incoming water, drainage route, discharge capacity, power supply and overall flood protection strategy.
